GA70-BLPVF (1988)
Toyota Supra

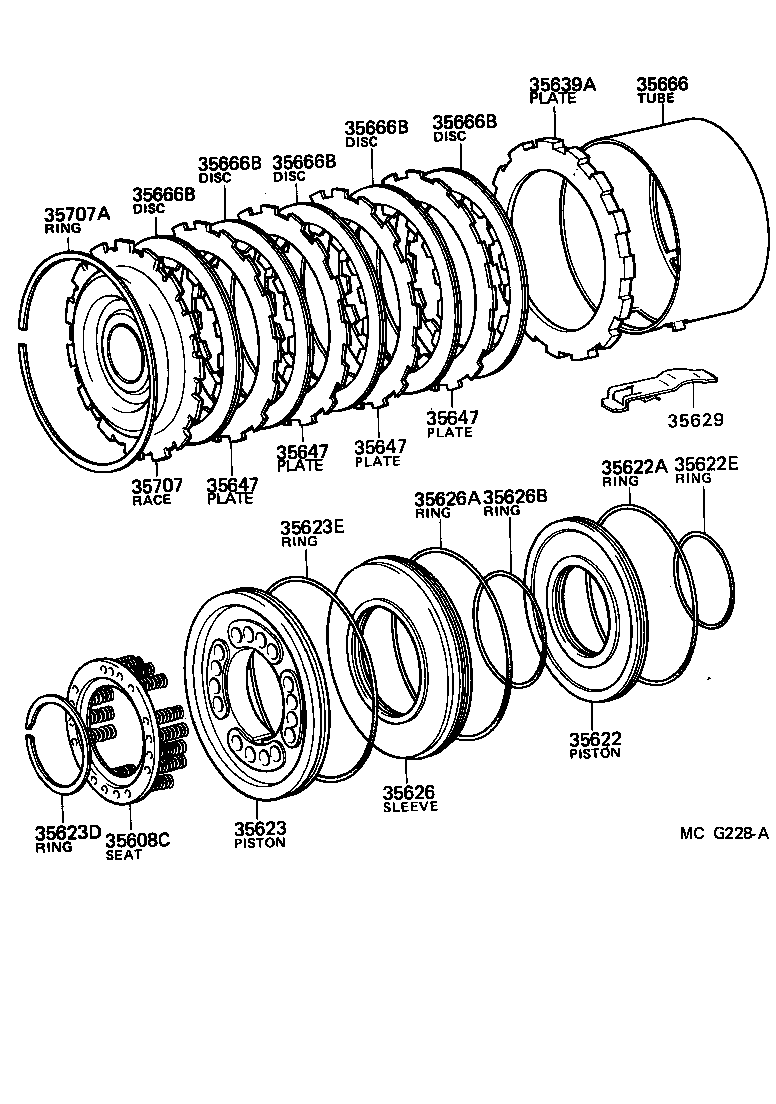

(8808-9008)4FC..G
A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
GA70..4FC..G |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
GA70..4FC..G |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
GA70..4FC..G |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-57188 |
GA70..4FC..G |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
GA70..4FC..G |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
GA70..4FC..G |
1 | ||
| 35623E - RING, O, NO.1 (FOR BRAKE PISTON) | ||||
| 90301-99192 |
GA70..4FC..G |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35626-22010 |
GA70..4FC..G |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
GA70..4FC..G |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GA70,JZA70,MA70..4FC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
GA70..4FC..G |
1 | ||
| 35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
GA70..4FC..G |
1 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GA70..4FC..G |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GA70..4FC..G |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GA70..4FC..G |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GA70..4FC..G |
4 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
GA70..4FC..G |
1 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
GA70..4FC..G |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
GA70..4FC..G |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
GA70..4FC..G |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
GA70..4FC..G |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
GA70..4FC..G |
5 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30020 |
GA70..4FC..G |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
GA70..4FC..G |
1 | ||

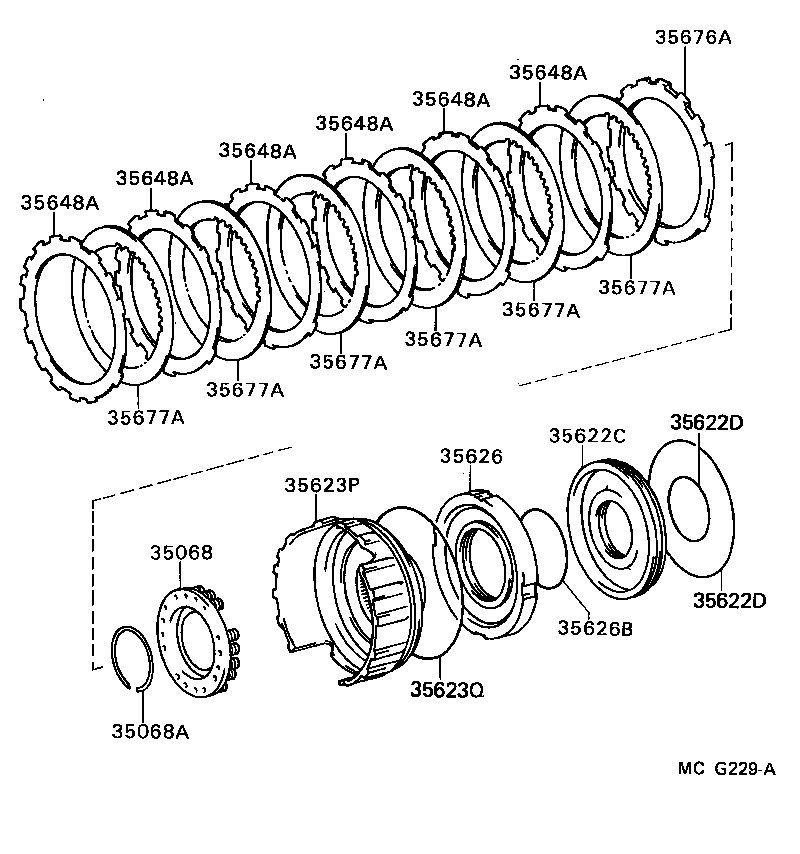

(8808- )4FC..GT,GTL,GTT,GTTR
A340E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30011 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35622C - PISTON, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35622-30010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-57188 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 内側 |
1 | ||
| 90301-99193 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 外側 |
1 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-57188 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 内側 |
1 | ||
| 90301-99193 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 外側 |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-35020 |
GA70..4FC..GT |
1 | ||
| 35623-35021 |
GA70..4FC..GT |
1 | ||
| 35623-35022 |
GA70..4FC..GT |
1 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99192 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35626-22010 |
GA70..4FC..G |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GA70,JZA70,MA70..4FC |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35648-30031 |
GA70..4FC..GT |
6 | ||
| 35648-30031 |
GA70..4FC..GT |
5 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-50040 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.4 |
1 | ||
| 35676-50060 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.0 |
1 | ||
| 35676-50050 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.2 |
1 | ||
| 35676-50030 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.6 |
1 | ||
| 35676-30030 |
GA70,MA70..4FC..(GT,GTL,GTT) 厚さ=4.0 |
1 | ||
| 35676-50020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.8 |
1 | ||
| 35676-50010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=5.0 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
GA70..4FC..GT |
5 | ||
