GA70-BLPVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
1GGEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9008)4FC..G

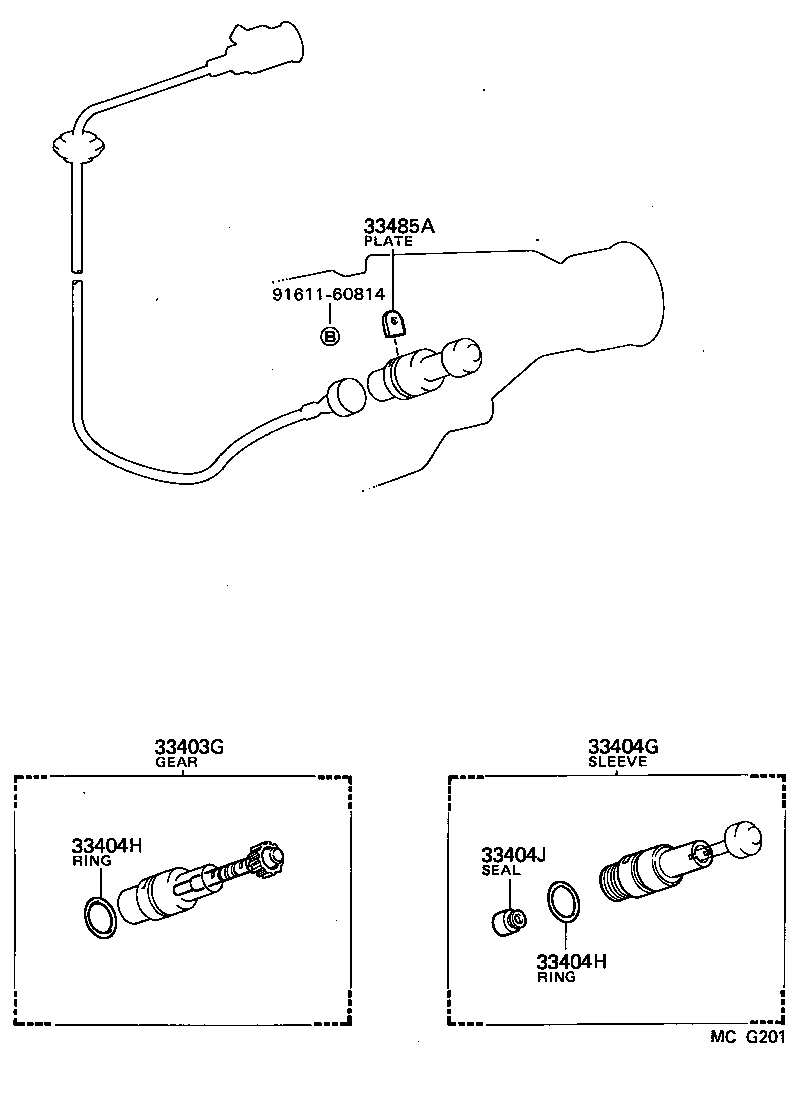

Click highlighted areas on diagram
A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33482-29105 |
GA70..4FC..(GT,GTT) 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33482-39315 |
GA70..4FC..G 歯数=21,ﾏｰｸ 21:6 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
GA70..4FC..G |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GA70..4FC..G |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GA70..4FC..G |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GA70..4FC..G |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
GA70..4FC..G |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
(8808- )4FC..GT,GTL,GTT,GTTR

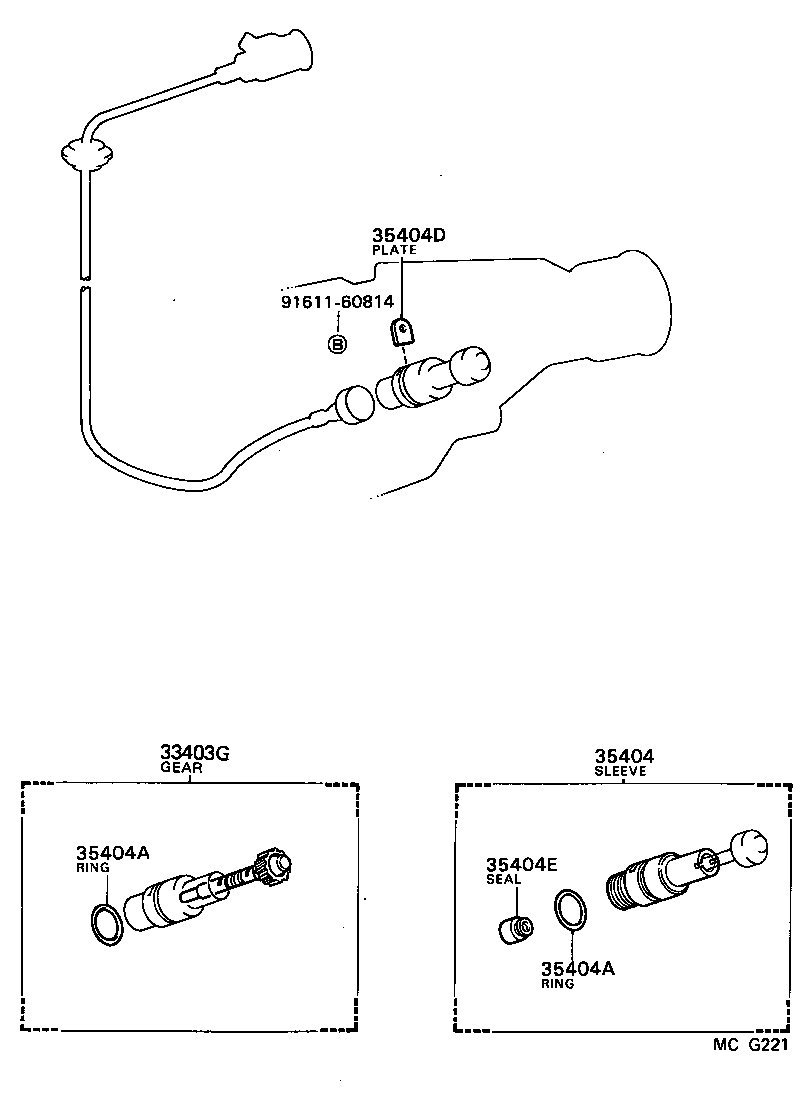

Click highlighted areas on diagram
A340E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33482-29105 |
GA70..4FC..(GT,GTT) 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33482-39315 |
GA70..4FC..G 歯数=21,ﾏｰｸ 21:6 |
1 | ||
| 35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
