GA70-BLPSE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8602- )G,S

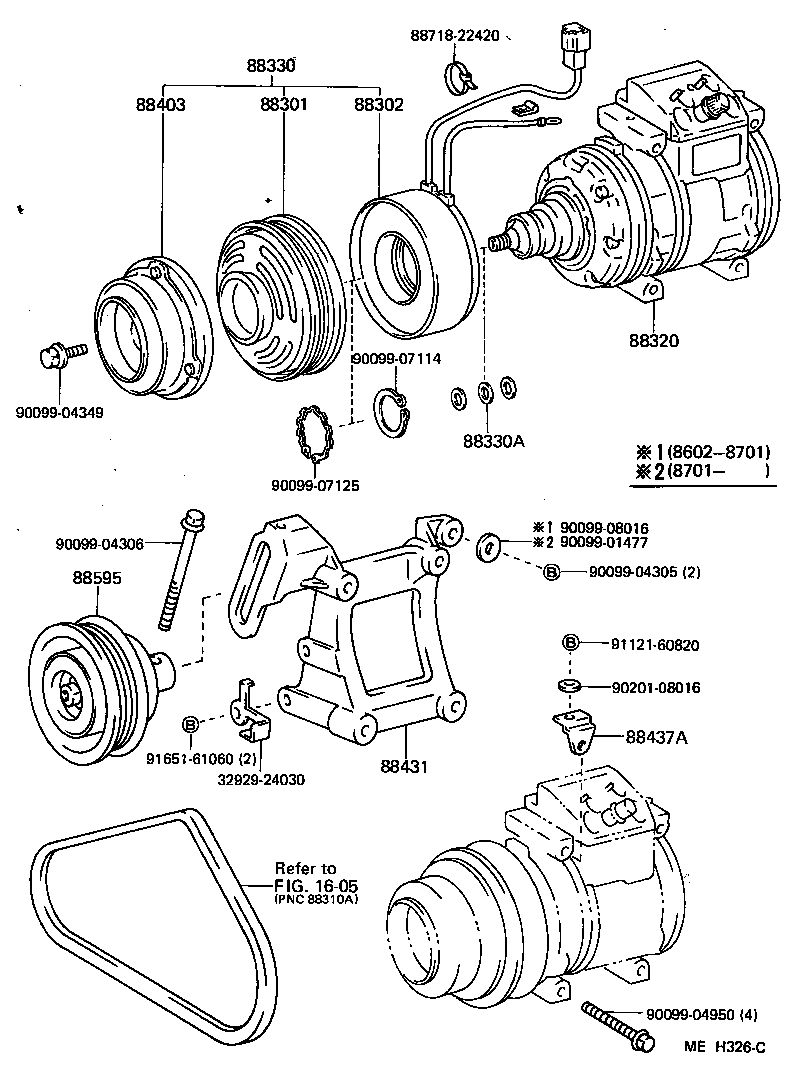

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12160 |
GA70,MA70 |
1 | ||
| 88412-14100 |
GA70,MA70 |
1 | ||
| 88412-14080 |
GA70,MA70 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14100 |
GA70,MA70 |
1 | ||
| 88411-14110 |
GA70,MA70 |
1 | ||
| 88411-14111 |
GA70,MA70 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14541 |
GA70 |
1 | ||
| 88320-14540 |
GA70 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14181 |
GA70 |
1 | ||
| 88410-14180 |
GA70,MA70 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GA70,MA70 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14050 |
GA70,MA70 |
1 | ||
| 88403-16011 |
GA70,MA70 |
1 | ||
| 88403-16010 |
GA70,MA70 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24050 |
GA70..G,S |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-24020 |
GA70..G,S |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 32929-24030 | ||||
| 88718-22420 | ||||
| 90099-01477 | ||||
| 90099-04305 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-08016 | ||||
| 90201-08016 | ||||
| 91121-60820 | ||||
| 91651-61060 | ||||
| Linked diagrams | ||||
| 1605 | ||||
