GA70-BLPSE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

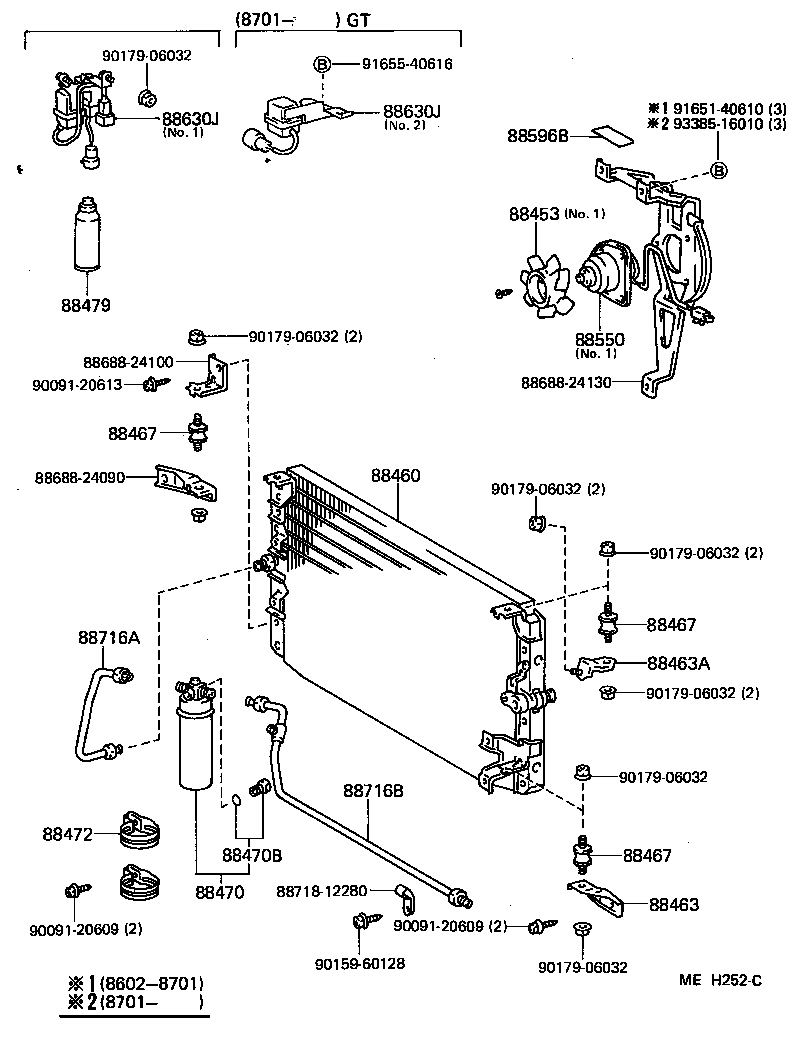

ILLUST NO. 1 OF 2(8602- )GA70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
GA70,MA70 NO.1 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-24040 |
GA70 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-24080 |
GA70,MA70 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-24070 |
GA70,MA70 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-30270 |
GA70,MA70 |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-30270 |
GA70,MA70 |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-30270 |
GA70,MA70 |
5 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
GA70,MA70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
GA70,MA70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
GA70,MA70 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
GA70,MA70 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-24020 |
GA70..G,GT,S NO.1 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
GA70,MA70 |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-24060 |
GA70,MA70 NO.1 |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-24060 |
GA70,MA70 NO.1 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-24080 |
GA70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-24091 |
GA70 |
1 | ||
| 88716-24090 |
GA70 |
1 | ||
| Common parts | ||||
| 88688-24090 | ||||
| 88688-24100 | ||||
| 88688-24130 | ||||
| 88718-12280 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-40610 | ||||
| 91655-40616 | ||||
| 93385-16010 | ||||

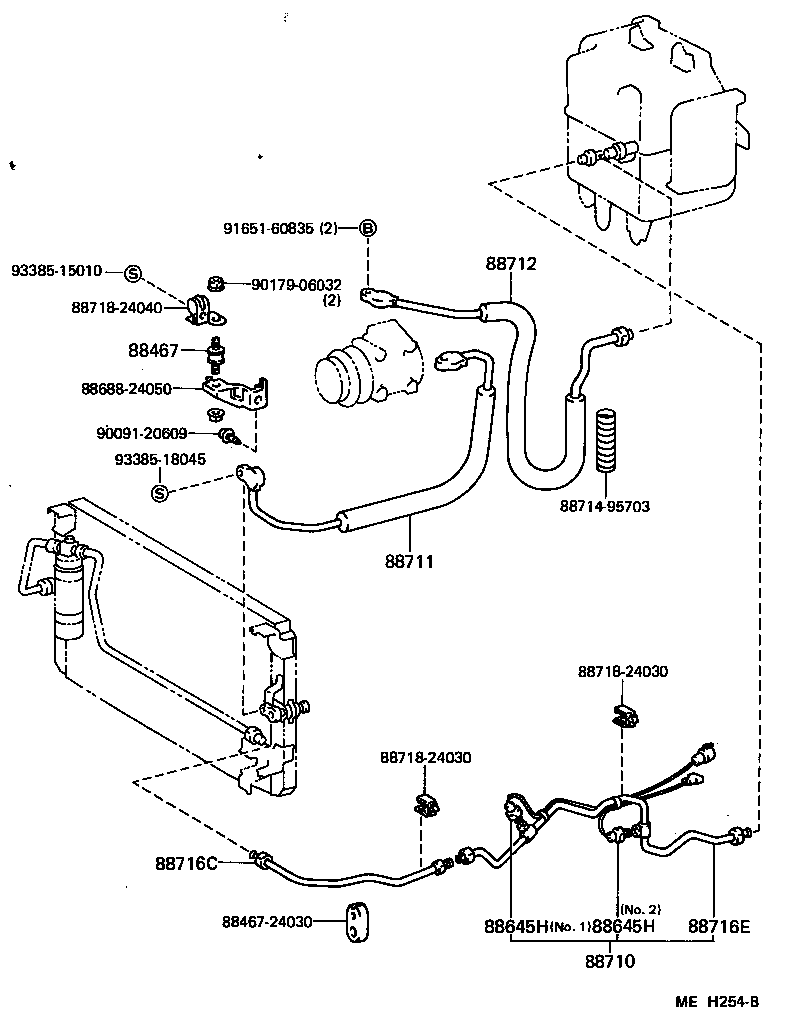

ILLUST NO. 2 OF 2(8602- )GA70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-30270 |
GA70,MA70 |
5 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
GA70,MA70 NO.2 |
1 | ||
| 88645-24030 |
GA70,MA70 NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
GA70,MA70 NO.2 |
1 | ||
| 88645-24030 |
GA70,MA70 NO.1 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-24030 |
GA70,MA70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-24060 |
GA70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B110 |
GA70 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-24120 |
GA70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-24170 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 88467-24030 | ||||
| 88688-24050 | ||||
| 88714-95703 | ||||
| 88718-24030 | ||||
| 88718-24040 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93385-15010 | ||||
| 93385-18045 | ||||
