GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )GA70

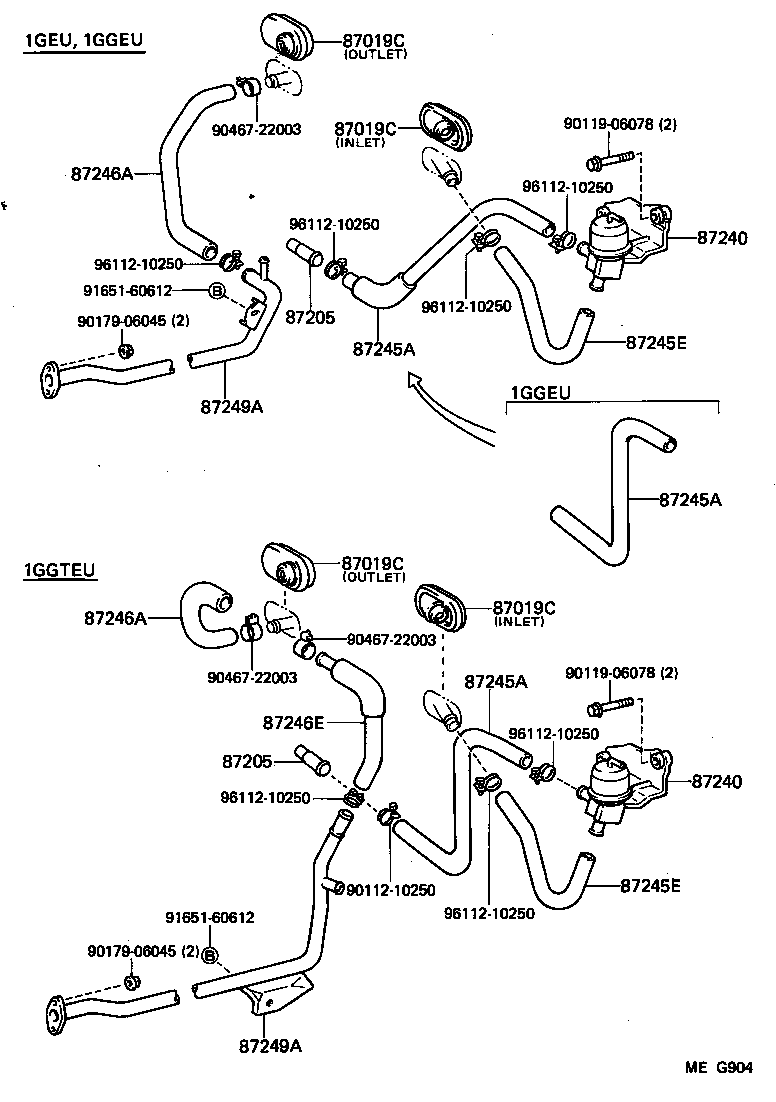

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87249A 87249A 9011210250 9011906078 9011906078 9017906045 9017906045 9046722003 9046722003 9046722003 9165160612 9165160612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01272

GA70,MA70

INLET

 1
90480-01337

GA70,MA70

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GA70,MA70

INLET

 1
90480-01337

GA70,MA70

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GA70,MA70

INLET

 1
90480-01337

GA70,MA70

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GA70,MA70

INLET

 1
90480-01337

GA70,MA70

OUTLET

 1
87240 - VALVE ASSY, HEATER WATER
87240-24020

GA70,MA70

 1
87240 - VALVE ASSY, HEATER WATER
87240-24020

GA70,MA70

 1
87245A - HOSE, HEATER WATER, INLET A
87245-24140

GA70..G,S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-24140

GA70..G,S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-24140

GA70..G,S

 1
87245E - HOSE, HEATER WATER, INLET E
87245-24130

GA70,MA70

 1
87245E - HOSE, HEATER WATER, INLET E
87245-24130

GA70,MA70

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-24160

GA70..G,GT,S

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-24160

GA70..G,GT,S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22011

GA70..G,GT,S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22011

GA70..G,GT,S

 1
Common parts
90112-10250
90119-06078
90179-06045
90467-22003
91651-60612
96112-10250
