GA70-BLPSE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8602- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-24020 |
GA70,MA70 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
GA70,MA70 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-24030 |
GA70,MA70 AIR MIX DAMPER |
1 | ||
| 87106-24020 |
GA70,MA70 MODE DAMPER |
1 | ||
| 87106-14040 |
GA70,MA70 AIR INLET DAMPER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14090 |
GA70,MA70 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14090 |
GA70,MA70 |
1 | ||
| 87138-24030 |
GA70,MA70 W/*AAC |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||

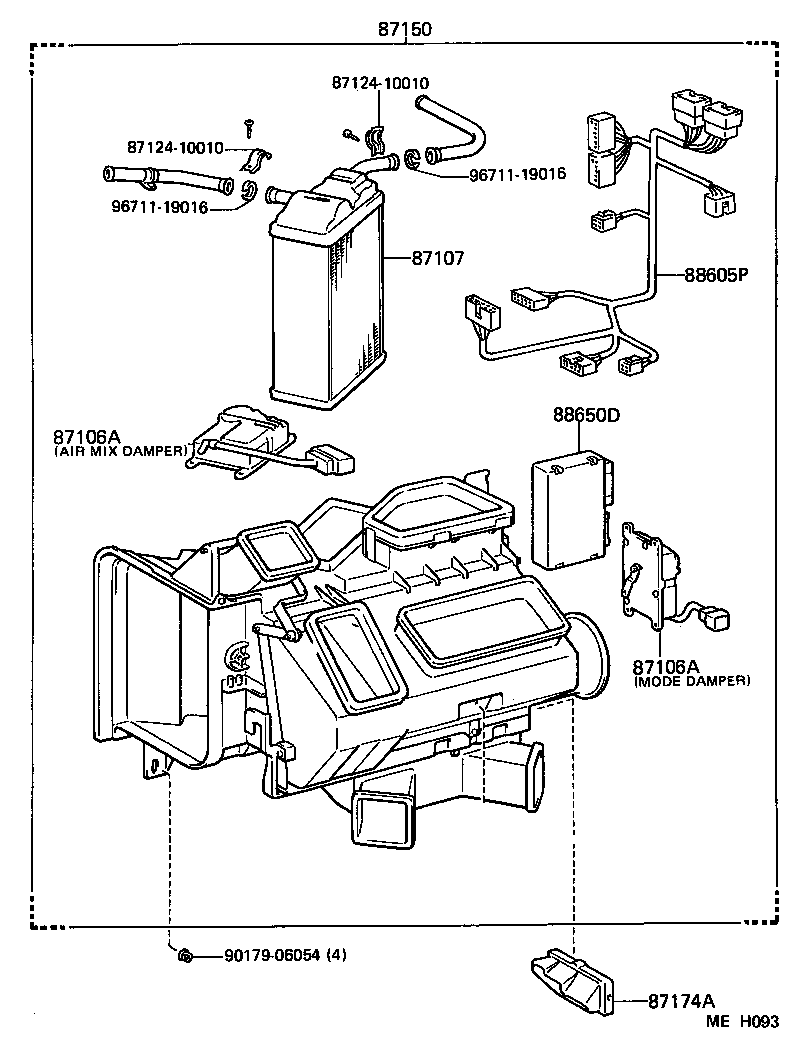

ILLUST NO. 2 OF 3(8602- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-24030 |
GA70,MA70 AIR MIX DAMPER |
1 | ||
| 87106-24020 |
GA70,MA70 MODE DAMPER |
1 | ||
| 87106-14040 |
GA70,MA70 AIR INLET DAMPER |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-24030 |
GA70,MA70 AIR MIX DAMPER |
1 | ||
| 87106-24020 |
GA70,MA70 MODE DAMPER |
1 | ||
| 87106-14040 |
GA70,MA70 AIR INLET DAMPER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-24020 |
GA70,MA70 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-14240 |
GA70 |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-24010 |
GA70,MA70 |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-14790 |
GA70,MA70 |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-14230 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 87124-10010 | ||||
| 90179-06054 | ||||
| 96711-19016 | ||||

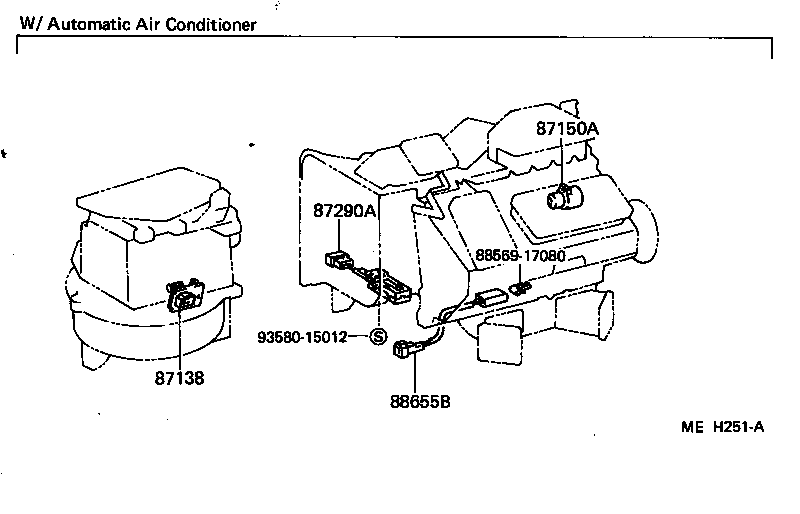

ILLUST NO. 3 OF 3(8602- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14090 |
GA70,MA70 |
1 | ||
| 87138-24030 |
GA70,MA70 W/*AAC |
1 | ||
| 87150A - RELAY, HEATER RADIATOR | ||||
| 88630-95702 |
GA70,MA70 |
1 | ||
| 87290A - SWITCH ASSY, HEATER | ||||
| 87290-24010 |
GA70,MA70 |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88625-10070 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 88569-17080 | ||||
| 93580-15012 | ||||
(8808-8908) ; (8908-9108)NOB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-10010 | ||||
| 87124-14010 | ||||
| 87124-14020 | ||||
| 87398-89105 | ||||
| 88569-17080 | ||||
| 90179-06054 | ||||
| 93315-15012 | ||||
| 93510-05012 | ||||
| 93510-55012 | ||||
| 96711-19016 | ||||
