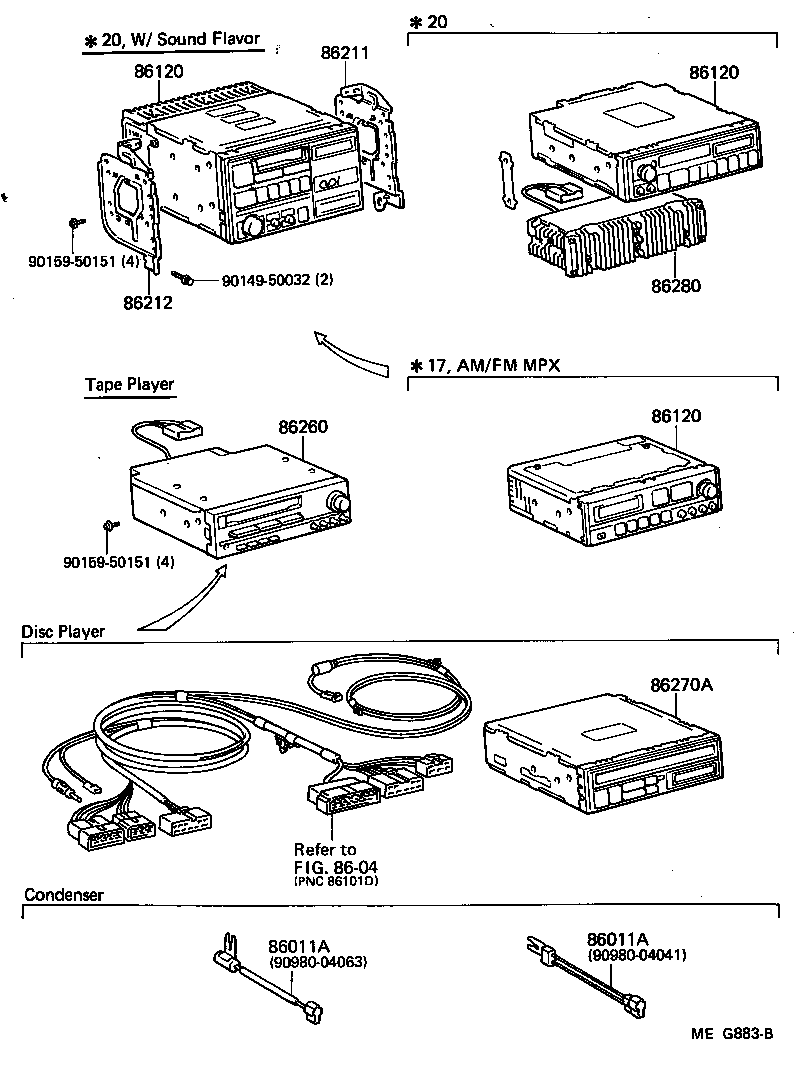

Toyota Supra GA70 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04041	GA70,MA70 IGNITION COIL	02/1986 - 08/1988	1
90980-04063	GA70,MA70 DEFOGGER	02/1986 - 08/1988	1
86011A - CONDENSER, RADIO SETTING
90980-04041	GA70,MA70 IGNITION COIL	02/1986 - 08/1988	1
90980-04063	GA70,MA70 DEFOGGER	02/1986 - 08/1988	1
86120 - RECEIVER ASSY, RADIO
86120-14710	GA70,MA70..G,GT,GTT *20,W/SOUND FLAVOR	02/1986 - 01/1987	1
86120-20310	GA70..G,GT,GTT *17	02/1986 - 01/1987	1
86120-19016	GA70..S FUJITSU TEN,AM/FM MPX	02/1986 - 08/1988	1
86120-14720	GA70..G,GT,GTT *17	01/1987 - 08/1988	1
86120-14670	GA70,MA70..G,GT,GTT *20	02/1986 - 01/1987	1
86120-14730	GA70,MA70..G,GT,GTL,GTT *20	01/1987 - 08/1988	1
86120-14711	GA70,MA70..G,GT,GTL,GTT *20,W/SOUND FLAVOR	01/1987 - 08/1988	1
86120 - RECEIVER ASSY, RADIO
86120-14710	GA70,MA70..G,GT,GTT *20,W/SOUND FLAVOR	02/1986 - 01/1987	1
86120-20310	GA70..G,GT,GTT *17	02/1986 - 01/1987	1
86120-19016	GA70..S FUJITSU TEN,AM/FM MPX	02/1986 - 08/1988	1
86120-14720	GA70..G,GT,GTT *17	01/1987 - 08/1988	1
86120-14670	GA70,MA70..G,GT,GTT *20	02/1986 - 01/1987	1
86120-14730	GA70,MA70..G,GT,GTL,GTT *20	01/1987 - 08/1988	1
86120-14711	GA70,MA70..G,GT,GTL,GTT *20,W/SOUND FLAVOR	01/1987 - 08/1988	1
86120 - RECEIVER ASSY, RADIO
86120-14710	GA70,MA70..G,GT,GTT *20,W/SOUND FLAVOR	02/1986 - 01/1987	1
86120-20310	GA70..G,GT,GTT *17	02/1986 - 01/1987	1
86120-19016	GA70..S FUJITSU TEN,AM/FM MPX	02/1986 - 08/1988	1
86120-14720	GA70..G,GT,GTT *17	01/1987 - 08/1988	1
86120-14670	GA70,MA70..G,GT,GTT *20	02/1986 - 01/1987	1
86120-14730	GA70,MA70..G,GT,GTL,GTT *20	01/1987 - 08/1988	1
86120-14711	GA70,MA70..G,GT,GTL,GTT *20,W/SOUND FLAVOR	01/1987 - 08/1988	1
86211 - BRACKET, RADIO, NO.1
86211-14220	GA70,MA70	02/1986 - 08/1988	1
86212 - BRACKET, RADIO, NO.2
86212-14190	GA70,MA70	02/1986 - 08/1988	1
86260 - TAPE PLAYER ASSY
86260-22170	GA70..S	02/1986 - 01/1987	1
86260-14280	GA70,MA70..G,GT,GTL,GTT	01/1987 - 08/1988	1
86260-19135	GA70..S W/GRAPHIC EQUALIZER	01/1987 - 08/1988	1
86260-20090	GA70,MA70..G,GT,GTT	02/1986 - 01/1987	1
86260-14290	GA70,MA70..G,GT,GTL,GTT W/GRAPHIC EQUALIZER	01/1987 - 08/1988	1
86260-19125	GA70..S	01/1987 - 08/1988	1
86270A - DISC PLAYER ASSY
86270-14040	GA70,MA70..G,GT,GTT	02/1986 - 01/1987	1
86270-32010	GA70,MA70..G,GT,GTL,GTT	01/1987 - 08/1987	1
86270-20010	GA70,MA70..G,GT,GTL,GTT	08/1987 - 06/1988	1
86270-20011	GA70,MA70..G,GT,GTL,GTT	06/1988 - 08/1988	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-14201	GA70,MA70..G,GT,GTL,GTT W/DISC PLAYER	01/1987 - 08/1988	1
86280-14210	GA70,MA70..G,GT,GTL,GTT W(*20),W/O(ｻｳﾝﾄﾞﾌﾚ-ﾊﾞ-)	01/1987 - 08/1988	1
86280-14200	GA70,MA70..G,GT,GTT W/DISC PLAYER	02/1986 - 01/1987	1
86280-14190	GA70,MA70..G,GT,GTT W(*20),W/O(ｻｳﾝﾄﾞﾌﾚ-ﾊﾞ-)	02/1986 - 01/1987	1
Common parts
90149-50032
90159-50151
90980-04041
90980-04063
Linked diagrams
8604

GA70-BLPSE (1986)

(8602- )
