GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

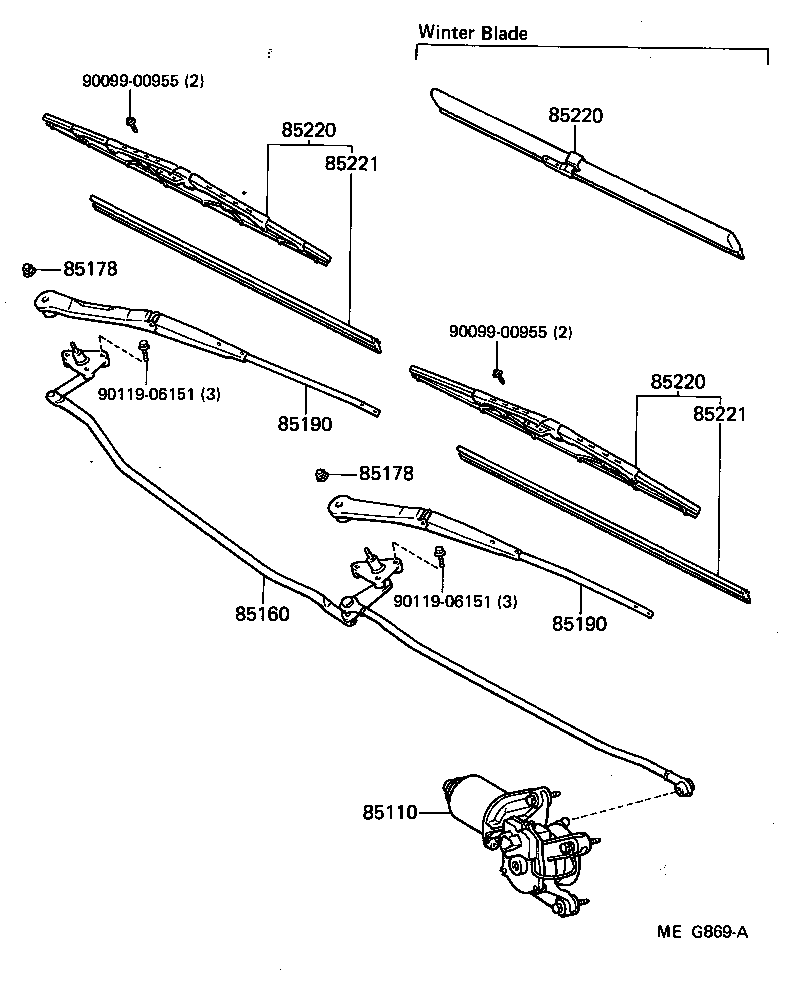

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85220 85221 85221 9009900955 9009900955 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14301

GA70,MA70

COLD SPEC

 1
85110-14210

GA70,MA70

 1
85110-14300

GA70,MA70

COLD SPEC

 1
85110-14211

GA70,MA70

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14320

GA70,MA70

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

GA70,MA70

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

GA70,MA70

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14610

GA70,MA70

RH

 1
85210-14190

GA70,MA70

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14610

GA70,MA70

RH

 1
85210-14190

GA70,MA70

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32560

GA70,MA70

RH,WINTER BLADE

 1
85220-16550

GA70,MA70

LH

 1
85220-32480

GA70,MA70

RH

 1
85220-32310

GA70,MA70

RH

 1
85220-16580

GA70,MA70

LH,WINTER BLADE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32560

GA70,MA70

RH,WINTER BLADE

 1
85220-16550

GA70,MA70

LH

 1
85220-32480

GA70,MA70

RH

 1
85220-32310

GA70,MA70

RH

 1
85220-16580

GA70,MA70

LH,WINTER BLADE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32560

GA70,MA70

RH,WINTER BLADE

 1
85220-16550

GA70,MA70

LH

 1
85220-32480

GA70,MA70

RH

 1
85220-32310

GA70,MA70

RH

 1
85220-16580

GA70,MA70

LH,WINTER BLADE

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30110

GA70,MA70

RH

 1
85221-14270

GA70,MA70

LH

 1
85221-14240

GA70,MA70

LH

 1
85221-14220

GA70,MA70

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30110

GA70,MA70

RH

 1
85221-14270

GA70,MA70

LH

 1
85221-14240

GA70,MA70

LH

 1
85221-14220

GA70,MA70

RH

 1
Common parts
90099-00955
90119-06151
