GA70-BLPSE (1986)
Toyota Supra

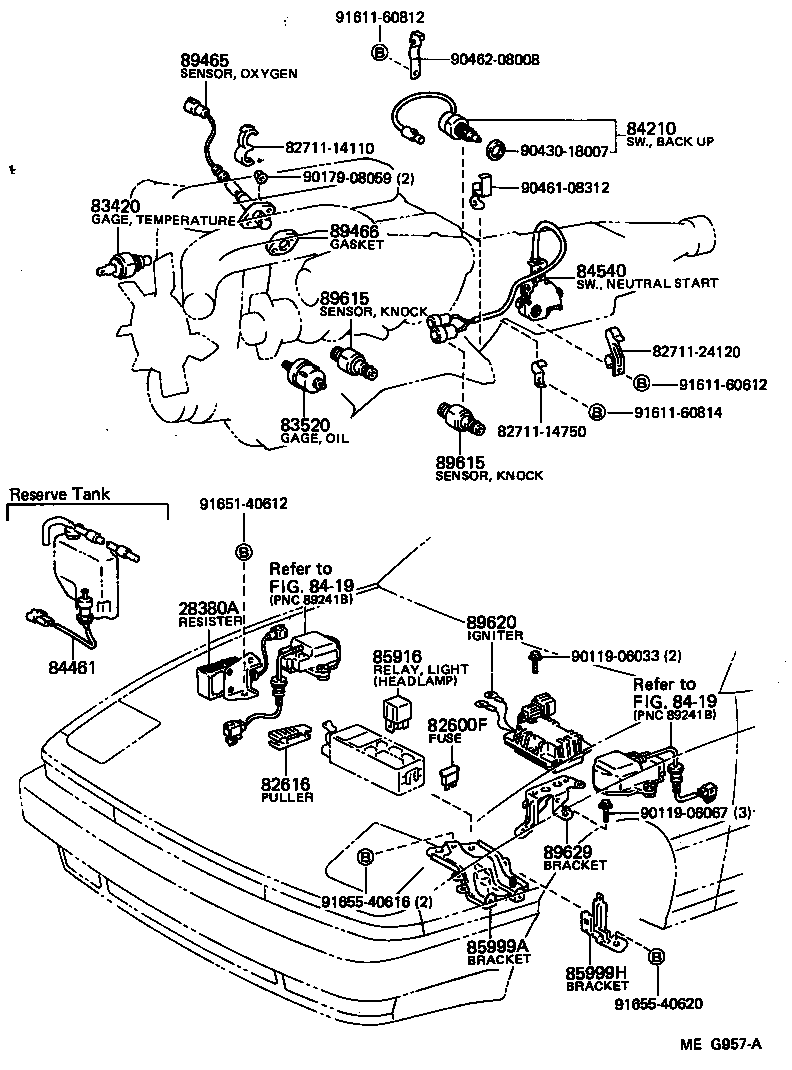

ILLUST NO. 1 OF 5(8602- )GA70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GA70,MA70 10A,10A |
3 | ||
| 90982-07011 |
GA70,MA70 30A,緑,30A |
1 | ||
| 90982-09005 |
GA70,MA70 7.5A,7.5A |
4 | ||
| 90982-09003 |
GA70,MA70 15A,15A |
6 | ||
| 90982-09004 |
GA70,MA70 20A,黄,20A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GA70,MA70 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GA70,MA70 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14022 |
GA70,MA70 DENSO |
1 | ||
| 83520-55011 |
GA70,MA70 YAZAKI |
1 | ||
| 83520-14023 |
GA70,MA70 DENSO |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 85335-42030 |
GA70,MA70 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-14130 |
GA70..4FC..(G,GT,S) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GA70,MA70 TAIL LAMP,MARUKO |
1 | ||
| 90987-02006 |
GA70,MA70 HEADLAMP |
1 | ||
| 90987-02004 |
GA70,MA70 TAIL LAMP,DENSO |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-24020 |
GA70,MA70 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-24030 |
GA70,MA70 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19075 |
GA70..G,S |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
GA70..G,GT,S |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14410 |
GA70..G,GT,S |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-14050 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8419 | ||||

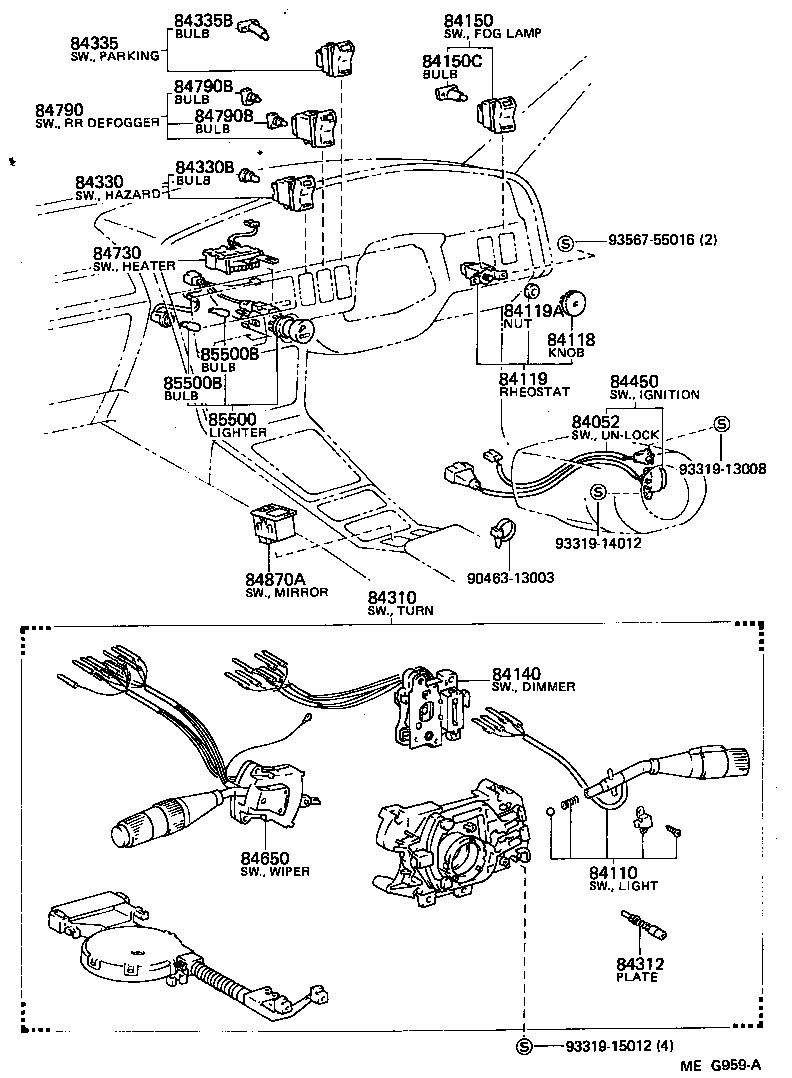

ILLUST NO. 3 OF 5(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
GA70,MA70 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19735 |
GA70..G,S MATSUSHITA |
1 | ||
| 84112-19725 |
GA70..G,S TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20150 |
GA70..G,S TOKAIRIKA |
1 | ||
| 84140-20190 |
GA70..G,S MATSUSHITA |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-14060 |
GA70,MA70 |
1 | ||
| 84160-14080 |
GA70,MA70 |
1 | ||
| 84150C - BULB, FOG LAMP SWITCH | ||||
| 84999-10120 |
GA70,MA70 12V 0.7W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14790 |
GA70..G,S |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
GA70 TOKAIRIKA |
1 | ||
| 84312-32020 |
GA70 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-14140 |
GA70,MA70 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10110 |
GA70,MA70 12V 1.12W,12V 1.12W |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-14120 |
GA70,MA70 |
1 | ||
| 84335B - BULB, PARKING LAMP SWITCH | ||||
| 84999-10120 |
GA70,MA70 12V 0.7W,12V 0.7W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
GA70,MA70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14330 |
GA70..G,S |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14200 |
GA70,MA70 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14230 |
GA70,MA70 |
1 | ||
| 84790-14210 |
GA70,MA70 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10200 |
GA70,MA70 14V 0.56W,12V 0.56W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10200 |
GA70,MA70 14V 0.56W,12V 0.56W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
GA70..G,S |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14150 |
GA70,MA70 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GA70,MA70 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GA70,MA70 14V 1.4W,12V 1.4W |
2 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

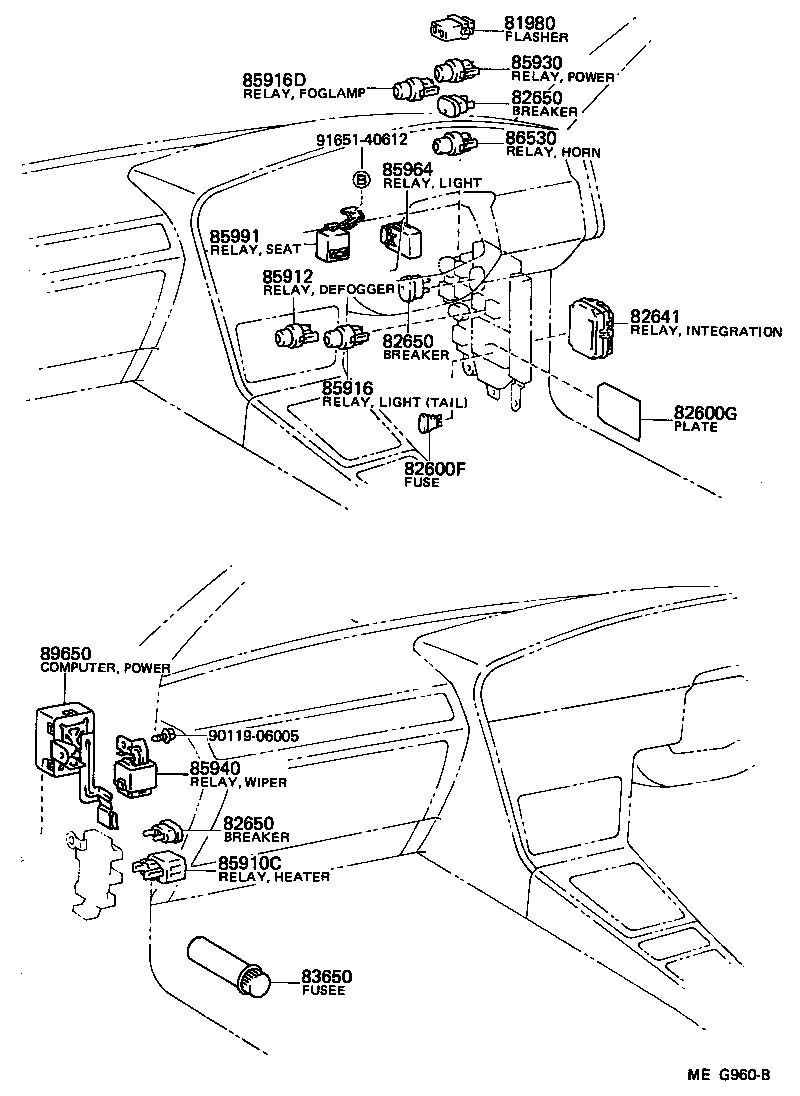

ILLUST NO. 4 OF 5(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
GA70,MA70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GA70,MA70 10A,10A |
3 | ||
| 90982-07011 |
GA70,MA70 30A,緑,30A |
1 | ||
| 90982-09005 |
GA70,MA70 7.5A,7.5A |
4 | ||
| 90982-09003 |
GA70,MA70 15A,15A |
6 | ||
| 90982-09004 |
GA70,MA70 20A,黄,20A |
2 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-24020 |
GA70,MA70 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-24010 |
GA70,MA70 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GA70,MA70 30A,30A |
3 | ||
| 82650-20020 |
GA70,MA70 40A,40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GA70,MA70 30A,30A |
3 | ||
| 82650-20020 |
GA70,MA70 40A,40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GA70,MA70 30A,30A |
3 | ||
| 82650-20020 |
GA70,MA70 40A,40A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GA70,MA70 |
1 | ||
| 90986-01005 |
GA70,MA70 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GA70,MA70 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GA70,MA70 MARUKO |
1 | ||
| 90987-02004 |
GA70,MA70 DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GA70,MA70 TAIL LAMP,MARUKO |
1 | ||
| 90987-02006 |
GA70,MA70 HEADLAMP |
1 | ||
| 90987-02004 |
GA70,MA70 TAIL LAMP,DENSO |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
GA70,MA70 DENSO |
1 | ||
| 90987-02002 |
GA70,MA70 MARUKO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
GA70,MA70 MARUKO |
1 | ||
| 90987-02004 |
GA70,MA70 DENSO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14080 |
GA70,MA70 |
1 | ||
| 85940-14080 |
GA70 |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-20011 |
GA70,MA70 |
1 | ||
| 85964-20012 |
GA70,MA70 |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-14040 |
GA70,MA70 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GA70,MA70 MARUKO |
1 | ||
| 90987-02004 |
GA70,MA70 DENSO |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||

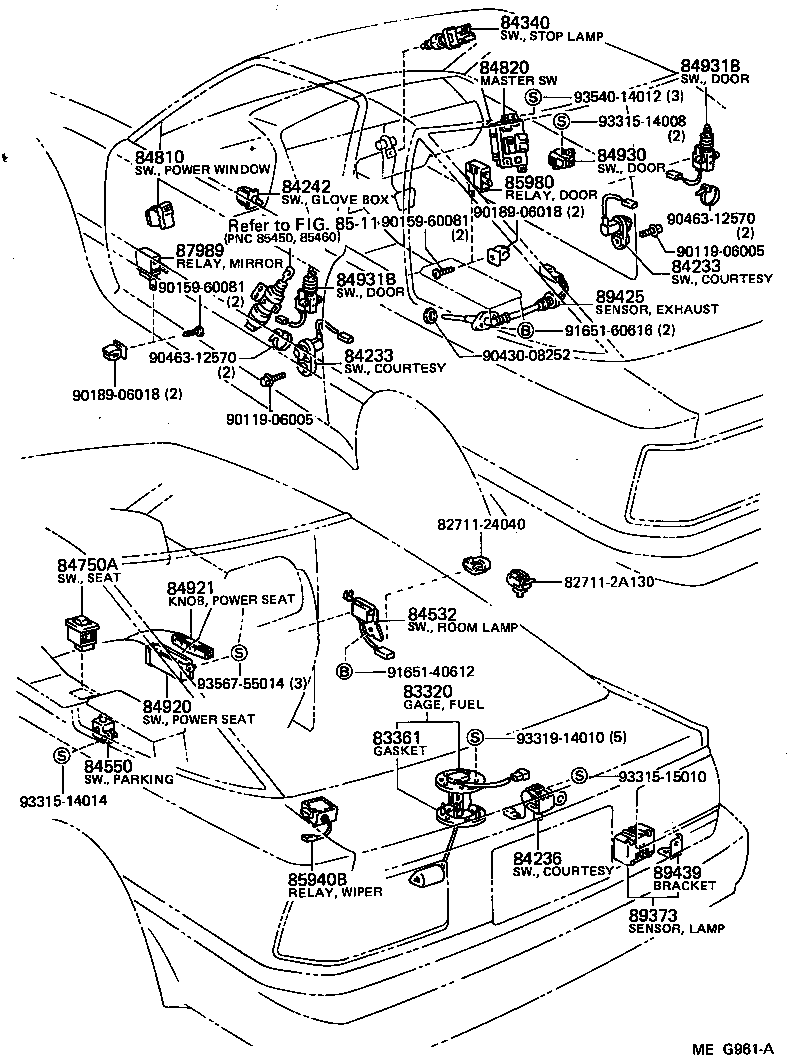

ILLUST NO. 5 OF 5(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80050 |
GA70 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GA70 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
GA70,MA70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
GA70,MA70 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20130 |
GA70,MA70 |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GA70,MA70 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GA70 MATSUSHITA |
1 | ||
| 84340-32010 |
GA70 TOKAIRIKA |
1 | ||
| 84340-30030 |
GA70 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24030 |
GA70,MA70 |
1 | ||
| 84750A - SWITCH ASSY, SEAT | ||||
| 84750-14050 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GA70,MA70 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20110 |
GA70,MA70 |
1 | ||
| 84820-14180 |
GA70,MA70 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-14080 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-14020 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-14020 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20080 |
GA70,MA70 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-14100 |
GA70,MA70 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20070 |
GA70,MA70 |
1 | ||
| 89373-20060 |
GA70,MA70 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19365 |
GA70,MA70 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-14010 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 82711-24040 | ||||
| 82711-2A130 | ||||
| 90119-06005 | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
| 90430-08252 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93540-14012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8511 | ||||
