GA70-BLPSE (1986)
Toyota Supra

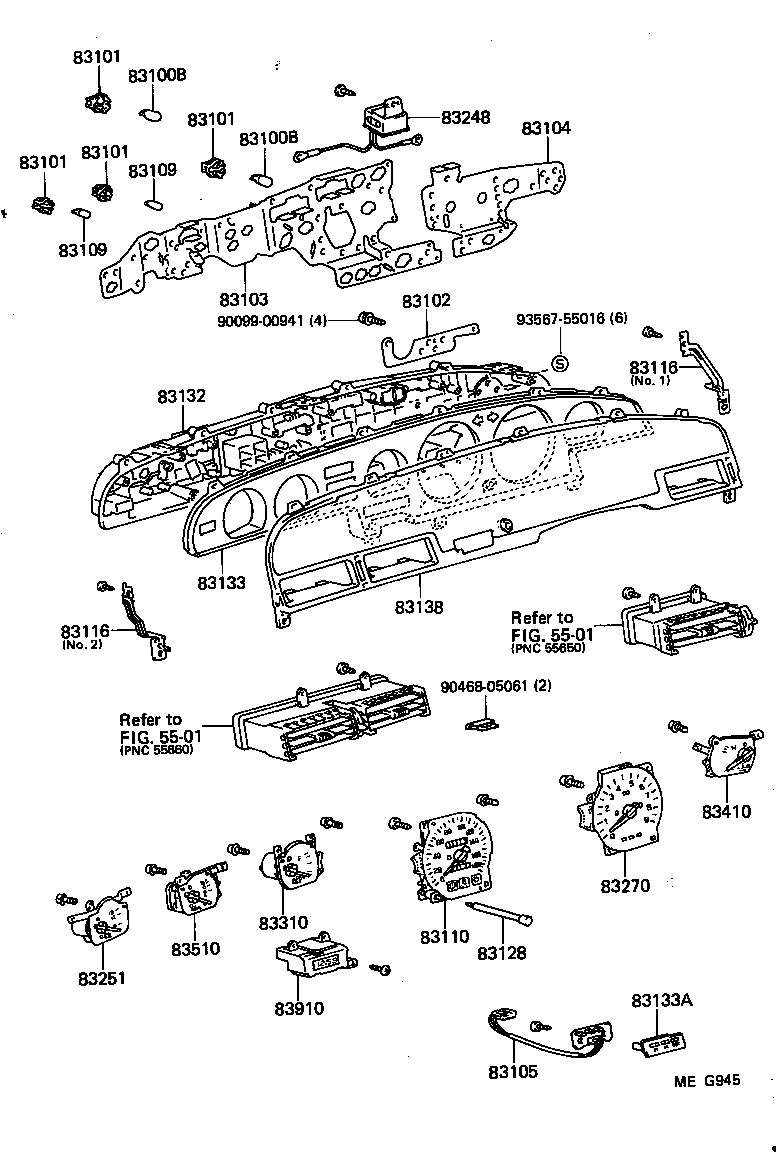

ILLUST NO. 1 OF 3(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GA70,MA70 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
8 | ||
| 99132-12034 |
GA70 12V 3.4W,12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GA70,MA70 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
8 | ||
| 99132-12034 |
GA70 12V 3.4W,12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GA70 12V 3.4W |
4 | ||
| 83101-14040 |
GA70,MA70 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GA70 12V 3.4W |
4 | ||
| 83101-14040 |
GA70,MA70 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GA70 12V 3.4W |
4 | ||
| 83101-14040 |
GA70,MA70 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GA70 12V 3.4W |
4 | ||
| 83101-14040 |
GA70,MA70 12V 1.4W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J510 |
GA70 |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1J670 |
GA70 |
1 | ||
| 83247-1J670 |
GA70..G,GT,S |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-1J550 |
GA70..G,S |
1 | ||
| 83105 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4 | ||||
| 83247-1J140 |
GA70..G,GTT,S |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24010 |
GA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
1 | ||
| 83109-24020 |
GA70 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24010 |
GA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
1 | ||
| 83109-24020 |
GA70 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1B110 |
GA70 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14130 |
GA70,MA70 NO.2 |
1 | ||
| 83116-14110 |
GA70,MA70 NO.1 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14130 |
GA70,MA70 NO.2 |
1 | ||
| 83116-14110 |
GA70,MA70 NO.1 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GA70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J550 |
GA70 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B530 |
GA70 |
1 | ||
| 83133-1B530 |
GA70..G,GT,S |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-1B690 |
GA70 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B170 |
GA70 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-14090 |
GA70 |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-14650 |
GA70 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1B470 |
GA70..G,S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14750 |
GA70 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B170 |
GA70 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14670 |
GA70 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14360 |
GA70 |
1 | ||
| Common parts | ||||
| 90099-00941 | ||||
| 90468-05061 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

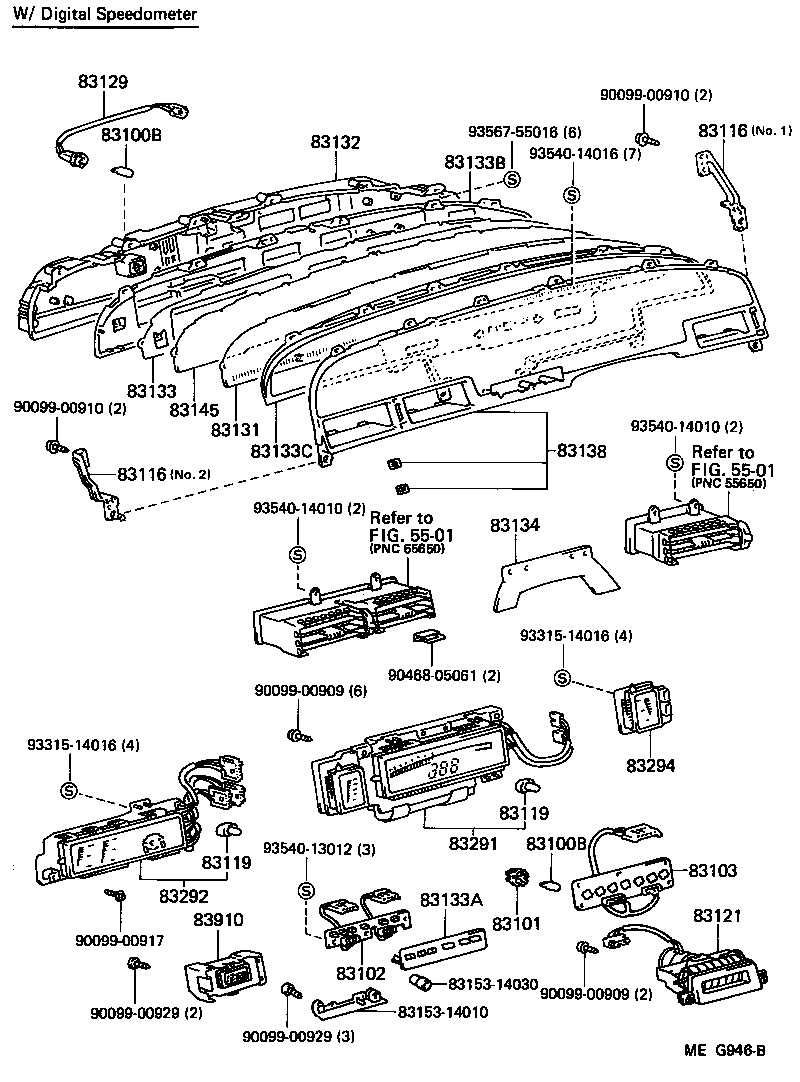

ILLUST NO. 1 OF 3(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GA70,MA70 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
8 | ||
| 99132-12034 |
GA70 12V 3.4W,12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GA70,MA70 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
8 | ||
| 99132-12034 |
GA70 12V 3.4W,12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GA70 12V 3.4W |
4 | ||
| 83101-14040 |
GA70,MA70 12V 1.4W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J510 |
GA70 |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1J670 |
GA70 |
1 | ||
| 83247-1J670 |
GA70..G,GT,S |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14130 |
GA70,MA70 NO.2 |
1 | ||
| 83116-14110 |
GA70,MA70 NO.1 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14130 |
GA70,MA70 NO.2 |
1 | ||
| 83116-14110 |
GA70,MA70 NO.1 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J550 |
GA70 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B530 |
GA70 |
1 | ||
| 83133-1B530 |
GA70..G,GT,S |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-1B690 |
GA70 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B170 |
GA70 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14360 |
GA70 |
1 | ||
| Common parts | ||||
| 83153-14010 | ||||
| 83153-14030 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90468-05061 | ||||
| 93315-14016 | ||||
| 93540-13012 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

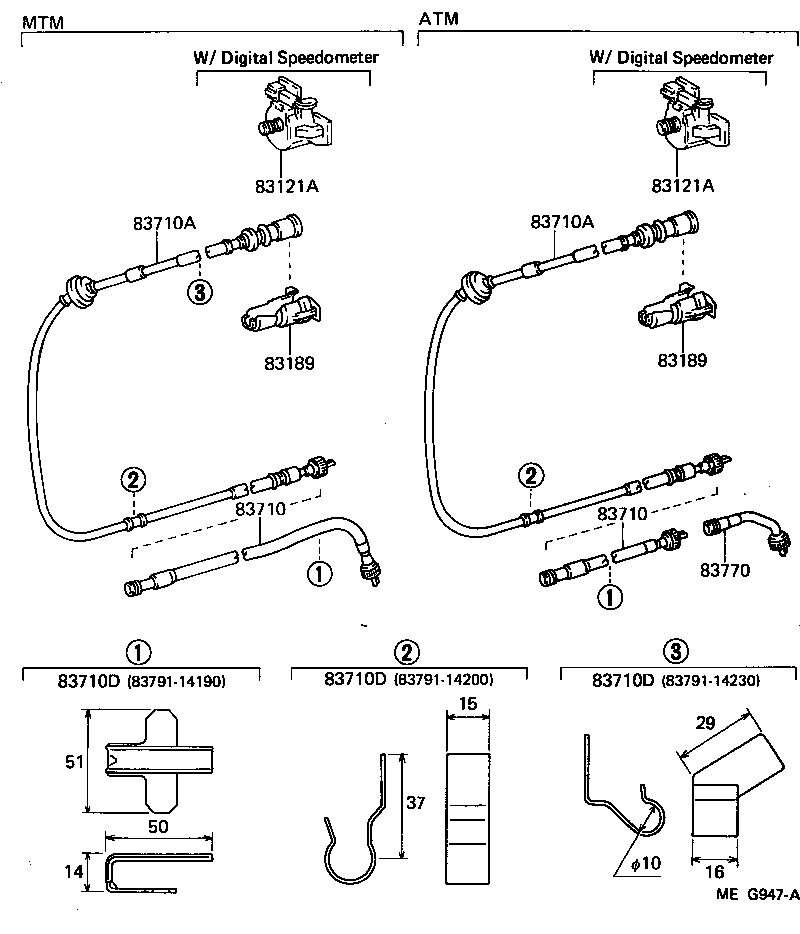

ILLUST NO. 3 OF 3(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83121A - SENSOR, SPEED | ||||
| 83181-14010 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 83121A - SENSOR, SPEED | ||||
| 83181-14010 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GA70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GA70 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
GA70,MA70..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
GA70,MA70..4FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14710 |
GA70..G,GT,S |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14710 |
GA70..G,GT,S |
1 | ||
| 83710D - CLAMP (FOR SPEEDOMETER CABLE) | ||||
| 83791-14190 |
GA70,MA70 NO.1 |
1 | ||
| 83710D - CLAMP (FOR SPEEDOMETER CABLE) | ||||
| 83791-14190 |
GA70,MA70 NO.1 |
1 | ||
| 83710D - CLAMP (FOR SPEEDOMETER CABLE) | ||||
| 83791-14190 |
GA70,MA70 NO.1 |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
GA70,MA70..4FC |
1 | ||
| Common parts | ||||
| 83791-14190 | ||||
| 83791-14200 | ||||
| 83791-14230 | ||||
ILLUST NO. 2 OF 3(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90094-90408 | ||||
| 90099-00182 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 93315-14016 | ||||
| 93510-14014 | ||||
| 93510-14016 | ||||
| 93540-13010 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93540-14036 | ||||
