Toyota Supra GA70 WIRING & CLAMP

GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988

Engine 1GEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

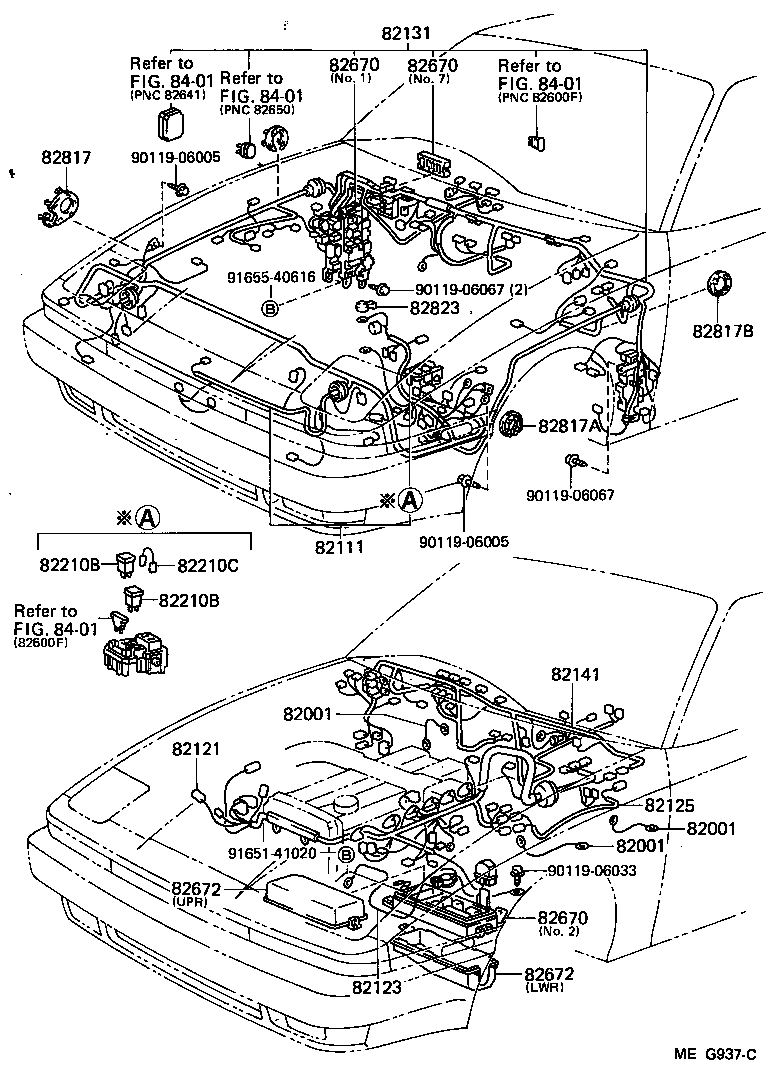

ILLUST NO. 1 OF 5(8602- )GA70

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07268	GA70,MA70 L=290,EXTENSION HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07309	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	03/1988 - 08/1988	1
90980-07176	GA70,MA70 L=300,CLUTCH HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07109	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	02/1986 - 03/1988	1
82001 - CABLE, BOND, NO.1
90980-07268	GA70,MA70 L=290,EXTENSION HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07309	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	03/1988 - 08/1988	1
90980-07176	GA70,MA70 L=300,CLUTCH HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07109	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	02/1986 - 03/1988	1
82001 - CABLE, BOND, NO.1
90980-07268	GA70,MA70 L=290,EXTENSION HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07309	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	03/1988 - 08/1988	1
90980-07176	GA70,MA70 L=300,CLUTCH HOUSING--FLOOR	02/1986 - 08/1988	1
90980-07109	GA70..G,GTT,S L=400,ENGINE--COWL PANEL	02/1986 - 03/1988	1
82111 - WIRE, ENGINE ROOM MAIN
82111-14520	GA70..G,S	02/1986 - 09/1986	1
82111-14521	GA70..G,S	09/1986 - 01/1987	1
82111-14522	GA70..G,S	01/1987 - 08/1988	1
82121 - WIRE, ENGINE
82121-24150	GA70..G,S	02/1986 - 03/1986	1
82121-24152	GA70..G,S	09/1986 - 08/1988	1
82121-24151	GA70..G,S	03/1986 - 09/1986	1
82123 - WIRE, ENGINE, NO.3
82123-24020	GA70..4FC..(G,GT,S)	02/1986 - 08/1988	1
82131 - WIRE, COWL
82131-1B610	GA70..G,S	02/1986 - 09/1986	1
82131-1B611	GA70..G,S	09/1986 - 08/1988	1
82141 - WIRE, INSTRUMENT PANEL
82141-14770	GA70..G,S	02/1986 - 01/1987	1
82141-14771	GA70..G,S	01/1987 - 08/1988	1
82210B - FUSIBLE LINK
90982-08189	GA70,MA70 40A,ﾒｽ端子,緑,40A	02/1986 - 08/1988	1
90982-08188	GA70,MA70 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A	02/1986 - 08/1988	1
82210B - FUSIBLE LINK
90982-08189	GA70,MA70 40A,ﾒｽ端子,緑,40A	02/1986 - 08/1988	1
90982-08188	GA70,MA70 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A	02/1986 - 08/1988	1
82210C - FUSIBLE LINK
90982-08250	GA70 WIRE ﾀｲﾌﾟ,1.25B,1.25 BLACK	02/1986 - 11/1987	1
90982-08250	GA70..G,GT,S WIRE ﾀｲﾌﾟ,1.25B,1.25 BLACK	11/1987 - 08/1988	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82671-14020	GA70,MA70 NO.7	02/1986 - 08/1988	1
82671-24010	GA70,MA70 NO.2	02/1986 - 08/1988	1
82670-24010	GA70,MA70 NO.1	02/1986 - 08/1988	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82671-14020	GA70,MA70 NO.7	02/1986 - 08/1988	1
82671-24010	GA70,MA70 NO.2	02/1986 - 08/1988	1
82670-24010	GA70,MA70 NO.1	02/1986 - 08/1988	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82671-14020	GA70,MA70 NO.7	02/1986 - 08/1988	1
82671-24010	GA70,MA70 NO.2	02/1986 - 08/1988	1
82670-24010	GA70,MA70 NO.1	02/1986 - 08/1988	1
82672 - COVER, JUNKTION BLOCK
82672-14010	GA70 UPR	10/1986 - 08/1988	1
82672-24010	GA70,MA70 LWR	02/1986 - 08/1988	1
82672-14010	GA70,MA70 UPR	02/1986 - 10/1986	1
82672 - COVER, JUNKTION BLOCK
82672-14010	GA70 UPR	10/1986 - 08/1988	1
82672-24010	GA70,MA70 LWR	02/1986 - 08/1988	1
82672-14010	GA70,MA70 UPR	02/1986 - 10/1986	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24140	GA70	02/1986 - 08/1988	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-24100	GA70,MA70	02/1986 - 08/1988	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-24110	GA70,MA70	02/1986 - 08/1988	1
82823 - CAP, TERMINAL, NO.1
82823-22050	GA70..G,GT,S	11/1987 - 08/1988	1
82823-20040	GA70,MA70..G,GTT,S	02/1986 - 08/1986	1
82823-22050	GA70	08/1986 - 11/1987	1
Common parts
90119-06005
90119-06033
90119-06067
91651-41020
91655-40616
Linked diagrams
8401

ILLUST NO. 4 OF 5(8602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-14100
82711-14110
82711-14560
82711-20240
82711-22220
82711-22350
82711-22490
82711-22620
82711-22670
82711-24070
82711-24200
82711-24210
82711-24220
82711-24230
82711-24240
82711-24290
82711-24310
82711-24330
82711-24340
82711-24370
82711-30070
82711-30130
82711-30670
82711-32360

ILLUST NO. 5 OF 5(8602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-1A210
82711-1B020
82711-22620
82711-24400
82711-24410
82711-2A090
82711-95015
90461-06303
90461-08183
90461-08312
90463-10012
90464-00137
90467-09043
90949-01217

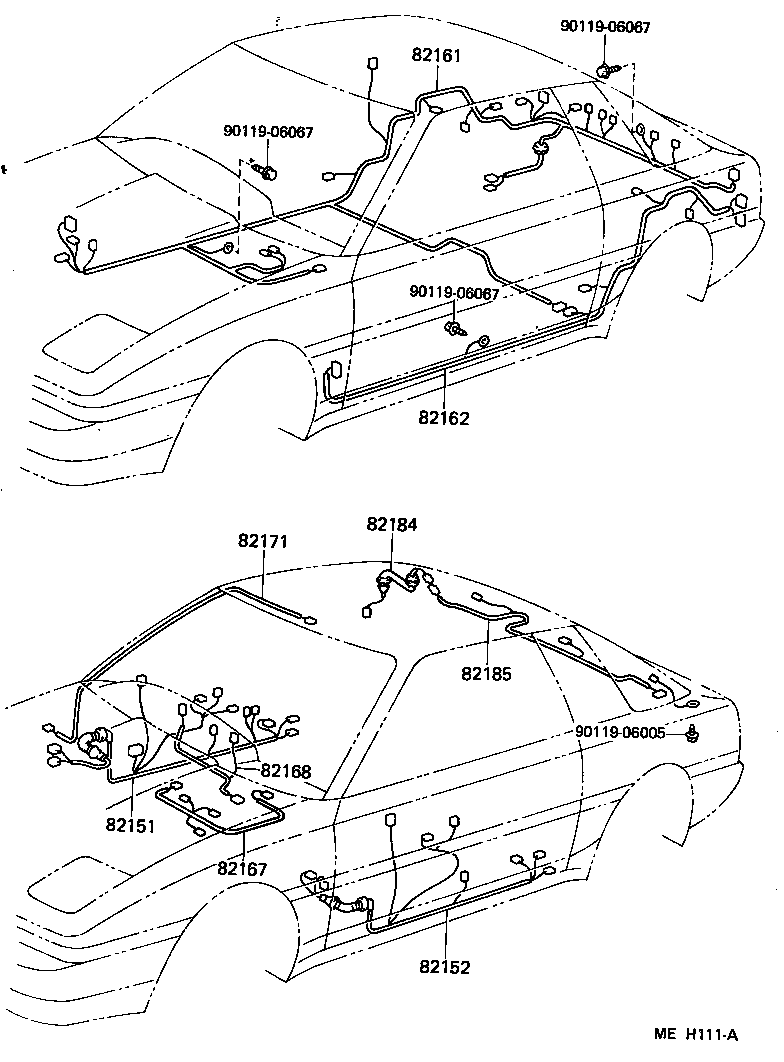

ILLUST NO. 2 OF 5(8602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-14310	GA70..G,GT,GTT	02/1986 - 08/1988	1
82151-14300	GA70..S	02/1986 - 08/1988	1
82152 - WIRE, FRONT DOOR, LH
82152-14290	GA70,MA70..G,GT,GTL,GTT	02/1986 - 08/1988	1
82152-14280	GA70..S	02/1986 - 08/1988	1
82161 - WIRE, FLOOR
82161-14690	GA70,MA70	02/1986 - 03/1986	1
82161-14691	GA70,MA70	03/1986 - 01/1987	1
82161-14692	GA70,MA70	01/1987 - 08/1988	1
82162 - WIRE, FLOOR, NO.2
82162-14010	GA70	02/1986 - 08/1988	1
82168 - WIRE, SEAT, NO.2
82167-24030	GA70,MA70..G,GT,GTL,GTT	02/1986 - 08/1988	1
82171 - WIRE, ROOF, NO.1
82171-14210	GA70,MA70..LB	02/1986 - 08/1988	1
82184 - WIRE, BACK DOOR, NO.1
82184-14090	GA70,MA70	03/1986 - 08/1988	1
82184-14080	GA70,MA70	02/1986 - 03/1986	1
82185 - WIRE, BACK DOOR, NO.2
82185-14101	GA70,MA70	03/1986 - 08/1988	1
82185-14100	GA70,MA70	02/1986 - 03/1986	1
Common parts
90119-06005
90119-06067

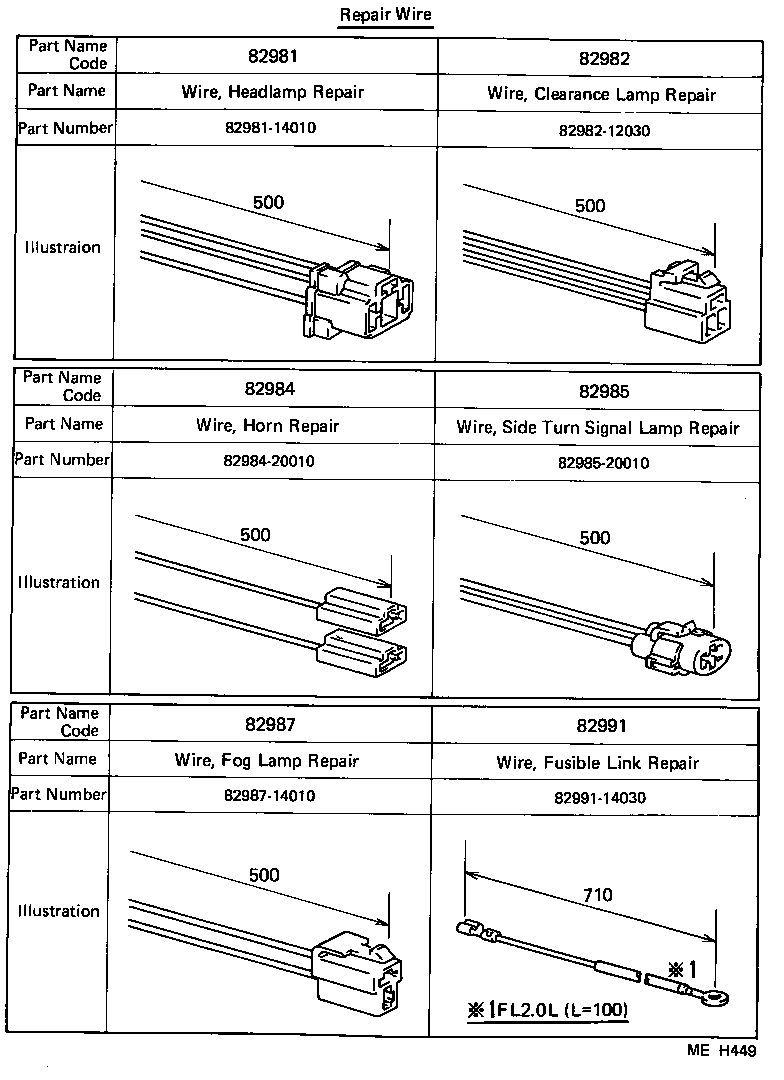

ILLUST NO. 3 OF 5(8602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-14010	GA70,MA70	02/1986 - 08/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12030	GA70,MA70	02/1986 - 08/1988	1
82984 - WIRE, HORN REPAIR
82984-20010	GA70,MA70	02/1986 - 08/1988	1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82985-20010	GA70,MA70	02/1986 - 08/1988	1
82987 - WIRE, FOG LAMP REPAIR
82987-14010	GA70,MA70	02/1986 - 08/1988	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-14030	GA70,MA70	02/1986 - 08/1988	1
Common parts
82981-14010
82982-12030
82984-20010
82985-20010
82987-14010
82991-14030
