GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

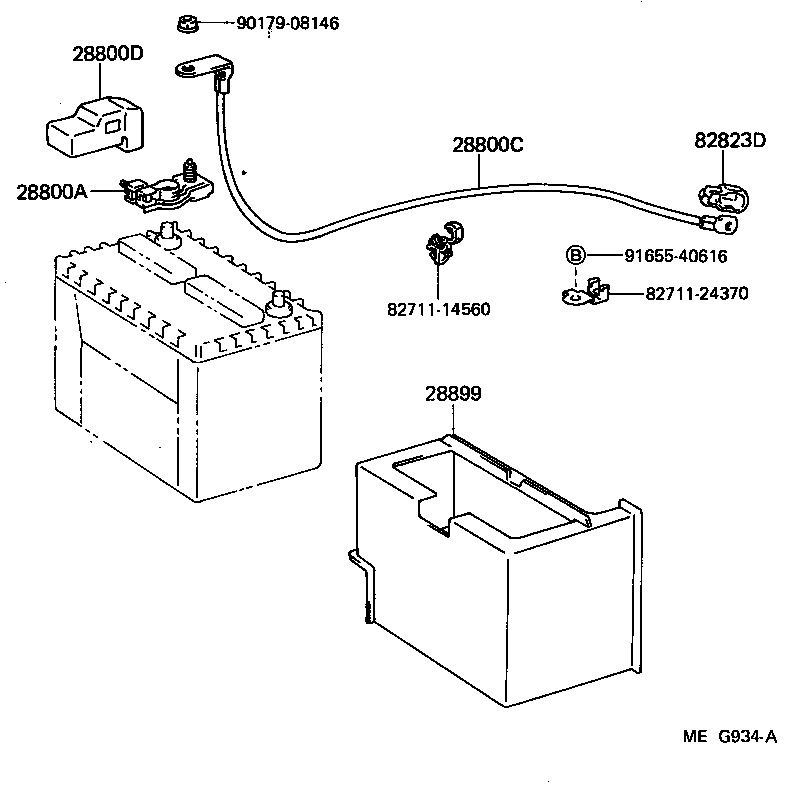

Click highlighted areas on diagram

diagram 28800A 28800C 28800D 28899 8271114560 8271124370 82823D 9017908146 9165540616
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05029

1GEU,1GG#,7MGTEU..GA70,MA70

55D23L

 1
90982-05030

1GEU,1GG#,7MGTEU..GA70,MA70

55D23L

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-24120

1GEU..GA70

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GEU,1GG#,7MGTEU..GA70,MA70

 1
28899 - INSULATOR, BATTERY
28899-42020

1GEU,1GG#,7MGTEU..GA70,MA70

55D23L

 1
82823D - CAP, TERMINAL
82823-20030

GA70,MA70

 1
Common parts
82711-14560
82711-24370
90179-08146
91655-40616
