GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

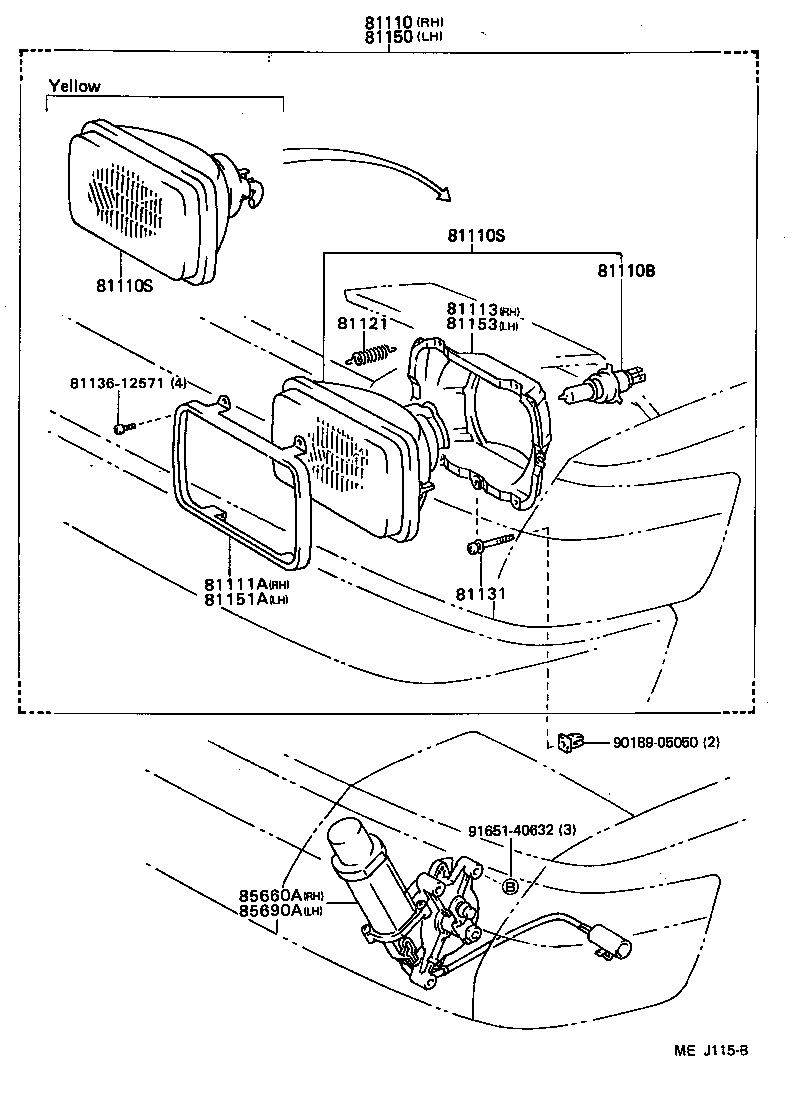

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 85660A 85690A 9018905050 9165140632
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-17020

GA70,MA70

HALOGEN,WHITE

 1
81110-14610

GA70,MA70

HALOGEN,YELLOW

 1
81110-14730

GA70,MA70

HALOGEN,WHITE

 1
81110-14860

GA70,MA70

HALOGEN,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

GA70,MA70

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW

 2
90981-13015

GA70,MA70

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

GA70,MA70

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
90981-04032

GA70,MA70

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04030

GA70,MA70

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
90981-04032

GA70,MA70

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010

GA70,MA70

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010

GA70,MA70

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

GA70,MA70

 2
90075-25501

GA70,MA70

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010

GA70,MA70

 2
81150 - HEADLAMP ASSY, LH
81150-14860

GA70,MA70

HALOGEN,YELLOW

 1
81150-14610

GA70,MA70

HALOGEN,YELLOW

 1
81150-17020

GA70,MA70

HALOGEN,WHITE

 1
81150-14730

GA70,MA70

HALOGEN,WHITE

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010

GA70,MA70

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010

GA70,MA70

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-14040

GA70,MA70

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-14040

GA70,MA70

 1
Common parts
81136-12571
90189-05050
91651-40632
