GA70-BLPSE (1986)
Toyota Supra

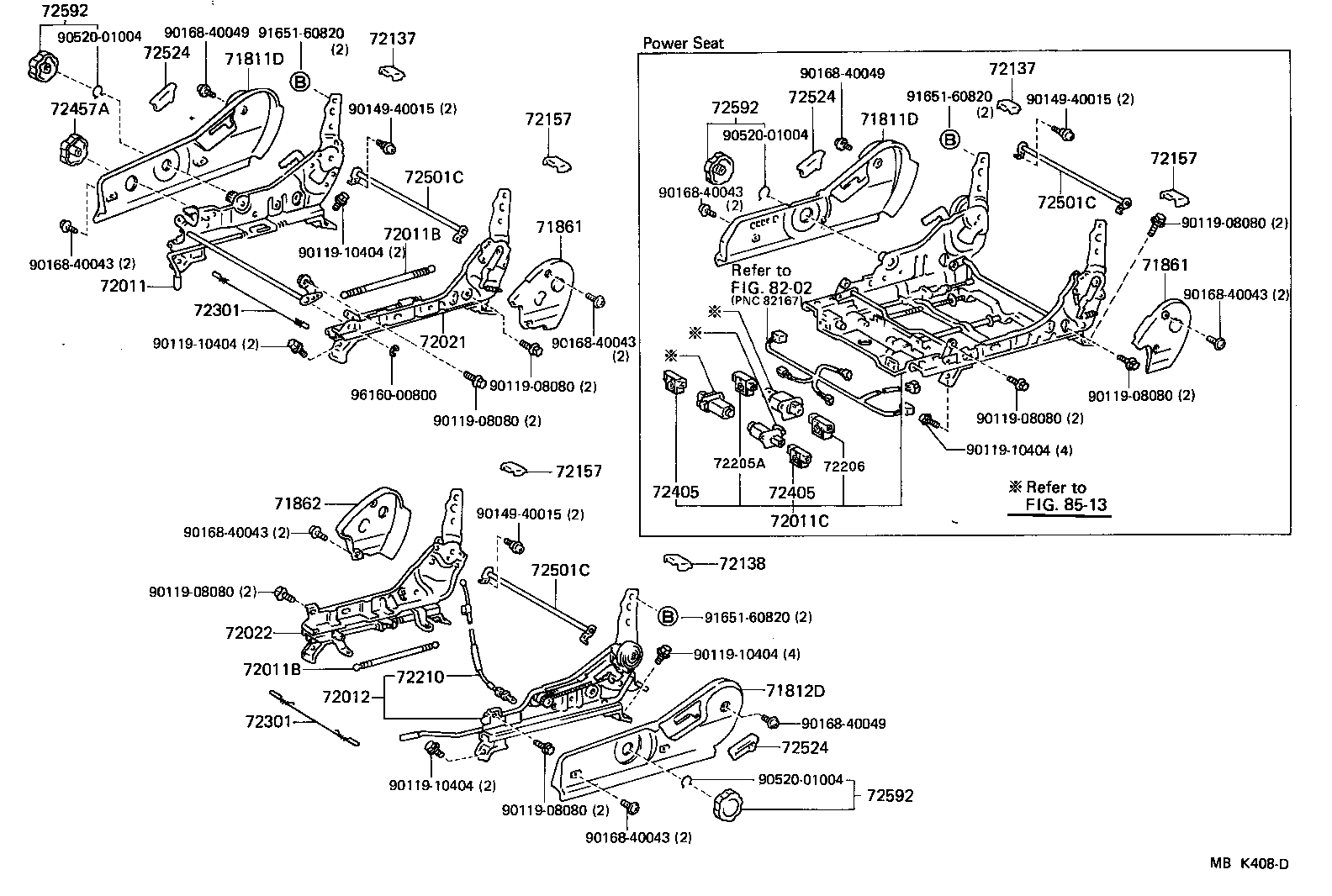

ILLUST NO. 1 OF 2(8602- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D15005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D20002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D20004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D15004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D20005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D20003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D15003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D15002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D26005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D26004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D26002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D26003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D27005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D27003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D27002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D27004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B58005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B57005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B64002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B57002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B64004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B64003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B57004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B58005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B57005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1472004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-1472002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B57002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1472003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1D25005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B67002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-1D25004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1B67005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1D25002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-1B67003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1B67004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D25003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1D08004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D31005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1D08002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-1D08003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D31002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-1D08005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1D31004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D31003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B88002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1B84002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1B84004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1B84005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B88003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1B89005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B88004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B84005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B84002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B84004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D01004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D01002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1D01003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1B89003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20050 |
GA70..S |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20050 |
GA70..S |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14210 |
GA70,MA70 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14020 |
GA70,MA70 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20130 |
GA70..S |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20130 |
GA70..S |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14200 |
GA70 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14250 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1471005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1468002 |
GA70,MA70..G,GT,GTL,GTT FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468005 |
GA70,MA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1471004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
GA70,MA70..G,GT,GTL,GTT FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1471002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1471003 |
GA70..S FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468004 |
GA70,MA70..G,GT,GTL,GTT FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1471005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1468002 |
GA70,MA70..G,GT,GTL,GTT FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468005 |
GA70,MA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1471004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
GA70,MA70..G,GT,GTL,GTT FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1471002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1471003 |
GA70..S FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468004 |
GA70,MA70..G,GT,GTL,GTT FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
ILLUST NO. 1 OF 2(8602- )G,GT,GTL,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D15005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D20002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D20004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D15004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D20005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D20003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D15003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D15002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D26005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D26004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D26002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D26003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D27005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D27003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D27002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D27004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B58005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B57005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B64002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B57002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B64004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B64003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B57004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B58005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B57005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1472004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B58004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-1472002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B57002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B58002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1472003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B57004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14060 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE |
1 | ||
| 71158-14060 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71158-12060 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71158-14070 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14060 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE |
1 | ||
| 71158-14060 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71158-12060 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71158-14070 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE |
1 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14050 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE |
1 | ||
| 71159-12040 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71159-14060 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE |
1 | ||
| 71159-14050 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14050 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE |
1 | ||
| 71159-12040 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71159-14060 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE |
1 | ||
| 71159-14050 |
GA70,MA70..G,GT,GTT |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1D25005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B67002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-1D25004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1B67005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1D25002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-1B67003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1B67004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D25003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1D08004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D31005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1D08002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-1D08003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D31002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-1D08005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1D31004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D31003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B88002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1B84002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1B84004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1B84005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B88003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1B89005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B88004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B84005 |
GA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B84002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1B89004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1B89005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B84004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D01004 |
GA70..G,GT,GTT FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D01002 |
GA70..G,GT,GTT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1D01003 |
GA70..G,GT,GTT FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1B89003 |
GA70..S FB,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14210 |
GA70,MA70 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14020 |
GA70,MA70 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
GA70,MA70..G,GT,GTT RH |
2 | ||
| 71561-14190 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,RH |
1 | ||
| 71561-14210 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,RH |
1 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTT LH |
2 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,LH |
1 | ||
| 71562-14070 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
GA70,MA70..G,GT,GTT RH |
2 | ||
| 71561-14190 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,RH |
1 | ||
| 71561-14210 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,RH |
1 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTT LH |
2 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,LH |
1 | ||
| 71562-14070 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
GA70,MA70..G,GT,GTT RH |
2 | ||
| 71561-14190 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,RH |
1 | ||
| 71561-14210 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,RH |
1 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTT LH |
2 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,LH |
1 | ||
| 71562-14070 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
GA70,MA70..G,GT,GTT RH |
2 | ||
| 71561-14190 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,RH |
1 | ||
| 71561-14210 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,RH |
1 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTT LH |
2 | ||
| 71562-14060 |
GA70,MA70..G,GT,GTL,GTT DRIVER SIDE,LH |
1 | ||
| 71562-14070 |
GA70,MA70..G,GT,GTL,GTT ASSISTANT SIDE,LH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14200 |
GA70 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14250 |
GA70,MA70 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14240 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 71630-14220 |
GA70,MA70..G,GT,GTT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14200 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 71630-14210 |
GA70,MA70..G,GT,GTT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1403002 |
GA70..G,GT,GTT MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1403004 |
GA70..G,GT,GTT BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-1403005 |
GA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-1403003 |
GA70..G,GT,GTT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004305 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
4 | ||
| 90149-5004313 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004304 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004312 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
4 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004305 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
4 | ||
| 90149-5004313 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004304 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004312 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-1403005 |
GA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-1403003 |
GA70..G,GT,GTT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705-1403002 |
GA70..G,GT,GTT MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1403004 |
GA70..G,GT,GTT BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GA70,MA70 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202014 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-1202013 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202005 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
2 | ||
| 71813-1202022 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202014 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-1202013 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202005 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
2 | ||
| 71813-1202022 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201014 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-1201013 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201022 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
2 | ||
| 71814-1201005 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201014 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-1201013 |
GA70,MA70..G,GT,GTL,GTT GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201022 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
2 | ||
| 71814-1201005 |
GA70,MA70..G,GT,GTT BEIGE,BEIGE,TRIM4# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1471005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1468002 |
GA70,MA70..G,GT,GTL,GTT FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468005 |
GA70,MA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1471004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
GA70,MA70..G,GT,GTL,GTT FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1471002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1471003 |
GA70..S FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468004 |
GA70,MA70..G,GT,GTL,GTT FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1471005 |
GA70..S FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1468002 |
GA70,MA70..G,GT,GTL,GTT FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468005 |
GA70,MA70..G,GT,GTT FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1471004 |
GA70..S FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
GA70,MA70..G,GT,GTL,GTT FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1471002 |
GA70..S FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1471003 |
GA70..S FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468004 |
GA70,MA70..G,GT,GTL,GTT FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001055 |
GA70..S ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401005 |
GA70,MA70..G,GT,GTT ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006055 |
GA70..S ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006042 |
GA70..S ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408023 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401014 |
GA70,MA70..G,GT,GTL,GTT ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006020 |
GA70..S ﾛｯｸ付,W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1001042 |
GA70..S ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1006044 |
GA70..S ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408005 |
GA70,MA70..G,GT,GTT ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001044 |
GA70..S ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001020 |
GA70..S ﾛｯｸ無,W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-20070 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 73172A - CAP, FRONT SHOULDER BELT HANGER | ||||
| 73172-1401002 |
GA70,MA70..G,GT,GTL,GTT RH,MAROON,MAROON,TRIM3# |
1 | ||
| 73172-1401004 |
GA70,MA70..G,GT,GTL,GTT RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73173-1402003 |
GA70,MA70..G,GT,GTL,GTT LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73172-1401003 |
GA70,MA70..G,GT,GTL,GTT RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73173-1402002 |
GA70,MA70..G,GT,GTL,GTT LH,MAROON,MAROON,TRIM3# |
1 | ||
| 73173-1402004 |
GA70,MA70..G,GT,GTL,GTT LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73176 - HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT) | ||||
| 73176-1404002 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
1 | ||
| 73176-1404004 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73176-1404003 |
GA70,MA70..G,GT,GTL,GTT GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73177 - HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT) | ||||
| 73177-1404003 |
GA70,MA70..G,GT,GTL,GTT GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73177-1404002 |
GA70,MA70..G,GT,GTL,GTT MAROON,MAROON,TRIM3# |
1 | ||
| 73177-1404004 |
GA70,MA70..G,GT,GTL,GTT BLUE,DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 91651-60818 | ||||
| 93319-15020 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 2 OF 2(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2012005 |
GA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2012013 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2012004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811-2013003 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2012012 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2013002 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2013004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2012005 |
GA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2012013 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2012004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811-2013003 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2012012 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2013002 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2013004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2007005 |
GA70,MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2007013 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2007004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2010003 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2007012 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2010012 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2010004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1401002 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71861-1401005 |
GA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-1401004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861-1401003 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1401002 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71861-1401005 |
GA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-1401004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861-1401003 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1401005 |
GA70,MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71862-1401003 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71862-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-14010 |
GA70..G,GT,GTT |
1 | ||
| 72011-14030 |
GA70..S |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
GA70,MA70 |
2 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
GA70,MA70 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-14020 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 72012-14030 |
GA70..S |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-14010 |
GA70 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-14020 |
GA70,MA70 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1401003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72137-1401005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1401003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72137-1401005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
GA70,MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
GA70,MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401002 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
GA70,MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401003 |
GA70,MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
GA70,MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
GA70,MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401002 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
GA70,MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401003 |
GA70,MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
GA70,MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
GA70,MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401002 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
GA70,MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401003 |
GA70,MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14120 |
GA70..S |
1 | ||
| 77210-14120 |
GA70,MA70 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14060 |
GA70,MA70 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14060 |
GA70,MA70 |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701012 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72457-1701005 |
GA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 72457-1701004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72457-1701013 |
GA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
GA70,MA70 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
GA70,MA70 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
GA70,MA70 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006005 |
GA70,MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005005 |
GA70,MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006012 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2005013 |
GA70,MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006013 |
GA70,MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005012 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006005 |
GA70,MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005005 |
GA70,MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006012 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2005013 |
GA70,MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006013 |
GA70,MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005012 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006005 |
GA70,MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005005 |
GA70,MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
GA70,MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006012 |
GA70,MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2005013 |
GA70,MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006013 |
GA70,MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006004 |
GA70,MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005012 |
GA70,MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401005 |
GA70,MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-1401003 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401005 |
GA70,MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-1401003 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401005 |
GA70,MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-1401003 |
GA70,MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01004 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
