GA70-BLPSE (1986)
Toyota Supra
(8602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-1410004 |
GA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55441-1410002 |
GA70 MAROON,MAROON,TRIM3# |
1 | ||
| 55441-1410005 |
GA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55441-1410003 |
GA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 55546B - COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE | ||||
| 55546-1401005 |
GA70..S BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55546-1401003 |
GA70..S GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 55546-1401004 |
GA70..S BLUE,GRAY,TRIM8# |
1 | ||
| 55546-1401002 |
GA70..S MAROON,MAROON,TRIM3# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002012 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 55547-2002005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55547-2002004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55547-2002013 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58810-1437002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 58810-1437004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58810-1437003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-1437005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-14030 |
GA70,MA70 |
1 | ||
| 58829 - POCKET, CONSOLE BOX | ||||
| 58806-1401005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58806-1401003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58806-1401004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58806-1401002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1405005 |
GA70,MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1405004 |
GA70,MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 58905-1405002 |
GA70,MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 58905-1405003 |
GA70,MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-14020 |
GA70,MA70 |
1 | ||
| 58967B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58967-14030 |
GA70,MA70 |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-14010 |
GA70,MA70 |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
GA70,MA70 |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-14010 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 90189-05024 | ||||
| 90541-04079 | ||||
| 93540-54012 | ||||
| 93567-54516 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-54512 | ||||

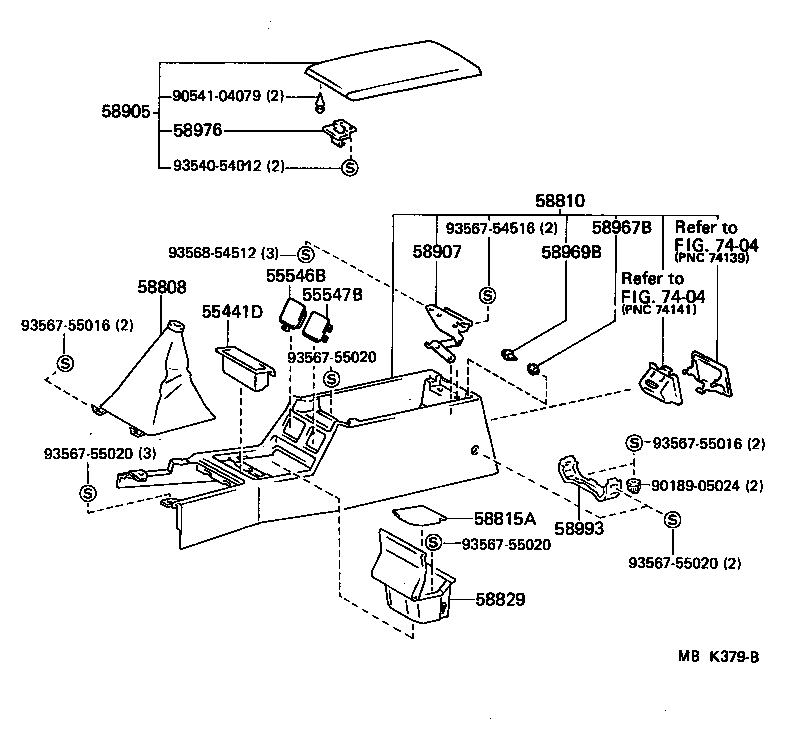

| Linked diagrams | ||||
| 7404 | ||||
