GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

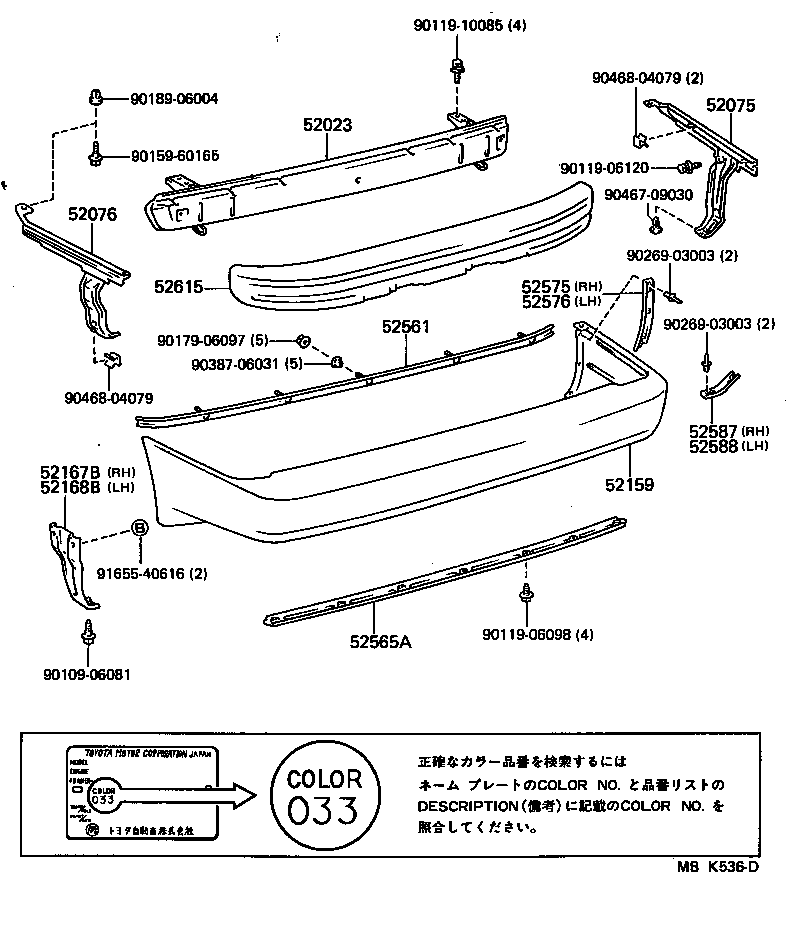

Click highlighted areas on diagram

diagram 52023 52075 52076 52159 52167B 52168B 52561 52565A 52575 52576 52587 52588 52615 9010906081 9011906098 9011906120 9011910085 9015960165 9017906097 9018906004 9026903003 9026903003 9038706031 9046709030 9046804079 9046804079 9165540616
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14140

GA70,MA70

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-14010

GA70,MA70..G,GT,GTT,S

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-14010

GA70,MA70..G,GT,GTT,S

 1
52159 - COVER, REAR BUMPER
52159-1431006

GA70,MA70

BROWN-M,MEDIUM BROWN M,27A

 1
52159-1431008

GA70,MA70..G,GT,GTT,S

WHITE,SUPER WHITE 2,040

 1
52159-1431002

GA70,MA70..G,GT,GTT,S

RED MICA,RED MICA,3H1

 1
52159-1431024

GA70,MA70..G,GT,GTT,S

BLUE MICA,BLUE MICA,8E3

 1
52159-1431003

GA70,MA70..G,GT,GTT,S

SILVER-M,AMETHYST SILVER M,920

 1
52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52167-14100

GA70,MA70

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52168-14040

GA70,MA70

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-14140

GA70,MA70

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14051

GA70,MA70

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-14030

GA70,MA70

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-14030

GA70,MA70

 1
52587 - RETAINER, REAR BUMPER END, RH
52587-14010

GA70,MA70..G,GT,GTT,S

 1
52588 - RETAINER, REAR BUMPER END, LH
52588-14010

GA70,MA70..G,GT,GTT,S

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-14150

GA70,MA70

 1
Common parts
90109-06081
90119-06098
90119-06120
90119-10085
90159-60165
90179-06097
90189-06004
90269-03003
90387-06031
90467-09030
90468-04079
91655-40616
