GA70-BLPSE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8602- )

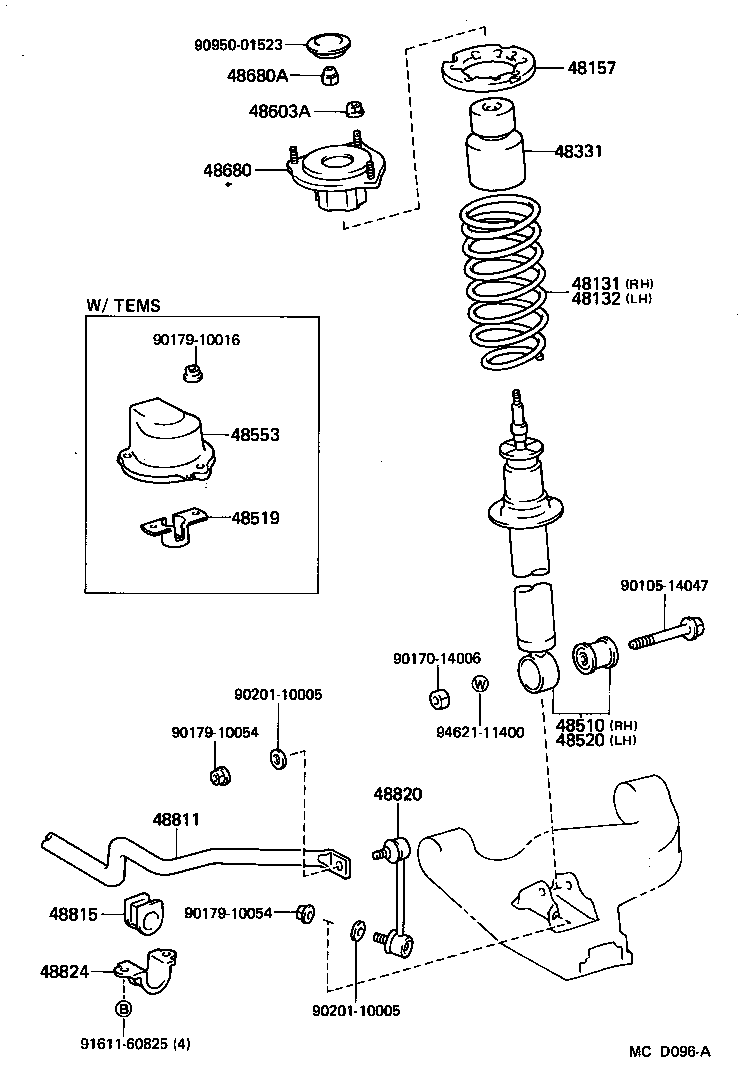

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1B640 |
GA70..G,S |
1 | ||
| 48131-1D090 |
GA70..G,S |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1B750 |
GA70..G,S |
1 | ||
| 48131-1B751 |
GA70..G,S |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-14020 |
GA70,MA70 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-14060 |
GA70,MA70 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-19045 |
GA70..G,GT,S |
1 | ||
| 48510-14430 |
GA70..G,GT,S |
1 | ||
| 48510-14301 |
GA70..G,GT,S |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-19045 |
GA70..G,GT,S |
1 | ||
| 48510-14430 |
GA70..G,GT,S |
1 | ||
| 48510-14301 |
GA70..G,GT,S |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10016 |
GA70,MA70 |
6 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-14041 |
GA70,MA70 |
2 | ||
| 48680-14040 |
GA70,MA70 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94187-11200 |
GA70,MA70 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14291 |
GA70..G,GT,S |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14040 |
GA70..G,GT,S |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-14011 |
GA70,MA70 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-14060 |
GA70,MA70 |
2 | ||
| Common parts | ||||
| 90105-14047 | ||||
| 90170-14006 | ||||
| 90179-10016 | ||||
| 90179-10054 | ||||
| 90201-10005 | ||||
| 90950-01523 | ||||
| 91611-60825 | ||||
| 94621-11400 | ||||
