GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )GA70

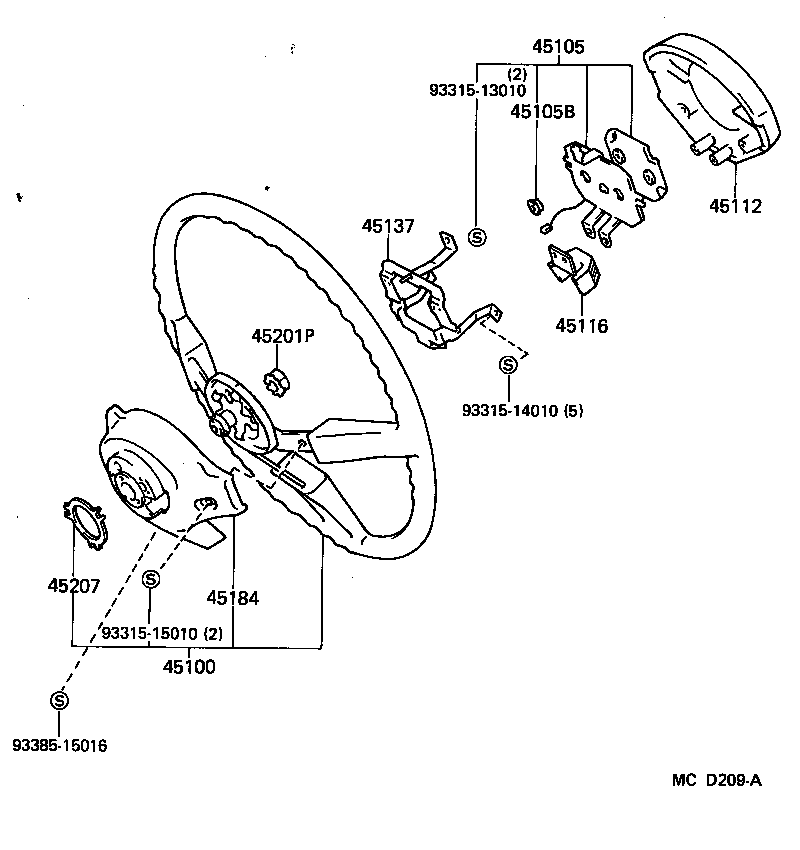

Click highlighted areas on diagram

diagram 45100 45105 45105B 45112 45116 45137 45184 45201P 45207 9331513010 9331514010 9331515010 9338515016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1439002

GA70..G,GT,S

MAROON,MAROON,TRIM3#

 1
45100-1439003

GA70..G,GT,S

GRAY,MEDIUM GRAY,TRIM1#

 1
45100-1439004

GA70..G,GT,S

BLUE,DEEP BLUE,TRIM8#

 1
45100-1439005

GA70..G,GT,S

BEIGE,DARK BEIGE,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14080

GA70

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

GA70,MA70

 2
45112 - PAD, STEERING WHEEL
45112-1413005

GA70,MA70

BEIGE,DARK BEIGE,TRIM4#

 1
45112-1413004

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
45112-1413003

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45112-1413002

GA70,MA70

MAROON,MAROON,TRIM3#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-1403003

GA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45116-1403004

GA70

BLUE,DEEP BLUE,TRIM8#

 1
45116-1403005

GA70

BEIGE,DARK BEIGE,TRIM4#

 1
45116-1403002

GA70

MAROON,MAROON,TRIM3#

 1
45137 - PLATE, HORN BUTTON STOP
45106-14010

GA70,MA70

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1407003

GA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45184-1407004

GA70

BLUE,DEEP BLUE,TRIM8#

 1
45184-1407002

GA70

MAROON,MAROON,TRIM3#

 1
45184-1407005

GA70

BEIGE,DARK BEIGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

GA70,MA70

 1
45207 - RING, HORN CONTACT
45176-20060

GA70

 1
Common parts
93315-13010
93315-14010
93315-15010
93385-15016

(8808-8809)GTTL ; (8902-8903) ; (9008- )GTTR

Click highlighted areas on diagram

(8902-8903)BLACK LIMITED

diagram 45103 45111 45112 45130 45137A 45184 45201P 9014960066
Part # Description Qty Price
Common parts
90149-60066
