GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )4FC

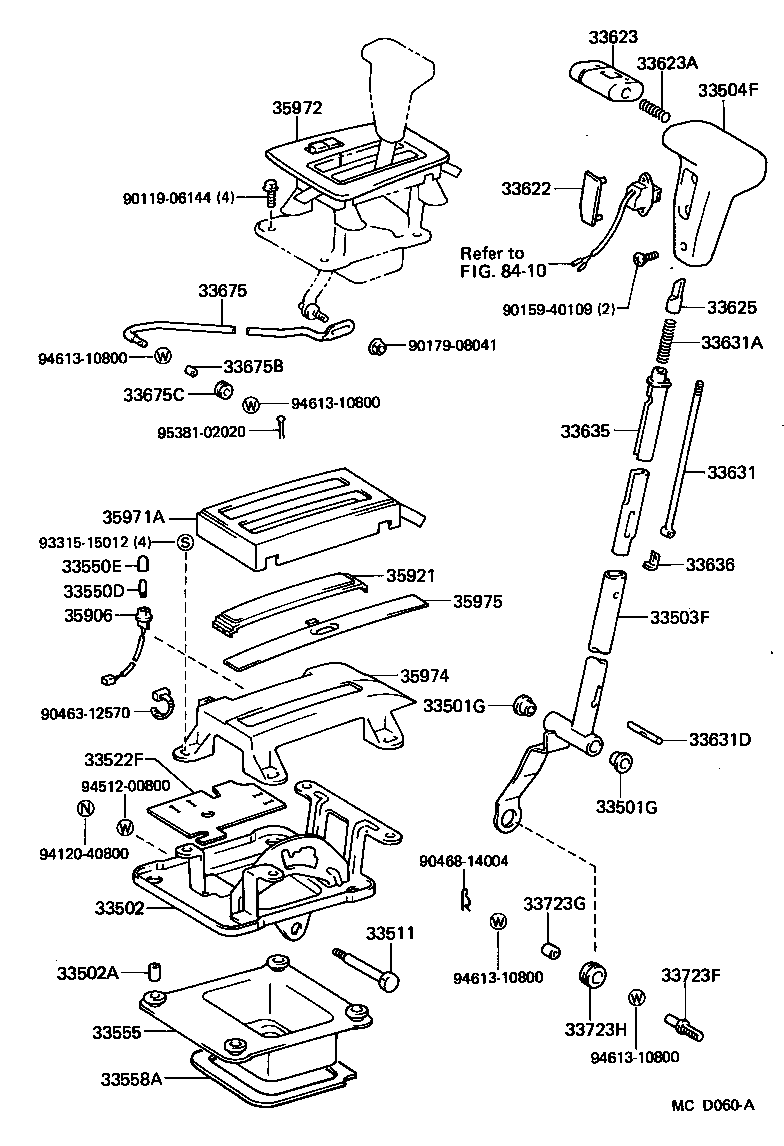

Click highlighted areas on diagram

diagram 33501G 33501G 33502 33502A 33503F 33504F 33511 33522F 33550D 33550E 33555 33558A 33622 33623 33623A 33625 33631 33631A 33631D 33635 33636 33675 33675B 33675C 33723F 33723G 33723H 35906 35921 35971A 35972 35974 35975 8410 9011906144 9015940109 9017908041 9046312570 9046814004 9331515012 9412040800 9451200800 9461310800 9461310800 9461310800 9461310800 9538102020
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-11003

GA70,MA70..4FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-11003

GA70,MA70..4FC

 2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-14130

GA70,MA70..4FC

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

GA70,MA70..4FC

外径=8.8

 4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-14150

GA70,MA70..4FC

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204015

GA70,MA70..4FC

BEIGE,DARK BEIGE,TRIM4#

 1
33542-3204013

GA70,MA70..4FC

GRAY,MEDIUM GRAY,TRIM1#

 1
33542-3204012

GA70,MA70..4FC

MAROON,MAROON,TRIM3#

 1
33542-3204024

GA70,MA70..4FC

BLUE,DEEP BLUE,TRIM8#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-22160

GA70,MA70..4FC

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-14020

GA70,MA70..4FC

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

GA70,MA70..4FC

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04014

GA70,MA70..4FC

 1
33555 - BOOT, SHIFT LEVER
33555-14060

GA70,MA70..4FC

 1
33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1
33558-14010

GA70,MA70..4FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601025

GA70,MA70..4FC

BEIGE,DARK BEIGE,TRIM4#

 1
33622-1601012

GA70,MA70..4FC

MAROON,MAROON,TRIM3#

 1
33622-1601024

GA70,MA70..4FC

BLUE,BLUE,TRIM8#

 1
33622-1601033

GA70,MA70..4FC

GRAY,MEDIUM GRAY,TRIM1#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1403003

GA70,MA70..4FC

GRAY,MEDIUM GRAY,TRIM1#

 1
33623-1403004

GA70,MA70..4FC

BLUE,DEEP BLUE,TRIM8#

 1
33623-1403002

GA70,MA70..4FC

MAROON,MAROON,TRIM3#

 1
33623-1403005

GA70,MA70..4FC

BEIGE,DARK BEIGE,TRIM4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

GA70,MA70..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010

GA70,MA70..4FC

 1
33631 - ROD, DETENT
33631-27020

GA70,MA70..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

GA70,MA70..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

GA70,MA70..4FC

 1
33635 - GUIDE, WIRE (FOR SHIFT LEVER)
33635-14020

GA70,MA70..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

GA70,MA70..4FC

 1
33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
33675-14140

GA70..4FC..(G,GT,S)

 1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90389-08005

GA70,MA70..4FC

 1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17177

GA70,MA70..4FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

GA70,MA70..4FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005

GA70,MA70..4FC

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17001

GA70,MA70..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-14020

GA70,MA70..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-14180

GA70,MA70..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-14120

GA70,MA70..4FC

 1
35972 - COVER, POSITION INDICATOR HOUSING
35972-14020

GA70..4FC..(G,S)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-14120

GA70,MA70..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-14070

GA70,MA70..4FC

 1
Common parts
90119-06144
90159-40109
90179-08041
90463-12570
90468-14004
93315-15012
94120-40800
94512-00800
94613-10800
95381-02020
Linked diagrams
8410
