GA70-BLPSE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8602- )1GEU

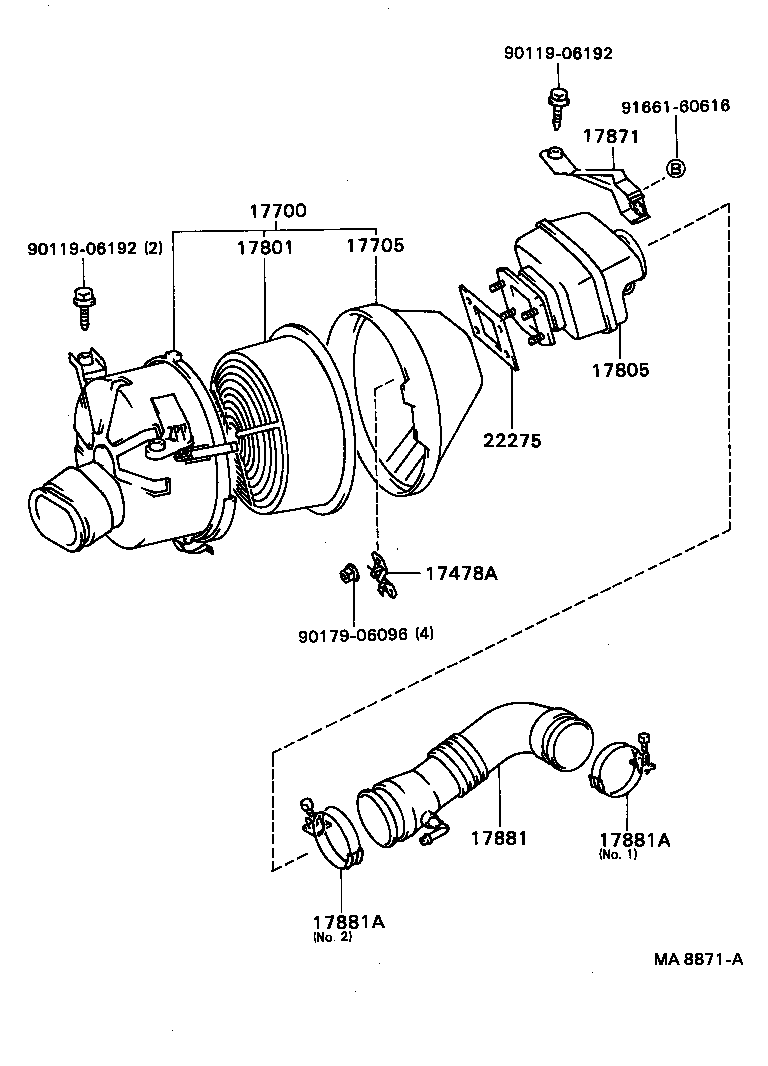

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17478A - PLATE, LOCK | ||||
| 17478-43010 |
1GEU,1GG#..GA70 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70050 |
1GEU,1GG#..GA70 |
1 | ||
| 17700-70060 |
1GEU..GA70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-70050 |
1GEU,1GG#..GA70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
1GEU,1GG#..GA70 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-70050 |
1GEU,1GGEU..GA70 |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-70010 |
1GEU,1GGEU..GA70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-70180 |
1GEU..GA70 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GEU..GA70 NO.1 |
1 | ||
| 96111-10800 |
1GEU,1GGEU..GA70 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GEU..GA70 NO.1 |
1 | ||
| 96111-10800 |
1GEU,1GGEU..GA70 NO.2 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
1GEU,1GG#..GA70 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90179-06096 | ||||
| 91661-60616 | ||||
