GA70-BLPSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )1GEU,1GGEU

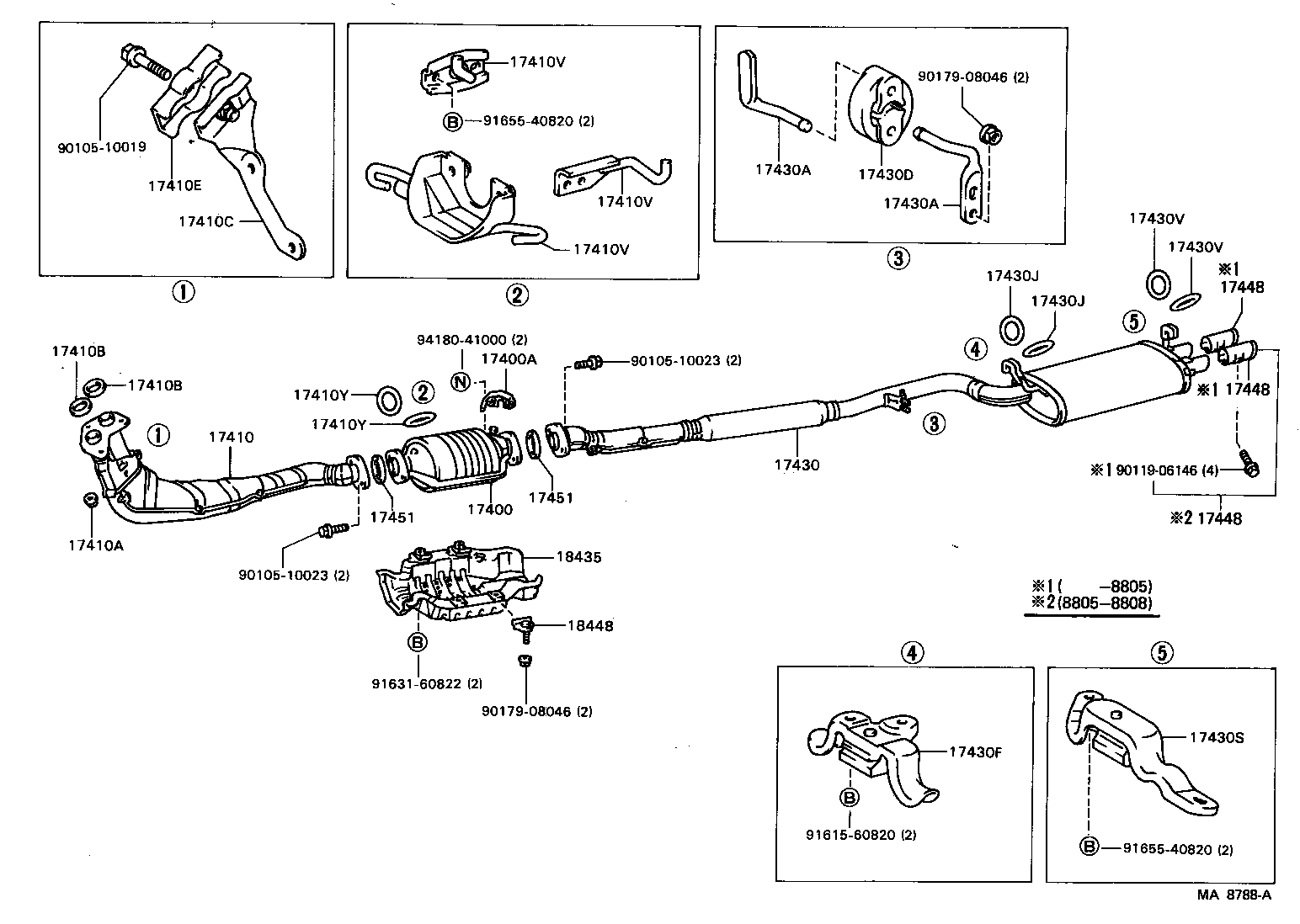

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410V 17410V 17410Y 17410Y 17430 17430A 17430A 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17448 17448 17448 17451 17451 18435 18448 9010510019 9010510023 9010510023 9011906146 9017908046 9017908046 9161560820 9163160822 9165540820 9165540820 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-70050

1GEU,1GGEU..GA70

 1
18450-70060

1GEU,1GGEU..GA70

 1
17400A - FLANGE, THERMOSENSER INLET
18491-63010

1GEU,1GG#,7MGTEU..GA70,MA70

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70160

1GEU..GA70;1GGEU..GA70..5F

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GEU,1GG#,7MGTEU..GA70,MA70

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1GEU,1GGEU..GA70

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1GEU,1GGEU..GA70

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-70030

1GEU,1GGEU..GA70

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1GEU,1GGEU..GA70

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17504-70030

1GEU,1GG#,7MGTEU..GA70,MA70

SIDE MEMBER

 1
17503-70110

1GEU,1GGEU..GA70

CCO SUPPORT

 1
17505-70080

1GEU,1GG#,7MGTEU..GA70,MA70..4FC

ENGINE REAR MOUNTING

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17504-70030

1GEU,1GG#,7MGTEU..GA70,MA70

SIDE MEMBER

 1
17503-70110

1GEU,1GGEU..GA70

CCO SUPPORT

 1
17505-70080

1GEU,1GG#,7MGTEU..GA70,MA70..4FC

ENGINE REAR MOUNTING

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17504-70030

1GEU,1GG#,7MGTEU..GA70,MA70

SIDE MEMBER

 1
17503-70110

1GEU,1GGEU..GA70

CCO SUPPORT

 1
17505-70080

1GEU,1GG#,7MGTEU..GA70,MA70..4FC

ENGINE REAR MOUNTING

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70300

1GEU..GA70

 1
17430-70300

1GEU,1GGEU..GA70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-70020

1GEU,1GG#,7MGTEU..GA70,MA70

LWR

 1
17572-70030

1GEU,1GG#,7MGTEU..GA70,MA70

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-70020

1GEU,1GG#,7MGTEU..GA70,MA70

LWR

 1
17572-70030

1GEU,1GG#,7MGTEU..GA70,MA70

UPR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-16020

1GEU,1GG#,7MGTEU..GA70,MA70

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-13010

1GEU,1GG#,7MGTEU..GA70,MA70

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

1GEU,1GG#,7MGTEU..GA70,MA70

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448 - BAFFLE, TAIL PIPE
17448-74030

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448-79015

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448 - BAFFLE, TAIL PIPE
17448-74030

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448-79015

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448 - BAFFLE, TAIL PIPE
17448-74030

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17448-79015

1GEU,1GG#,7MGTEU..GA70,MA70

 2
17451 - GASKET, EXHAUST PIPE
90917-06023

1GEU,1GGEU..GA70

FR

 1
90917-06012

1GEU,1GGEU..GA70

RR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

1GEU,1GGEU..GA70

FR

 1
90917-06012

1GEU,1GGEU..GA70

RR

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-70010

1GEU,1GGEU..GA70

 1
18407-28011

1GEU,1GGEU..GA70

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1GEU,1GG#,7MGTEU..GA70,MA70

 2
Common parts
90105-10019
90105-10023
90119-06146
90179-08046
91615-60820
91631-60822
91655-40820
94180-41000
