GA70-BLPGK (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-8908) ; (8908- )NOB

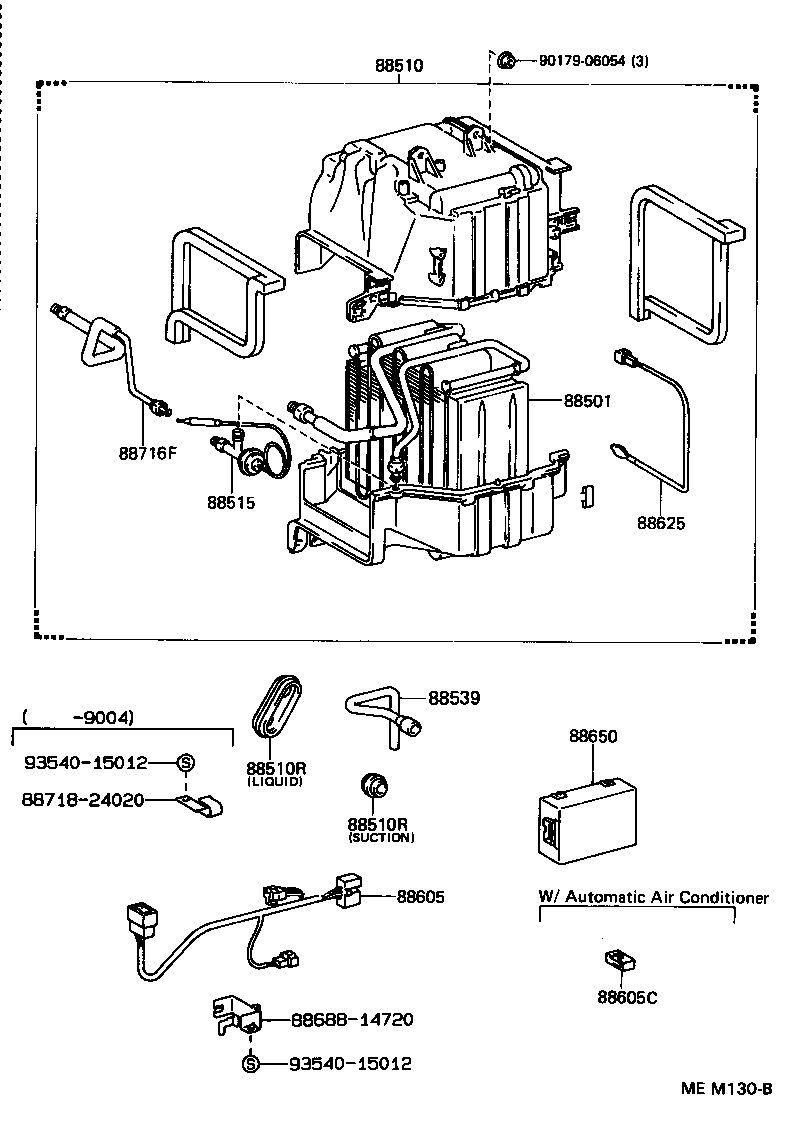

Click highlighted areas on diagram

diagram 88501 88510 88510R 88510R 88515 88539 88605 88605C 88625 88650 8868814720 88716F 8871824020 9017906054 9354015012 9354015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-24031

GA70,MA70

ﾃﾞｰﾗ ｵﾌﾟｼﾖﾝ

 1
88510 - UNIT ASSY, COOLER
88510-24090

GA70,MA70

 1
88510-24090

GA70..NOB

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26004

GA70,JZA70,MA70

SUCTION PIPE

 1
90480-24008

GA70,JZA70,MA70

LIQUID PIPE

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26004

GA70,JZA70,MA70

SUCTION PIPE

 1
90480-24008

GA70,JZA70,MA70

LIQUID PIPE

 1
88515 - VALVE, COOLER EXPANSION
88515-20050

GA70,MA70

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-24050

GA70,MA70

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14780

GA70,MA70

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-14850

GA70,MA70

 1
88625 - THERMISTOR, COOLER, NO.1
88625-24050

GA70,JZA70,MA70

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14250

GA70,MA70

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-24070

GA70,MA70

 1
Common parts
88688-14720
88718-24020
90179-06054
93540-15012
