GA70-BLPGK (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

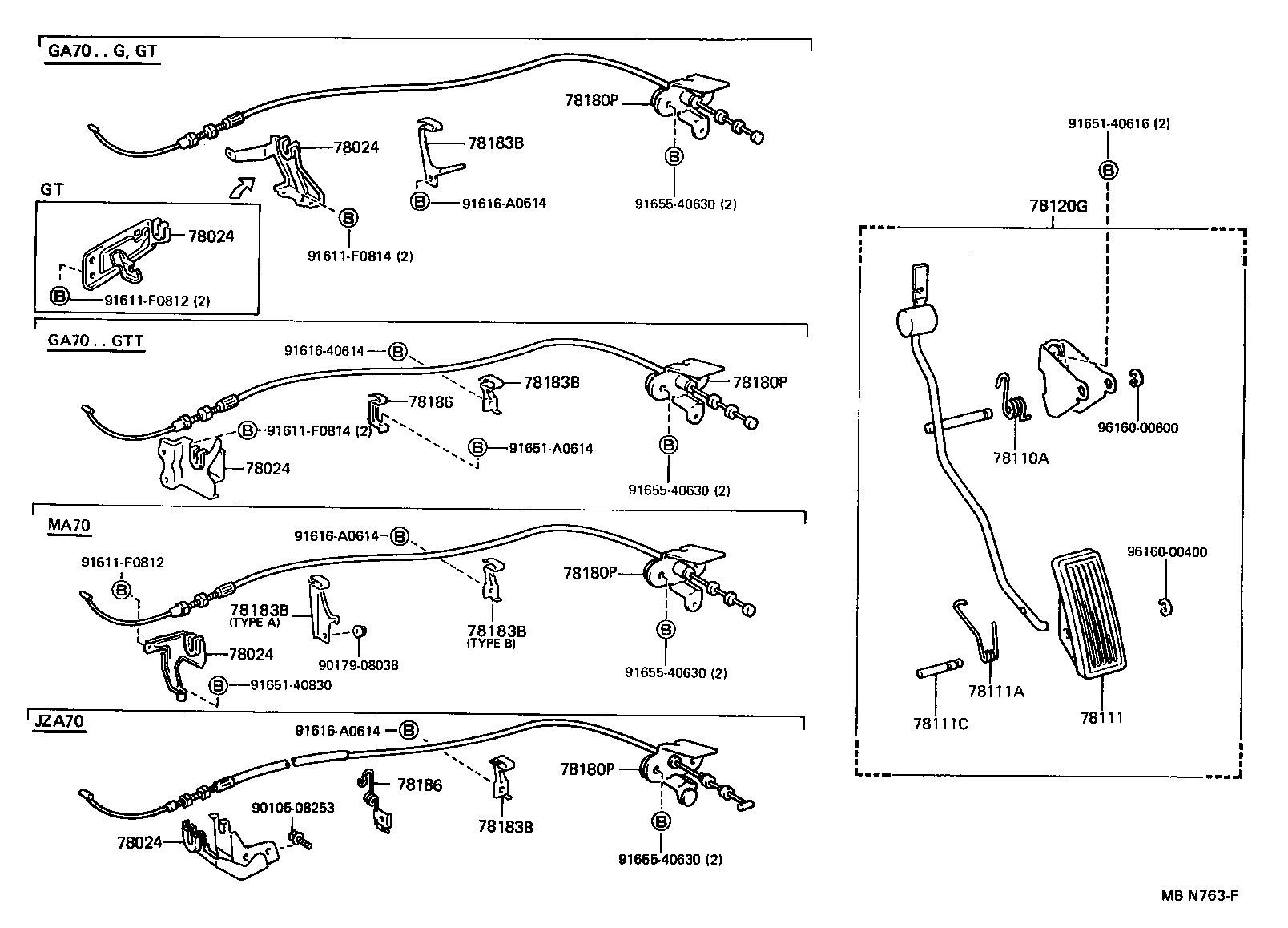

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78024 78110A 78111 78111A 78111C 78120G 78180P 78180P 78180P 78180P 78183B 78183B 78183B 78183B 78183B 78186 78186 9010508253 9017908038 91611F0812 91611F0812 91611F0814 91611F0814 9161640614 91616A0614 91616A0614 91616A0614 9165140616 9165140830 91651A0614 9165540630 9165540630 9165540630 9165540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22110

GA70..G

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22110

GA70..G

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22110

GA70..G

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22110

GA70..G

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22110

GA70..G

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18060

GA70,JZA70,MA70..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23088

GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-14471

GA70,JZA70,MA70..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-14800

GA70..G

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-14800

GA70..G

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-14800

GA70..G

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-14800

GA70..G

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
90959-01243

GA70..G,GT

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
90959-01243

GA70..G,GT

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
90959-01243

GA70..G,GT

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
90959-01243

GA70..G,GT

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
90959-01243

GA70..G,GT

 1
Common parts
90105-08253
90179-08038
91611-F0812
91611-F0814
91616-40614
91616-A0614
91651-40616
91651-40830
91651-A0614
91655-40630
96160-00400
96160-00600
