GA70-BLPGK (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

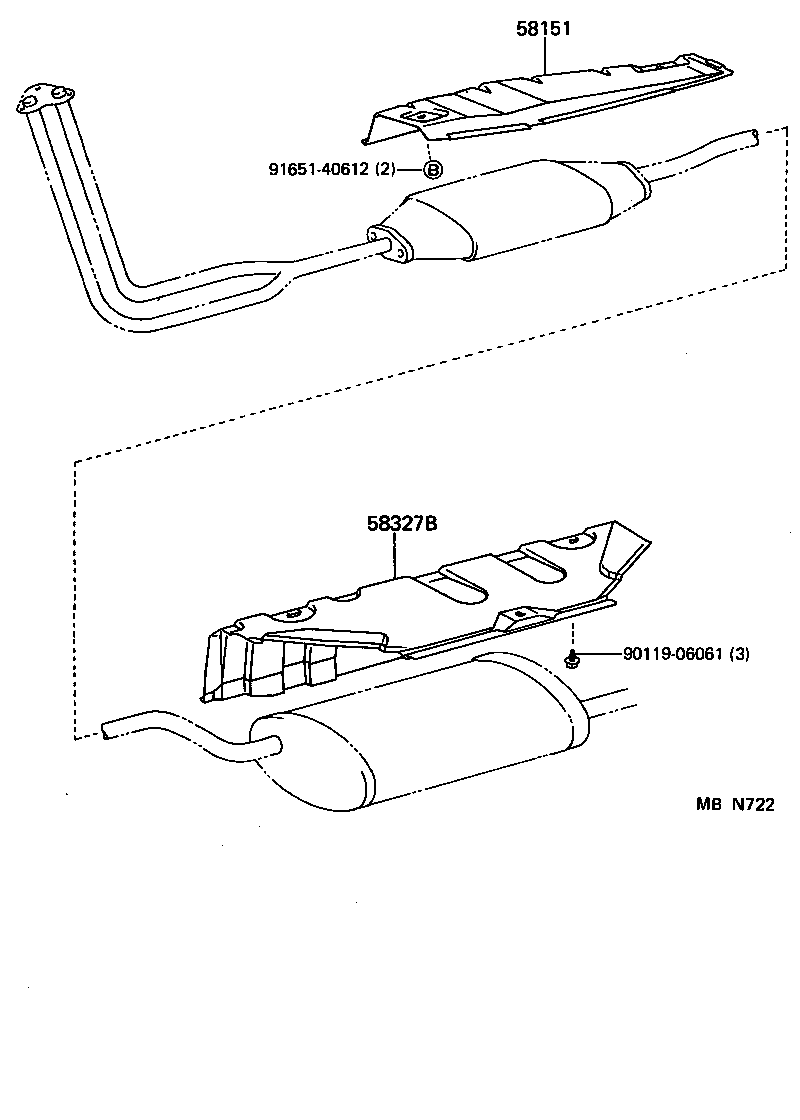

Click highlighted areas on diagram

diagram 58151 58327B 9011906061 9165140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-14080

GA70,JZA70,MA70

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-14040

GA70,JZA70,MA70

 1
Common parts
90119-06061
91651-40612
