GA70-BLPGK (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

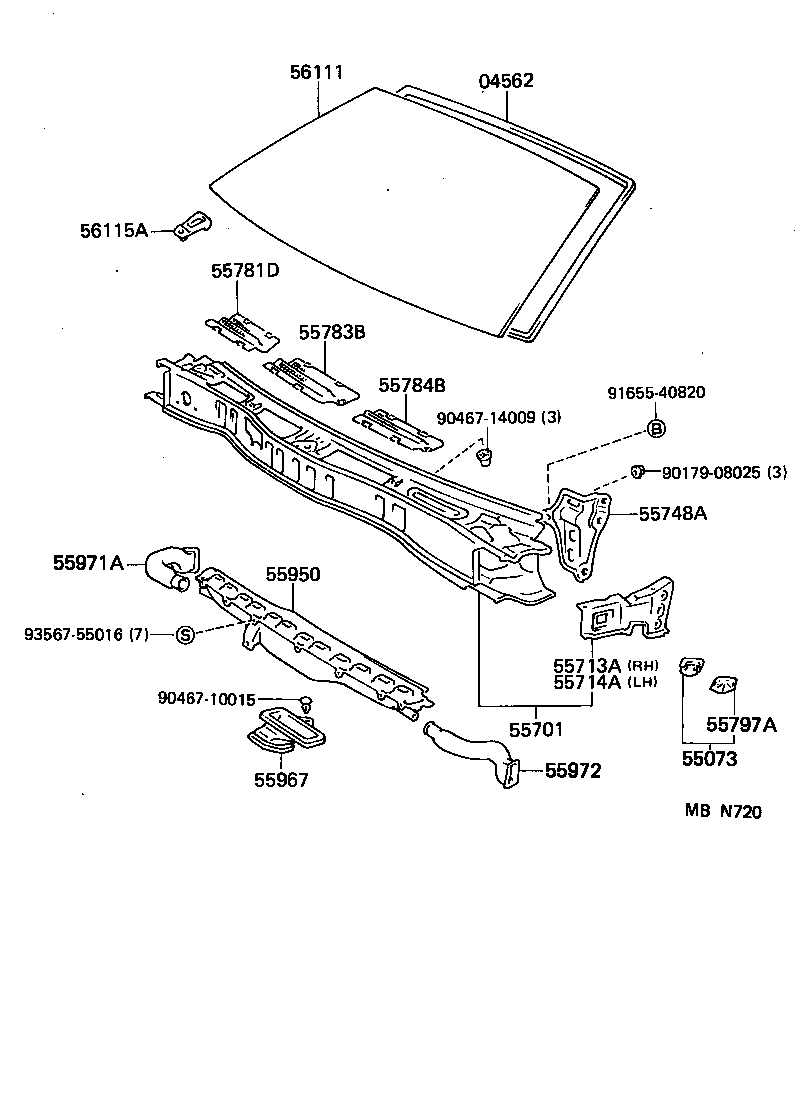

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
GA70,JZA70,MA70 |
1 | ||
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-20020 |
GA70,JZA70,MA70 |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-14740 |
JZA70;GA70..G,GT |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-14100 |
GA70,JZA70,MA70 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-14100 |
GA70,JZA70,MA70 |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-14040 |
GA70,JZA70,MA70 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-14130 |
GA70,JZA70,MA70 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-14090 |
GA70,JZA70,MA70 |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-14110 |
GA70,JZA70,MA70 |
1 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-20030 |
GA70,JZA70,MA70 |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55951-14171 |
GA70,JZA70,MA70 |
1 | ||
| 55967 - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-14010 |
GA70,JZA70,MA70 |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-14040 |
GA70,JZA70,MA70 |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-14050 |
GA70,JZA70,MA70 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-14500 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *TL,T=5.3,ﾌﾞﾙ- ﾃｲﾝﾃﾂﾄﾞ |
1 | ||
| 56111-14490 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *LAM,T=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-14010 |
GA70,JZA70,MA70 |
2 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90467-10015 | ||||
| 90467-14009 | ||||
| 91655-40820 | ||||
| 93567-55016 | ||||
