GA70-BLPGK (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

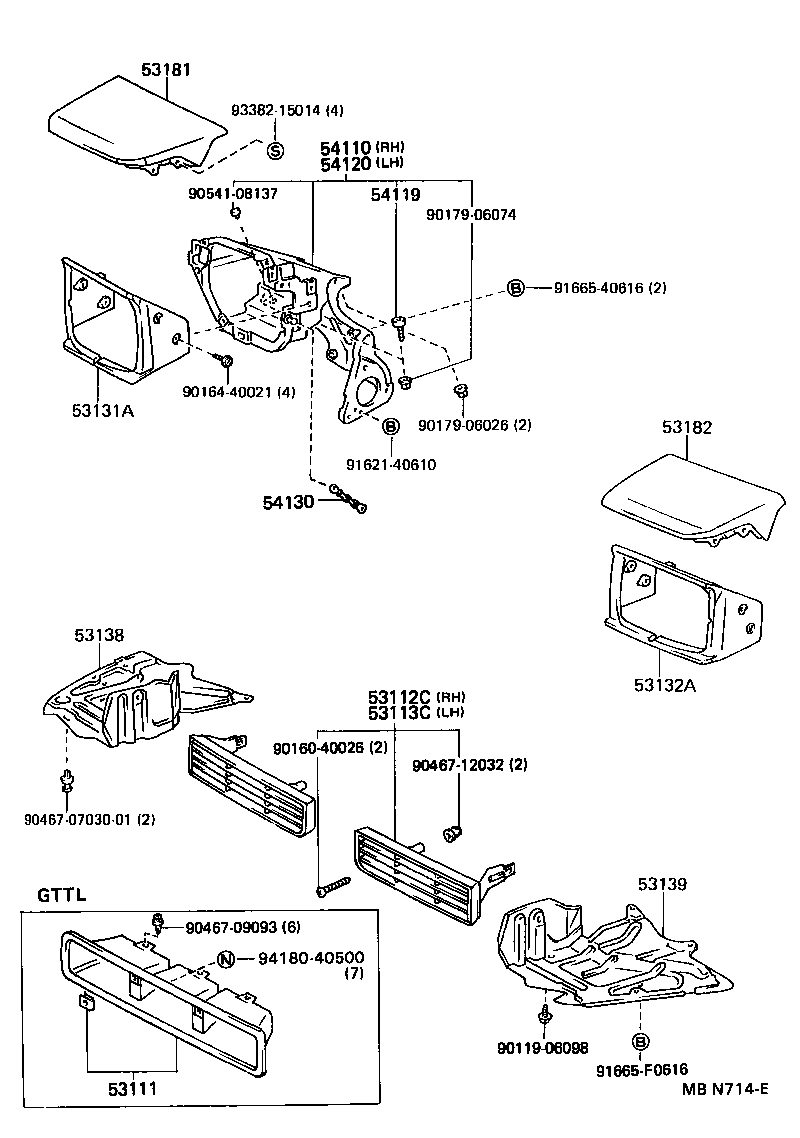

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-14060 |
GA70,JZA70,MA70 |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-14030 |
GA70,JZA70,MA70 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-14340 |
GA70,JZA70,MA70 |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-14340 |
GA70,JZA70,MA70 |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-14110 |
GA70,JZA70 |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-14140 |
GA70,JZA70,MA70 |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-14040 |
GA70,JZA70,MA70 |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-14040 |
GA70,JZA70,MA70 |
1 | ||
| 54110 - BRACKET ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-14040 |
GA70,MA70 |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14030 |
GA70,JZA70,MA70 |
2 | ||
| 54120 - BRACKET ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-14040 |
GA70,MA70 |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-14040 |
GA70,JZA70,MA70 |
2 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90160-40026 | ||||
| 90164-40021 | ||||
| 90179-06026 | ||||
| 90179-06074 | ||||
| 90467-0703001 | ||||
| 90467-09093 | ||||
| 90467-12032 | ||||
| 90541-08137 | ||||
| 91621-40610 | ||||
| 91665-40616 | ||||
| 91665-F0616 | ||||
| 93382-15014 | ||||
| 94180-40500 | ||||
