GA70-BLPGE (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8602-8701)1GEU

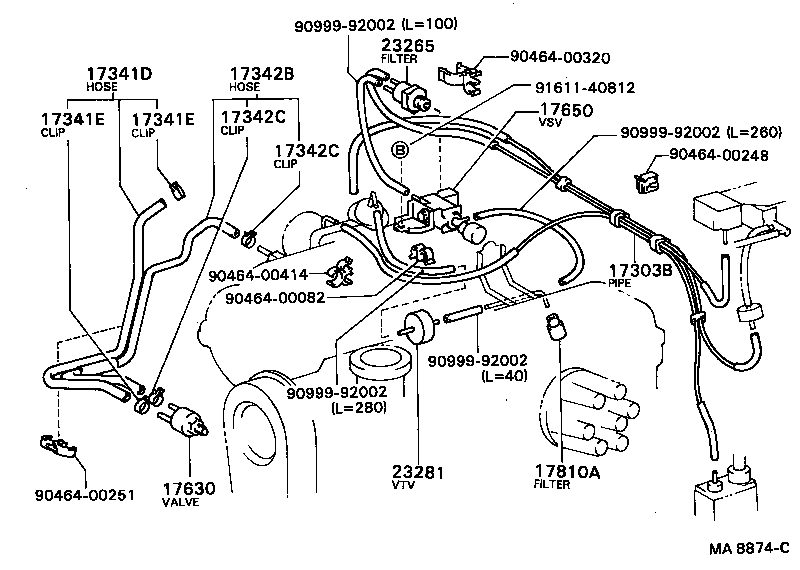

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-70040 |
1GEU..GA70 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17342-70080 |
1GEU..GA70 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GA70 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GA70 |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17341-70090 |
1GEU..GA70 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU..GA70 |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU..GA70 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
1GEU..GA70 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-30010 |
1GEU..GA70 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
1GEU,1GGTEU..GA70 |
1 | ||
| 90925-06006 |
1GEU,1GG#..GA70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
1GEU..GA70 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
1GEU..GA70 |
1 | ||
| 90925-01021 |
1GEU,1GGEU..GA70 |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90464-00251 | ||||
| 90464-00320 | ||||
| 90464-00414 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
(8602- )1GEU,1GG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
