GA70-BLMVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )LB

Click highlighted areas on diagram

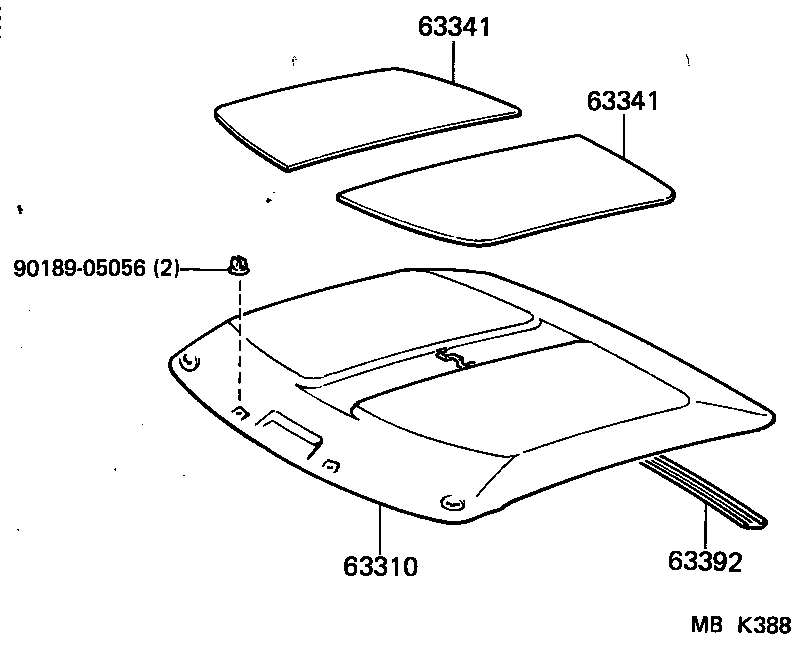

diagram 63310 63341 63341 63392 9018905056
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1462002

GA70,MA70..LB..(G,GT,GTT)

MAROON,MAROON,TRIM3#

 1
63310-1462105

GA70,MA70..LB..(G,GT,GTT)

BEIGE,DARK BEIGE,TRIM4#

 1
63310-1462005

GA70,MA70..LB..(G,GT,GTT)

BEIGE,BEIGE,TRIM4#

 1
63310-1462103

GA70,MA70..LB..(G,GT,GTL,GTT)

GRAY,MEDIUM GRAY,TRIM1#

 1
63310-1462102

GA70,MA70..LB..(G,GT,GTL,GTT)

MAROON,MAROON,TRIM3#

 1
63310-1462104

GA70,MA70..LB..(G,GT,GTL,GTT)

BLUE,DEEP BLUE,TRIM8#

 1
63310-1462004

GA70,MA70..LB..(G,GT,GTT)

BLUE,DEEP BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-14060

GA70,MA70..LB

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-14060

GA70,MA70..LB

 2
63392 - TRIM, ROOF HEADLINING, REAR
63392-1405004

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
63392-1405005

GA70,MA70

BEIGE,DARK BEIGE,TRIM4#

 1
63392-1405002

GA70,MA70

MAROON,MAROON,TRIM3#

 1
63392-1405003

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
Common parts
90189-05056
