GA70-BLMVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

Click highlighted areas on diagram

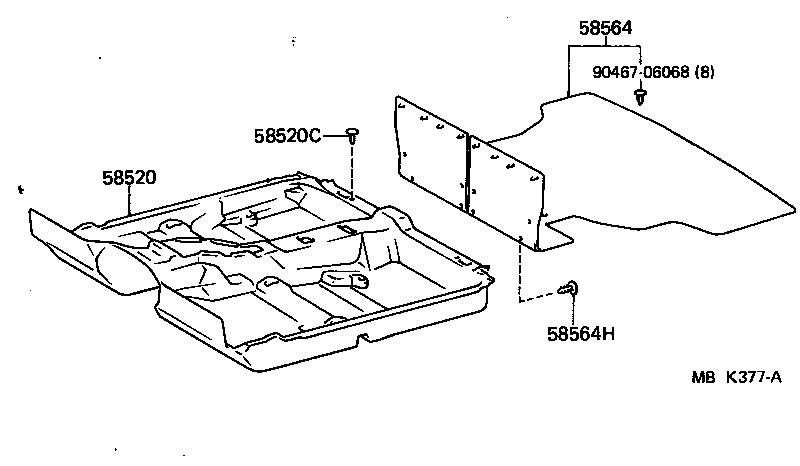

diagram 58520 58520C 58564 58564H 9046706068
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1B02002

GA70..GT

MAROON,MAROON,TRIM3#

 1
58510-1B02005

GA70..GT

BEIGE,DARK BEIGE,TRIM4#

 1
58510-1B02003

GA70..GT

GRAY,MEDIUM GRAY,TRIM1#

 1
58510-1488003

GA70..G,GTT

GRAY,MEDIUM GRAY,TRIM1#

 1
58510-1488002

GA70..G,GTT

MAROON,MAROON,TRIM3#

 1
58510-1B04004

GA70..GT

BLUE,DEEP BLUE,TRIM8#

 1
58510-1B04003

GA70..GT

GRAY,MEDIUM GRAY,TRIM1#

 1
58510-1488005

GA70..G,GTT

BEIGE,DARK BEIGE,TRIM4#

 1
58510-1B04002

GA70..GT

MAROON,MAROON,TRIM3#

 1
58510-1488004

GA70..G,GTT

BLUE,DEEP BLUE,TRIM8#

 1
58510-1B02004

GA70..GT

BLUE,DEEP BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601601

GA70,MA70

BLACK,BLACK

 2
58564 - CARPET, REAR FLOOR
58570-1428003

GA70,MA70..G,GT,GTL,GTT

GRAY,MEDIUM GRAY,TRIM1#

 1
58570-1428004

GA70,MA70..G,GT,GTL,GTT

BLUE,DEEP BLUE,TRIM8#

 1
58570-1428002

GA70,MA70..G,GT,GTL,GTT

MAROON,MAROON,TRIM3#

 1
58570-1428005

GA70,MA70..G,GT,GTT

BEIGE,DARK BEIGE,TRIM4#

 1
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-0607005

GA70,MA70

BEIGE,DARK BEIGE,TRIM4#

 10
90467-0607004

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 10
90467-0607002

GA70,MA70

MAROON,MAROON,TRIM3#

 10
90467-0607003

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 10
Common parts
90467-06068
