GA70-BLMVZ (1986)
Toyota Supra
Production
Feb 1986
-
Aug 1988
Engine
1GGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8602- )

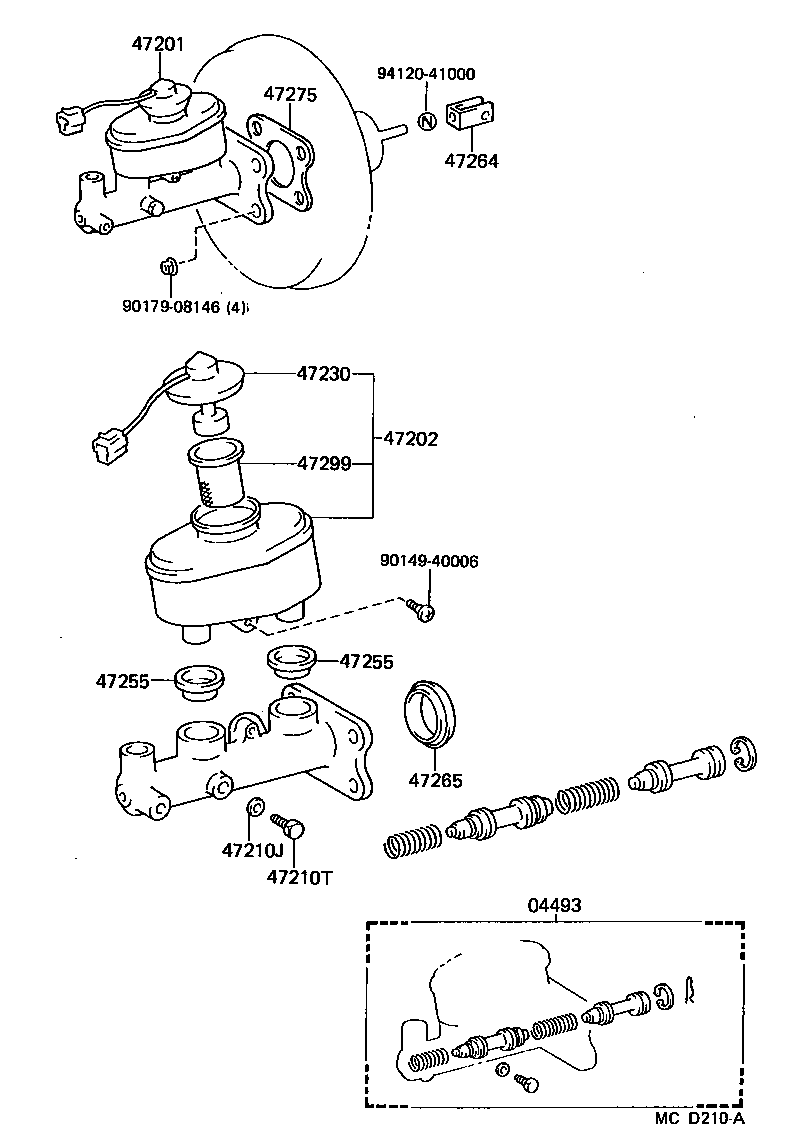

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14120 |
GA70,MA70..GT,GTT |
1 | ||
| 04493-24030 |
GA70,MA70..GT,GTT |
1 | ||
| 04493-14110 |
GA70..G,S |
1 | ||
| 04493-14131 |
GA70,MA70..GTL,GTT W/ESC |
1 | ||
| 04493-14130 |
GA70,MA70..GTL,GTT W/ESC |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-24040 |
GA70,MA70..GTT |
1 | ||
| 47201-24030 |
GA70..GT |
1 | ||
| 47201-14520 |
GA70..G,S |
1 | ||
| 47201-14580 |
GA70,MA70..GTL,GTT W/ESC |
1 | ||
| 47201-14540 |
GA70,MA70..GTT |
1 | ||
| 47201-14530 |
GA70..GT |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-14280 |
GA70..G,GT,S |
1 | ||
| 47202-14310 |
GA70,MA70..GTL,GTT |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GA70,MA70 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
GA70,MA70 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-14060 |
GA70,MA70 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
GA70,MA70 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
GA70,MA70 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GA70..G,S |
1 | ||
| 47264-30040 |
GA70,MA70..GT,GTL,GTT |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GA70,MA70 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
GA70,MA70 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
GA70,MA70 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
