GA70-BLMVF (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

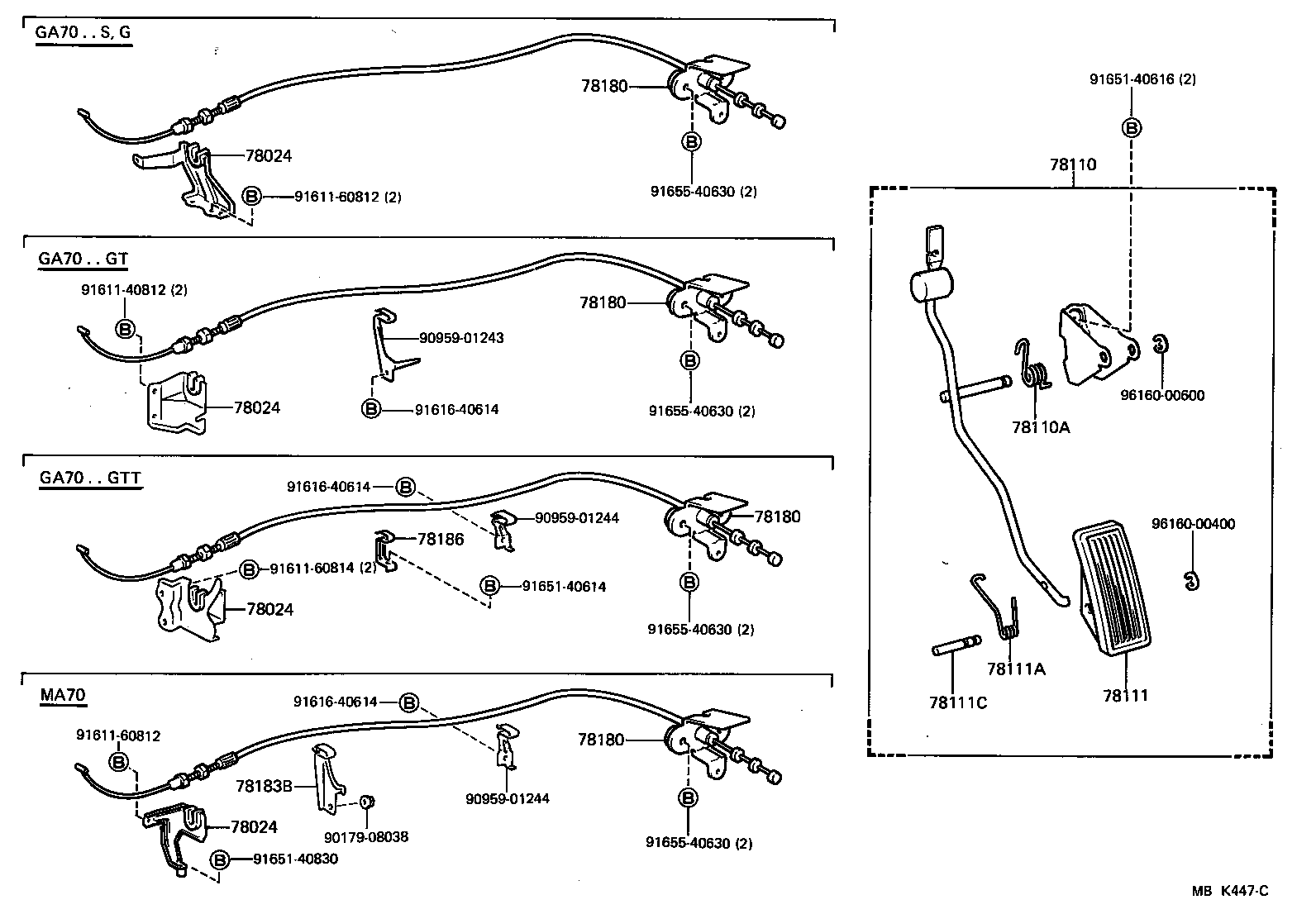

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78110 78110A 78111 78111A 78111C 78180 78180 78180 78180 78183B 78186 9017908038 9095901243 9095901244 9095901244 9161140812 9161160812 9161160812 9161160814 9161640614 9161640614 9161640614 9165140614 9165140616 9165140830 9165540630 9165540630 9165540630 9165540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA70..G,S

 1
78024-30070

GA70..GT

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA70..G,S

 1
78024-30070

GA70..GT

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA70..G,S

 1
78024-30070

GA70..GT

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA70..G,S

 1
78024-30070

GA70..GT

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14431

GA70..5F..(G,GT,S)

 1
78120-14430

GA70..5F..(G,GT,S)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

GA70..5F..(G,GT,S)

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GA70,MA70

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23088

GA70,MA70

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GA70,MA70

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14800

GA70..GT

 1
78180-14801

GA70..GT

 1
78180-24011

GA70..G,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14800

GA70..GT

 1
78180-14801

GA70..GT

 1
78180-24011

GA70..G,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14800

GA70..GT

 1
78180-14801

GA70..GT

 1
78180-24011

GA70..G,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14800

GA70..GT

 1
78180-14801

GA70..GT

 1
78180-24011

GA70..G,S

 1
Common parts
90179-08038
90959-01243
90959-01244
91611-40812
91611-60812
91611-60814
91616-40614
91651-40614
91651-40616
91651-40830
91655-40630
96160-00400
96160-00600
