GA70-BLMVF (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

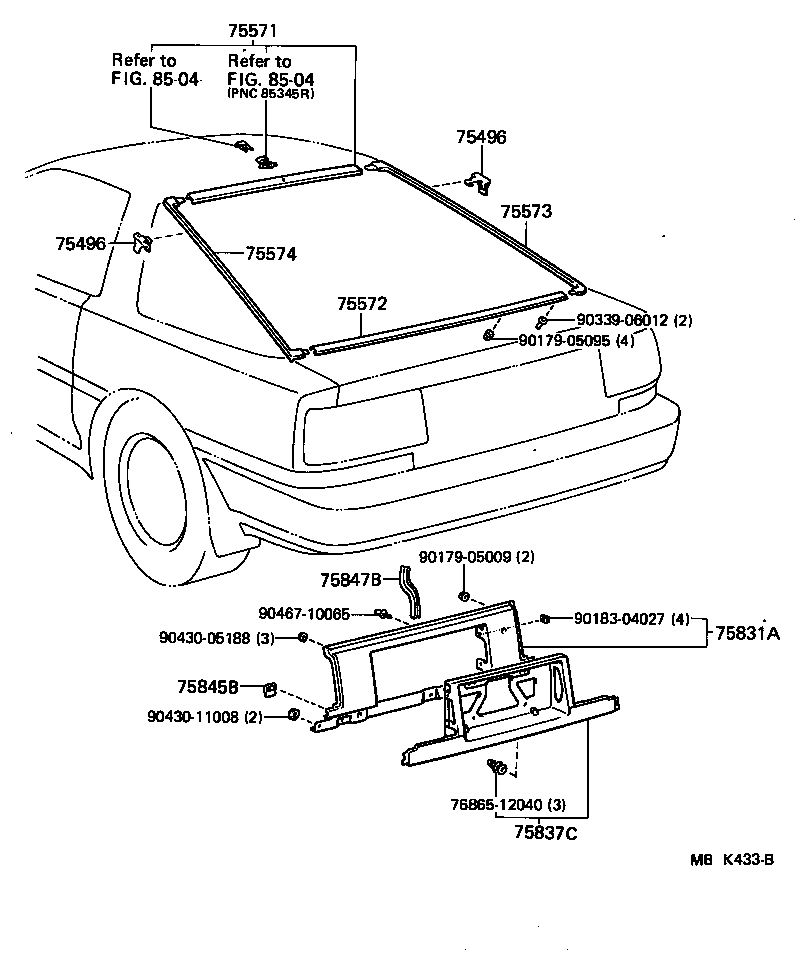

Click highlighted areas on diagram

diagram 75496 75496 75571 75572 75573 75574 75831A 75837C 75845B 75847B 7686512040 8504 8504 9017905009 9017905095 9018304027 9033906012 9043005188 9043011008 9046710065
Part # Description Qty Price
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-14010

GA70,MA70

 2
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-14010

GA70,MA70

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14190

GA70,MA70

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-14170

GA70,MA70

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-14201

GA70,MA70

 1
75573-14202

GA70,MA70

 1
75573-14200

GA70,MA70

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-14171

GA70,MA70

 1
75574-14170

GA70,MA70

 1
75574-14172

GA70,MA70

 1
75831A - PANEL, LOWER BACK FINISH, CENTER
75831-14291

GA70,MA70

 1
75831-14290

GA70,MA70

 1
75837C - COVER, LOWER BACK FINISH PANEL HOLE
75837-14040

GA70

 1
75845B - PAD, LOWER BACK FINISH PANEL
75845-14160

GA70,MA70

 2
75847B - PAD, LOWER BACK PANEL MOULDING
75847-14040

GA70,MA70

 1
Common parts
76865-12040
90179-05009
90179-05095
90183-04027
90339-06012
90430-05188
90430-11008
90467-10065
Linked diagrams
8504
