GA70-BLMVF (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

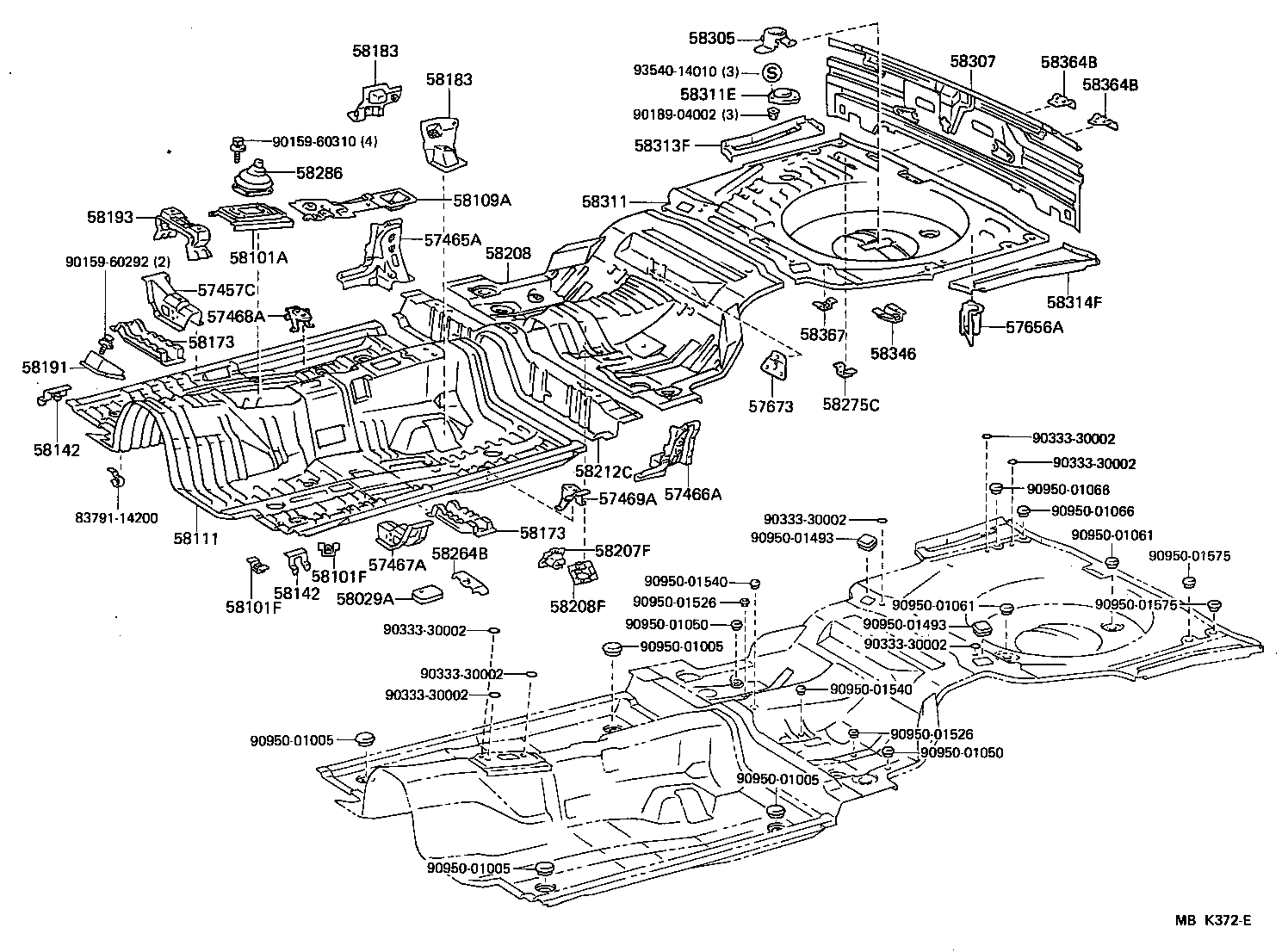

Click highlighted areas on diagram

diagram 57457C 57465A 57466A 57467A 57468A 57469A 57656A 57673 58029A 58101A 58101F 58101F 58109A 58111 58142 58142 58173 58173 58183 58183 58191 58193 58207F 58208 58208F 58212C 58264B 58275C 58286 58305 58307 58311 58311E 58313F 58314F 58346 58364B 58364B 58367 8379114200 9015960292 9015960310 9018904002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9095001005 9095001005 9095001005 9095001005 9095001050 9095001050 9095001061 9095001061 9095001066 9095001066 9095001493 9095001493 9095001526 9095001526 9095001540 9095001540 9095001575 9095001575 9354014010
Part # Description Qty Price
57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57457-14010

GA70,MA70

 1
57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH
57465-14060

GA70,MA70

 1
57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH
57466-14030

GA70,MA70

 1
57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57467-14020

GA70,MA70

 1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-14030

GA70,MA70

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-14030

GA70,MA70

 1
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-14040

GA70,MA70

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-14020

GA70,MA70

 1
58029A - BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58029-14020

GA70,MA70

 1
58101A - COVER, TRANSMISSION AUXILIARY
58281-14100

GA70,MA70..5F

 1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58131-14030

GA70,MA70

 1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58131-14030

GA70,MA70

 1
58109A - RETAINER SUB-ASSY, PARKING BRAKE
58109-14010

GA70,MA70

 1
58111 - PAN, FRONT FLOOR
58111-14060

GA70,MA70

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-14020

GA70,MA70

 2
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-14020

GA70,MA70

 2
58173 - DEFLECTOR, FRONT FLOOR STONE
58173-14020

GA70,MA70

RH

 1
58174-14010

GA70,MA70

LH

 1
58173 - DEFLECTOR, FRONT FLOOR STONE
58173-14020

GA70,MA70

RH

 1
58174-14010

GA70,MA70

LH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-14030

GA70,MA70

RH

 1
58184-14030

GA70,MA70

LH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-14030

GA70,MA70

RH

 1
58184-14030

GA70,MA70

LH

 1
58191 - FOOTREST, FRONT FLOOR
58191-14050

GA70,MA70

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-14030

GA70,MA70

 1
58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58207-14040

GA70,MA70

 1
58208 - PAN, CENTER FLOOR
58211-14120

GA70,MA70

 1
58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58208-14040

GA70,MA70

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-14020

GA70,MA70

 1
58264B - BRACKET, PARKING BRAKE CABLE GUIDE
58264-14020

GA70,MA70

 1
58275C - BRACKET, WIRE HARNESS PROTECTOR
58275-14020

GA70,MA70

 2
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-14070

GA70,MA70..5F

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

GA70,MA70

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-14550

GA70,MA70

 1
58311 - PAN, REAR FLOOR
58311-14170

GA70,MA70

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

GA70,MA70

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14190

GA70,MA70

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-14130

GA70,MA70

 1
58346 - BRACKET, REAR FLOOR HEAT INSULATOR
58345-14020

GA70,MA70

 1
58364B - BRACKET, FUEL TANK SUPPORT
58366-14010

GA70,MA70

LH

 1
58365-14010

GA70,MA70

RH

 1
58364B - BRACKET, FUEL TANK SUPPORT
58366-14010

GA70,MA70

LH

 1
58365-14010

GA70,MA70

RH

 1
58367 - BRACKET, FUEL TUBE CLAMP
58266-22040

GA70,MA70

 2
Common parts
83791-14200
90159-60292
90159-60310
90189-04002
90333-30002
90950-01005
90950-01050
90950-01061
90950-01066
90950-01493
90950-01526
90950-01540
90950-01575
93540-14010
