GA70-BLMVF (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-8908) ; (8908-9108)NOB

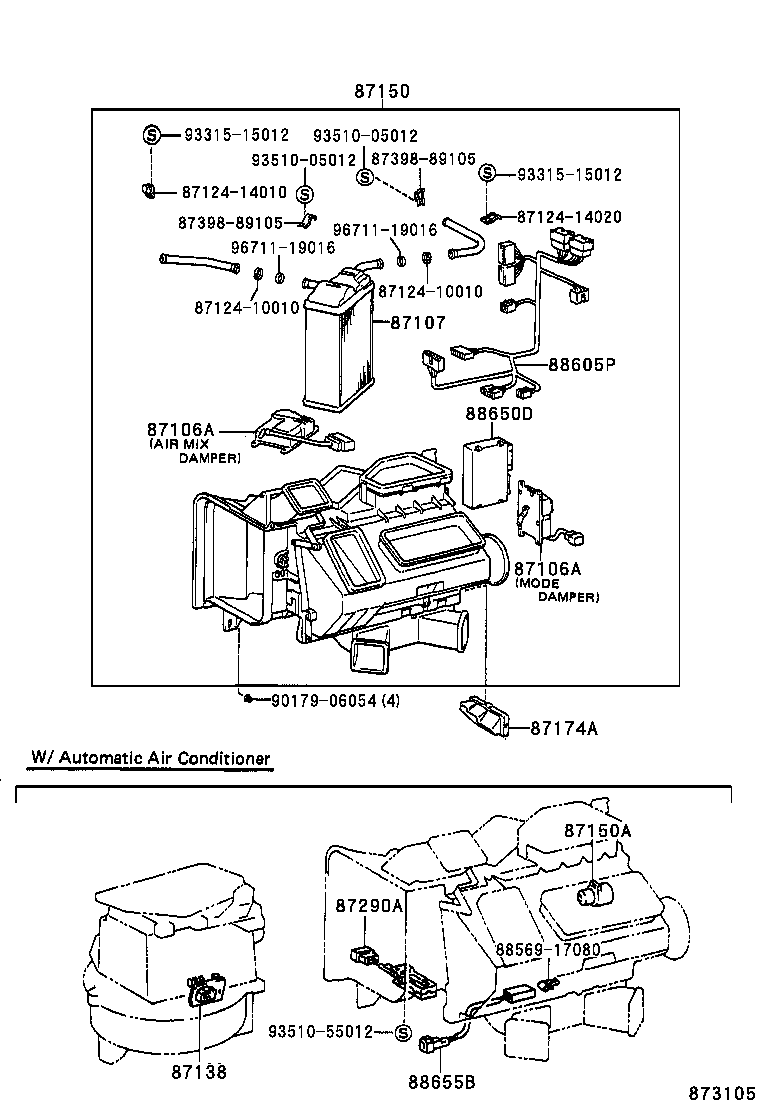

Click highlighted areas on diagram

diagram 87106A 87106A 87107 8712410010 8712410010 8712414010 8712414020 87138 87150 87150A 87174A 87290A 8739889105 8739889105 8856917080 88605P 88650D 88655B 9017906054 9331515012 9331515012 9351005012 9351005012 9351055012 9671119016 9671119016
Part # Description Qty Price
87106A - SERVO SUB-ASSY, DAMPER
87106-24030

GA70,JZA70,MA70

AIR MIX DAMPER

 1
87106-14040

GA70,JZA70,MA70

AIR INLET DUMPER

 1
87106-24020

GA70,JZA70,MA70

MODE DAMPER

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-24030

GA70,JZA70,MA70

AIR MIX DAMPER

 1
87106-14040

GA70,JZA70,MA70

AIR INLET DUMPER

 1
87106-24020

GA70,JZA70,MA70

MODE DAMPER

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-24020

GA70,JZA70,MA70

 1
87107-14180

GA70,JZA70

 1
87138 - RESISTOR, HEATER BLOWER
87138-14090

GA70,MA70

 1
87138-14090

GA70..NOB

 1
87138-24030

GA70..NOB

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-24030

GA70,JZA70

 1
87138-14110

GA70,JZA70

 1
87138-24030

GA70,MA70

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87150 - RADIATOR ASSY, HEATER
87150-14240

GA70..NOB

 1
87150-14260

GA70,JZA70

 1
87150A - RELAY, HEATER RADIATOR
88630-95702

GA70,MA70

 1
88630-95702

GA70..NOB

 1
88630-24050

GA70,JZA70

 1
87174A - GUIDE, AIR HEATER
87174-24010

GA70,JZA70,MA70

 1
87290A - SWITCH ASSY, HEATER
87290-24010

GA70,JZA70,MA70

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-14790

GA70,MA70

 1
88605-14790

GA70..NOB

 1
88605-14800

GA70,JZA70

 1
88650D - AMPLIFIER ASSY
88650-14230

GA70,JZA70,MA70

 1
88655B - SWITCH, WATER TEMPERATURE
88625-10070

GA70,JZA70,MA70

 1
Common parts
87124-10010
87124-14010
87124-14020
87398-89105
88569-17080
90179-06054
93315-15012
93510-05012
93510-55012
96711-19016

(8908- )WIB ; (9108- )NOB

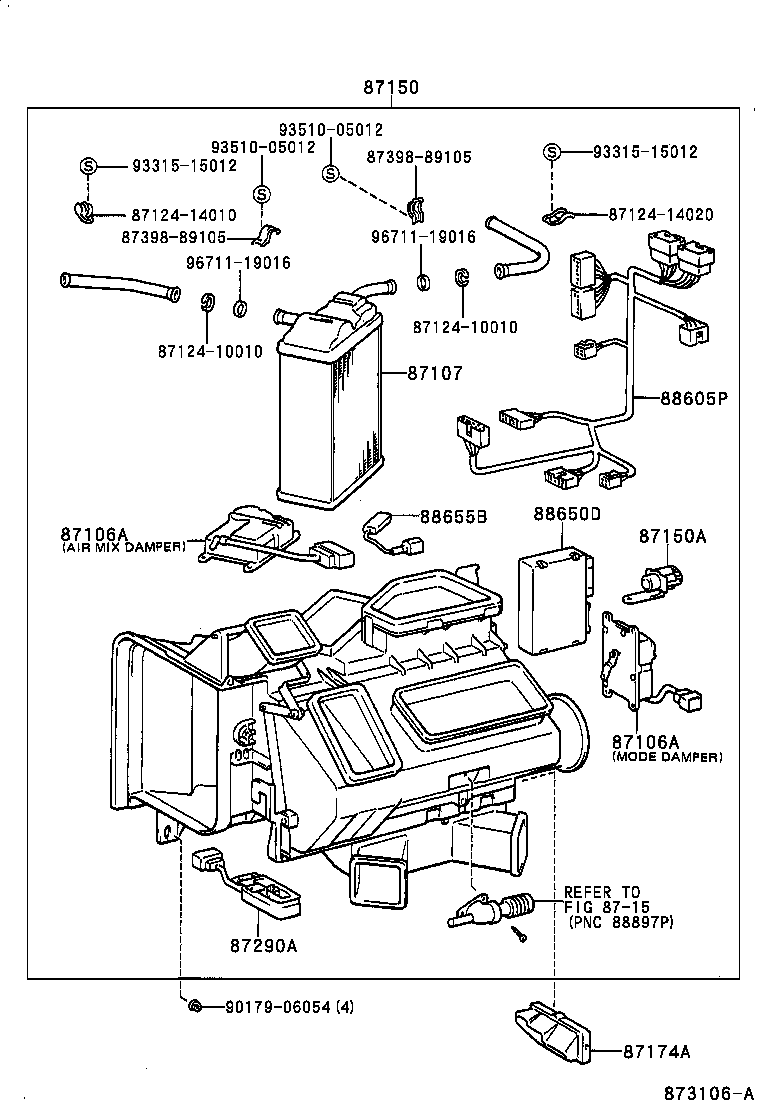

Click highlighted areas on diagram

diagram 87106A 87106A 87107 8712410010 8712410010 8712414010 8712414020 8715 87150 87150A 87174A 87290A 8739889105 8739889105 88605P 88650D 88655B 9017906054 9331515012 9331515012 9351005012 9351005012 9671119016 9671119016
Part # Description Qty Price
87106A - SERVO SUB-ASSY, DAMPER
87106-24030

GA70,JZA70,MA70

AIR MIX DAMPER

 1
87106-14040

GA70,JZA70,MA70

AIR INLET DUMPER

 1
87106-24020

GA70,JZA70,MA70

MODE DAMPER

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-24030

GA70,JZA70,MA70

AIR MIX DAMPER

 1
87106-14040

GA70,JZA70,MA70

AIR INLET DUMPER

 1
87106-24020

GA70,JZA70,MA70

MODE DAMPER

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-24020

GA70,JZA70,MA70

 1
87107-14180

GA70,JZA70

 1
87150 - RADIATOR ASSY, HEATER
87150-14240

GA70..NOB

 1
87150-14260

GA70,JZA70

 1
87150A - RELAY, HEATER RADIATOR
88630-95702

GA70,MA70

 1
88630-95702

GA70..NOB

 1
88630-24050

GA70,JZA70

 1
87174A - GUIDE, AIR HEATER
87174-24010

GA70,JZA70,MA70

 1
87290A - SWITCH ASSY, HEATER
87290-24010

GA70,JZA70,MA70

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-14790

GA70,MA70

 1
88605-14790

GA70..NOB

 1
88605-14800

GA70,JZA70

 1
88650D - AMPLIFIER ASSY
88650-14230

GA70,JZA70,MA70

 1
88655B - SWITCH, WATER TEMPERATURE
88625-10070

GA70,JZA70,MA70

 1
Common parts
87124-10010
87124-14010
87124-14020
87398-89105
90179-06054
93315-15012
93510-05012
96711-19016
Linked diagrams
8715

(8808- )

Click highlighted areas on diagram

diagram 87104 87105 87106A 87130 87138 9017906054
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-24020

GA70,JZA70,MA70

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GA70,JZA70,MA70

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-24030

GA70,JZA70,MA70

AIR MIX DAMPER

 1
87106-14040

GA70,JZA70,MA70

AIR INLET DUMPER

 1
87106-24020

GA70,JZA70,MA70

MODE DAMPER

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-14110

GA70,JZA70

 1
87130-14090

GA70..NOB

 1
87130-14190

GA70,JZA70

 1
87130-14090

GA70,MA70

 1
87138 - RESISTOR, HEATER BLOWER
87138-14090

GA70,MA70

 1
87138-14090

GA70..NOB

 1
87138-24030

GA70..NOB

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-24030

GA70,JZA70

 1
87138-14110

GA70,JZA70

 1
87138-24030

GA70,MA70

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
Common parts
90179-06054
