GA70-BLMVF (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

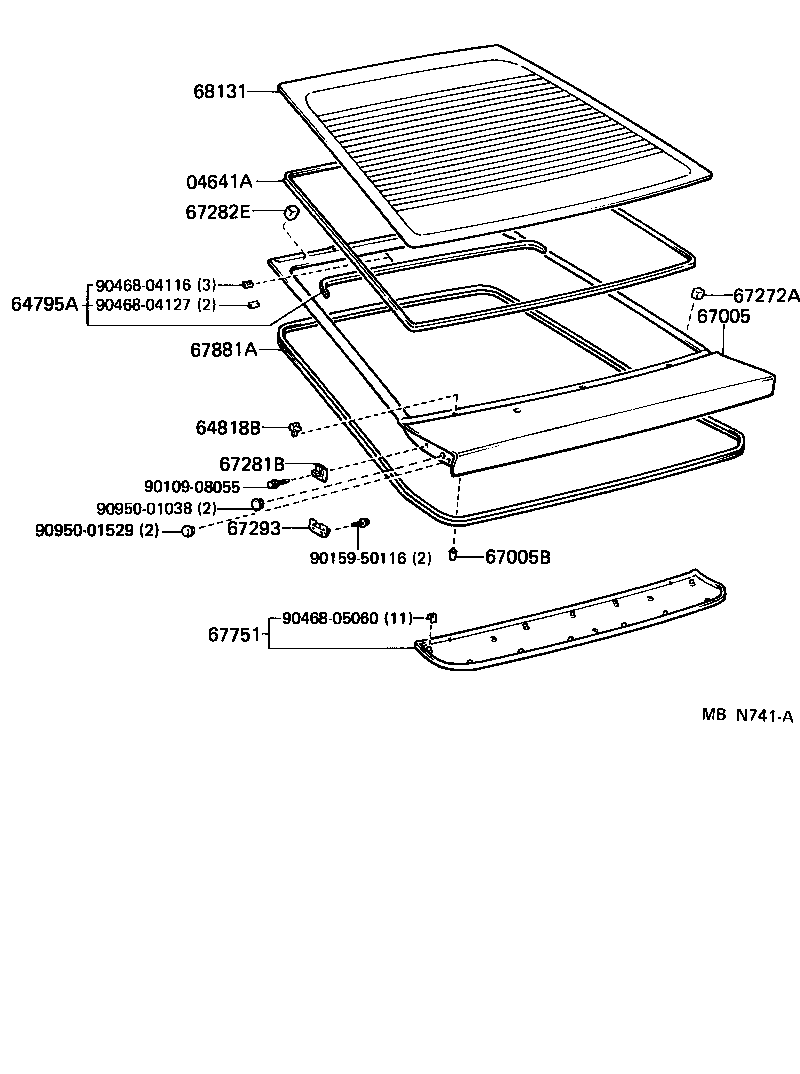

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04641A 64795A 64818B 67005 67005B 67272A 67281B 67282E 67293 67751 67881A 68131 9010908055 9015950116 9046804116 9046804127 9046805060 9095001038 9095001529
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-30040

GA70,JZA70,MA70

 1
64795A - TRIM, BACK WINDOW OPENING
64795-14020

GA70,JZA70,MA70

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-14011

GA70,JZA70,MA70

 3
64818-14010

GA70,MA70

 3
67005 - PANEL SUB-ASSY, BACK DOOR
67005-14621

GA70,MA70..G,GT,GTT

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
67005-14312

GA70,MA70..G,GT,GTT

 1
67005-14621

GA70,JZA70

 1
67005-14621

GA70

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
67005-14312

GA70

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09047

GA70,JZA70,MA70

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-14010

GA70,JZA70,MA70

 5
67281B - STOPPER, BACK DOOR, LOWER
67281-14040

GA70,JZA70,MA70

 2
67282E - CUSHION, BACK DOOR STOPPER, NO.3
67282-14010

GA70,JZA70,MA70

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-14030

GA70,JZA70,MA70

 2
67751 - BOARD, BACK DOOR TRIM
64781-1406112

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
64781-1406104

GA70,MA70..G,GT,GTL,GTT

DEEP BLUE,TRIM8#

 1
64781-1406102

GA70,MA70..G,GT,GTL,GTT

MAROON,TRIM3#

 1
64781-1406113

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
64781-1406103

GA70,MA70

MEDIUM GRAY,TRIM1#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-14110

GA70,JZA70,MA70

 1
68131 - GLASS, BACK DOOR
68131-14220

GA70,MA70

*EHTT,厚さ=4.0,ﾌﾞﾙ- ﾃｲﾝﾃﾂﾄﾞ

 1
68131-14221

GA70,JZA70,MA70..G,GT,GTL,GTT

*EHTT,厚さ=4.0,ﾌﾞﾙ- ﾃｲﾝﾃﾂﾄﾞ

 1
68131-14230

GA70,MA70

*EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68131-14231

GA70,JZA70,MA70..G,GT,GTL,GTT

*EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
Common parts
90109-08055
90159-50116
90468-04116
90468-04127
90468-05060
90950-01038
90950-01529
