GA70-BLMVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

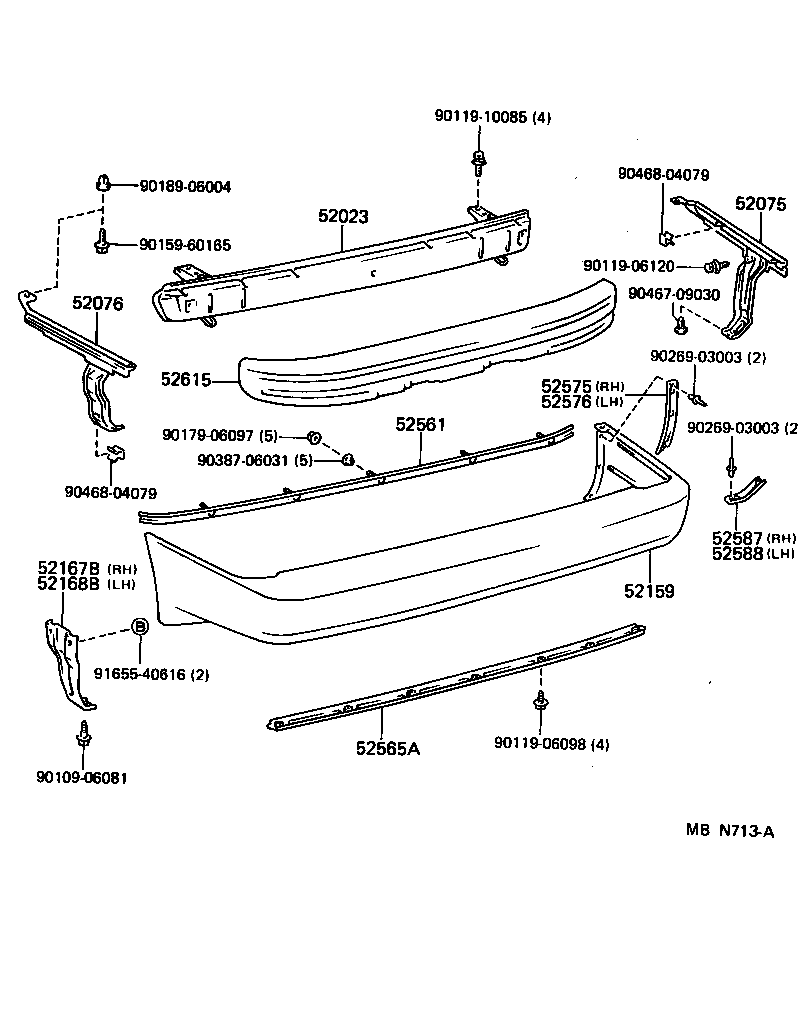

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-14140 |
GA70,JZA70,MA70 |
1 | ||
| 52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52075-14010 |
GA70..NOB |
1 | ||
| 52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52076-14010 |
GA70..NOB |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1431028 |
GA70 SUPER WHITE 3,043 |
1 | ||
| 52159-1431024 |
GA70 BLUE MICA,8E3 |
1 | ||
| 52159-1431012 |
GA70..NOB RED MICA,3H4 |
1 | ||
| 52159-1431013 |
GA70 GRAY M,167 |
1 | ||
| 52159-1431011 |
GA70..NOB BLACK MICA,206 |
1 | ||
| 52159-1431023 |
GA70..NOB BLUEISH GRAY M,182 |
1 | ||
| 52159-1431044 |
GA70..NOB BLUE M,8J3 |
1 | ||
| 52159-1431038 |
GA70..NOB SUPER WHITE 4,050 |
1 | ||
| 52159-1431034 |
GA70..NOB DARK BLUE M M,8G5 |
1 | ||
| 52159-1431021 |
GA70..NOB BLACK,202 |
1 | ||
| 52159-14310H0 |
GA70..NOB MEDIUM TORQUOISE M.,749 |
1 | ||
| 52159-14310D0 |
GA70..NOB SUPER RED 2,3E5 |
1 | ||
| 52159-1431022 |
GA70..NOB RED MICA,3H8 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-14100 |
GA70,JZA70,MA70 |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-14040 |
GA70,JZA70,MA70 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-14140 |
GA70,JZA70,MA70 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-14051 |
GA70,JZA70,MA70 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-14030 |
GA70,JZA70,MA70 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-14030 |
GA70,JZA70,MA70 |
1 | ||
| 52587 - RETAINER, REAR BUMPER END, RH | ||||
| 52587-14010 |
GA70..NOB |
1 | ||
| 52588 - RETAINER, REAR BUMPER END, LH | ||||
| 52588-14010 |
GA70..NOB |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-14150 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90119-06098 | ||||
| 90119-06120 | ||||
| 90119-10085 | ||||
| 90159-60165 | ||||
| 90179-06097 | ||||
| 90189-06004 | ||||
| 90269-03003 | ||||
| 90387-06031 | ||||
| 90467-09030 | ||||
| 90468-04079 | ||||
| 91655-40616 | ||||
