GA70-BLMVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

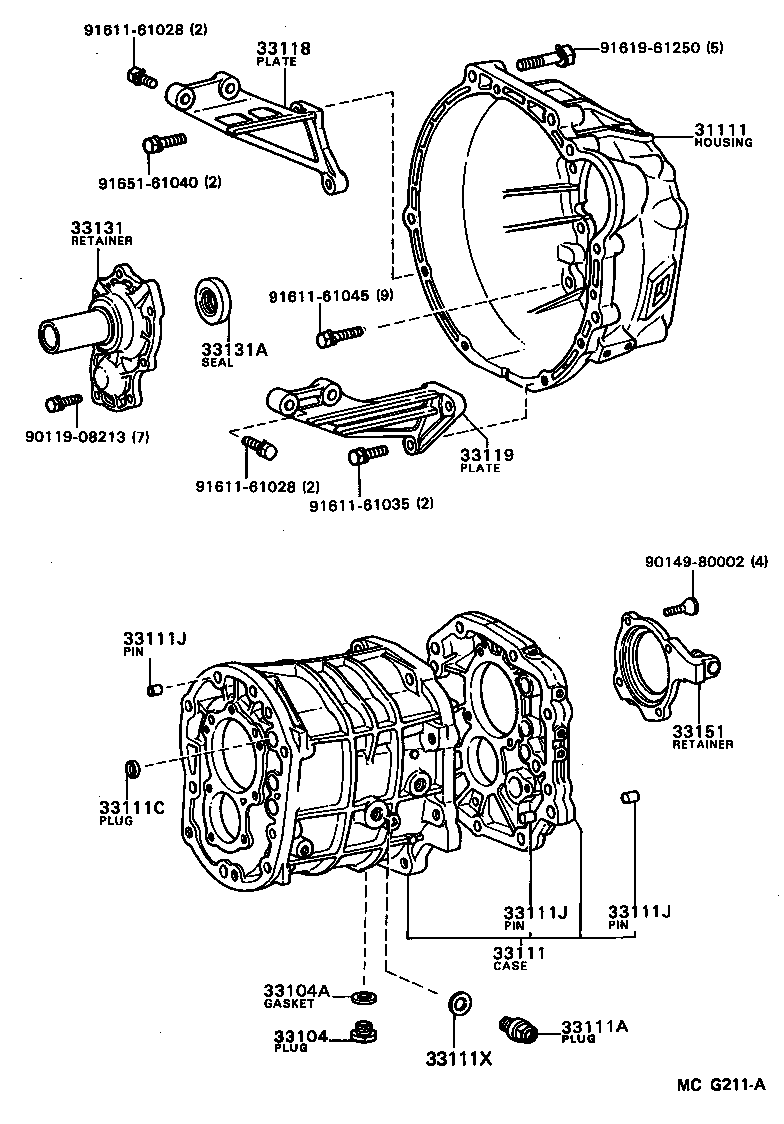

(8808-9111)GA70..5F
Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22130 |
GA70..5F |
1 | ||
| 31111-22131 |
GA70..5F |
1 | ||
| 31111-22130 |
GA70..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GA70..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GA70,JZA70,MA70..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-30070 |
GA70..5F |
1 | ||
| 33101-22032 |
GA70..5F |
1 | ||
| 33101-22031 |
GA70..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
GA70..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GA70..5F 外径=14,外径=14 |
1 | ||
| 90331-17004 |
GA70..5F 外径=17,外径=17 |
2 | ||
| 90331-14004 |
GA70..5F 外径=14 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GA70..5F 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GA70..5F 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GA70..5F 長さ=16,外径=12 |
6 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
GA70..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22051 |
GA70..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22042 |
GA70..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22021 |
GA70..5F |
1 | ||
| 33131-30080 |
GA70..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
GA70..5F |
1 | ||
| 90311-30014 |
GA70..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
GA70..5F |
1 | ||
| 33107-30020 |
GA70..5F |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61040 | ||||

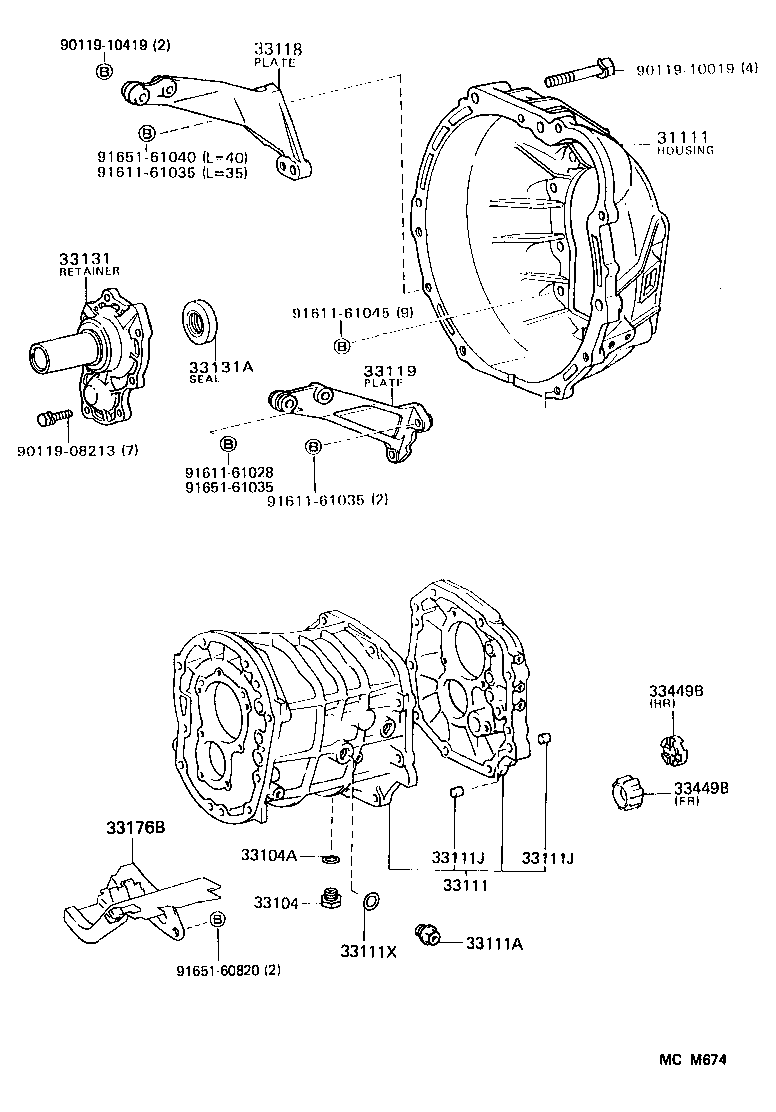

(9111- )GA70..5F
Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22130 |
GA70..5F |
1 | ||
| 31111-22131 |
GA70..5F |
1 | ||
| 31111-22130 |
GA70..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GA70..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GA70,JZA70,MA70..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-30070 |
GA70..5F |
1 | ||
| 33101-22032 |
GA70..5F |
1 | ||
| 33101-22031 |
GA70..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
GA70..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GA70..5F 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GA70..5F 長さ=16,外径=12 |
6 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
GA70..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22051 |
GA70..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22042 |
GA70..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22021 |
GA70..5F |
1 | ||
| 33131-30080 |
GA70..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
GA70..5F |
1 | ||
| 90311-30014 |
GA70..5F |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-30020 |
GA70..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-30010 |
GA70..5F ﾘﾔ |
1 | ||
| 33449-30020 |
GA70..5F ﾌﾛﾝﾄ |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-30010 |
GA70..5F ﾘﾔ |
1 | ||
| 33449-30020 |
GA70..5F ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-10019 | ||||
| 90119-10419 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91651-60820 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
