GA70-BLMSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )G,GT,GTT,S

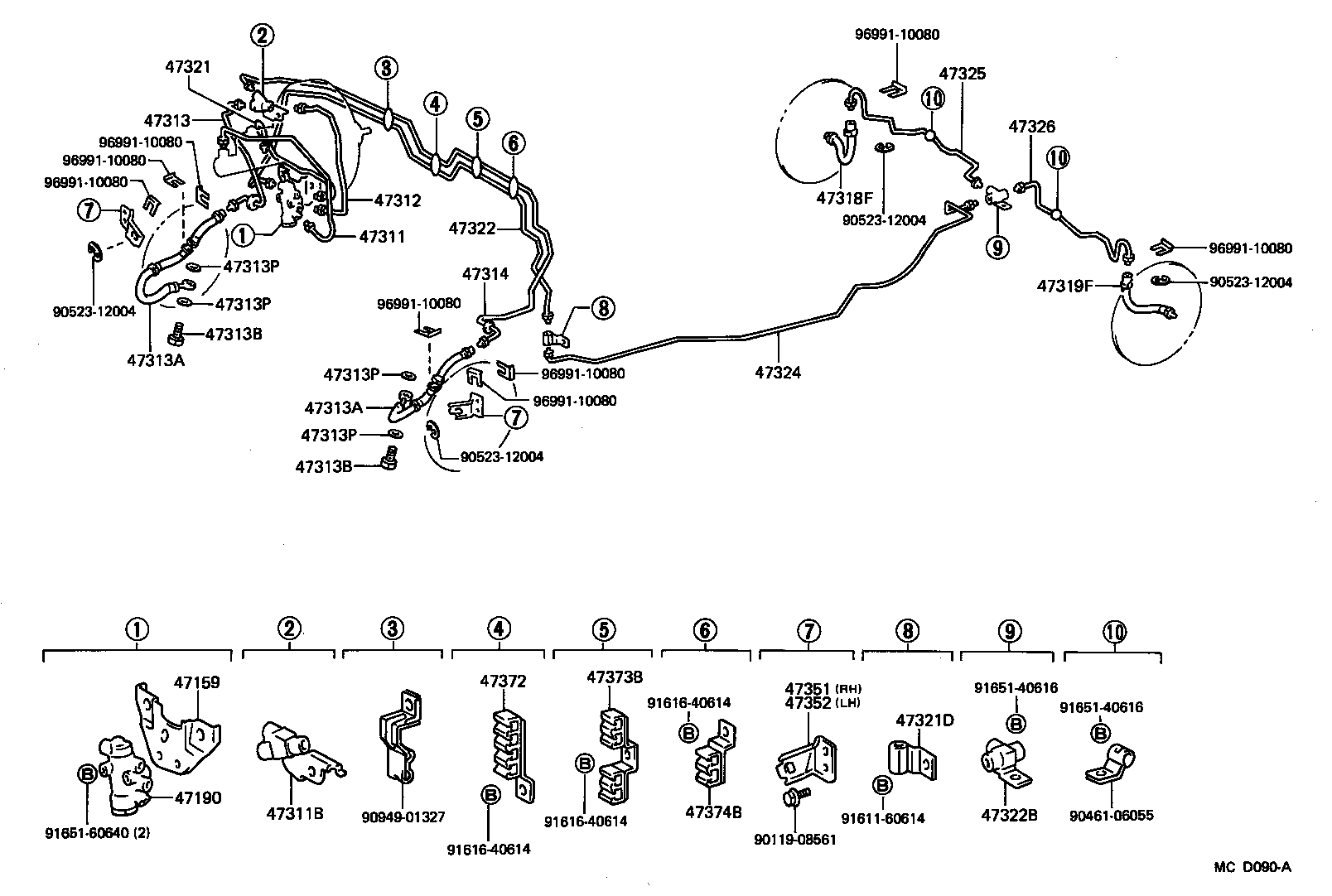

Click highlighted areas on diagram

diagram 47159 47190 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47318F 47319F 47321 47321D 47322 47322B 47324 47325 47326 47351 47352 47372 47373B 47374B 9011908561 9046106055 9052312004 9052312004 9052312004 9052312004 9094901327 9161160614 9161640614 9161640614 9161640614 9165140616 9165140616 9165160640 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14060

GA70,MA70

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-14060

GA70,MA70

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14340

GA70,MA70

 1
47311-14340

GA70..G,S

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10200

GA70,MA70..G,GT,GTT,S

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14200

GA70,MA70..G,GT,GTT,S

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14261

GA70..G,S

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02489

GA70,MA70

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02489

GA70,MA70

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

GA70,MA70

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

GA70,MA70

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

GA70,MA70

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

GA70,MA70

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

GA70,MA70

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

GA70,MA70

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-14131

GA70..G,S

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02493

GA70,MA70

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02493

GA70,MA70

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14200

GA70..G,S

 1
47321-14200

GA70,MA70

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10116

GA70,MA70

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14270

GA70..G,S

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10004

GA70,MA70

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-14130

GA70,MA70

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-14010

GA70,MA70

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14010

GA70,MA70

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-14041

GA70,MA70

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-14021

GA70,MA70

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-14021

GA70,MA70

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-14010

GA70,MA70

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-30010

GA70,MA70..G,GT,GTT,S

 1
Common parts
90119-08561
90461-06055
90523-12004
90949-01327
91611-60614
91616-40614
91651-40616
91651-60640
96991-10080
