GA70-BLMSE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

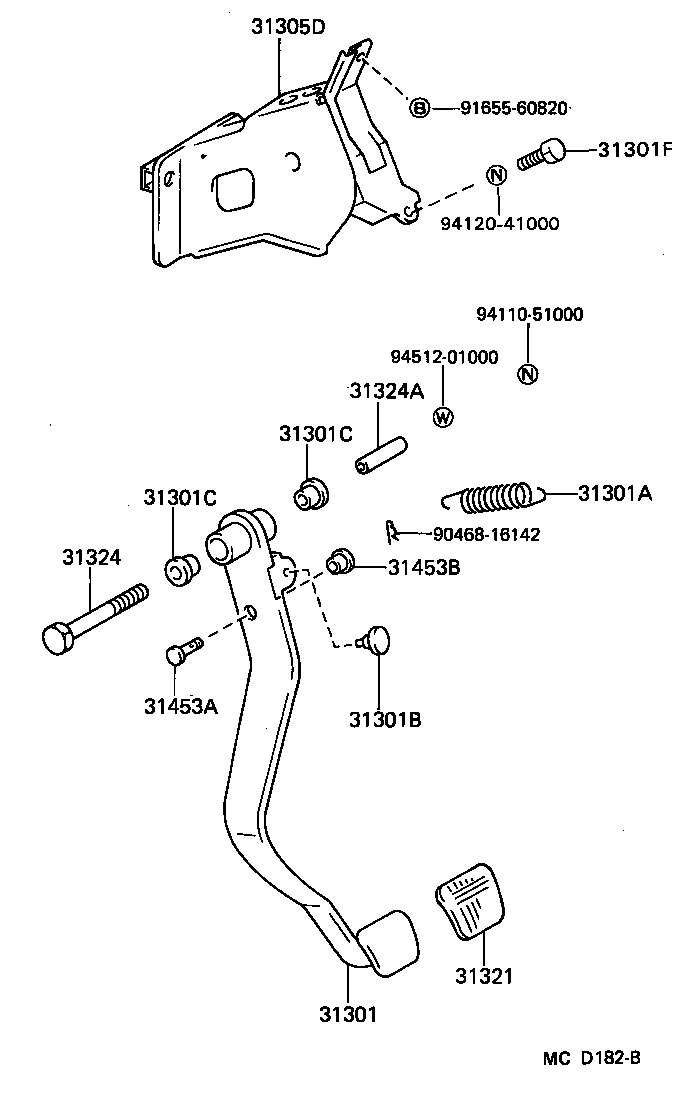

ILLUST NO. 1 OF 2(8602- )5F..G,S

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9046816142 9165560820 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14100

GA70..5F..(G,S)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

GA70..5F..(G,S)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

GA70..5F..(G,S)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GA70,MA70..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GA70,MA70..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GA70..5F

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-14130

GA70..5F..(G,S)

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GA70,MA70..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

GA70,MA70..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GA70,MA70..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GA70..5F..(G,S)

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

GA70,MA70..5F

 1
Common parts
90468-16142
91655-60820
94110-51000
94120-41000
94512-01000

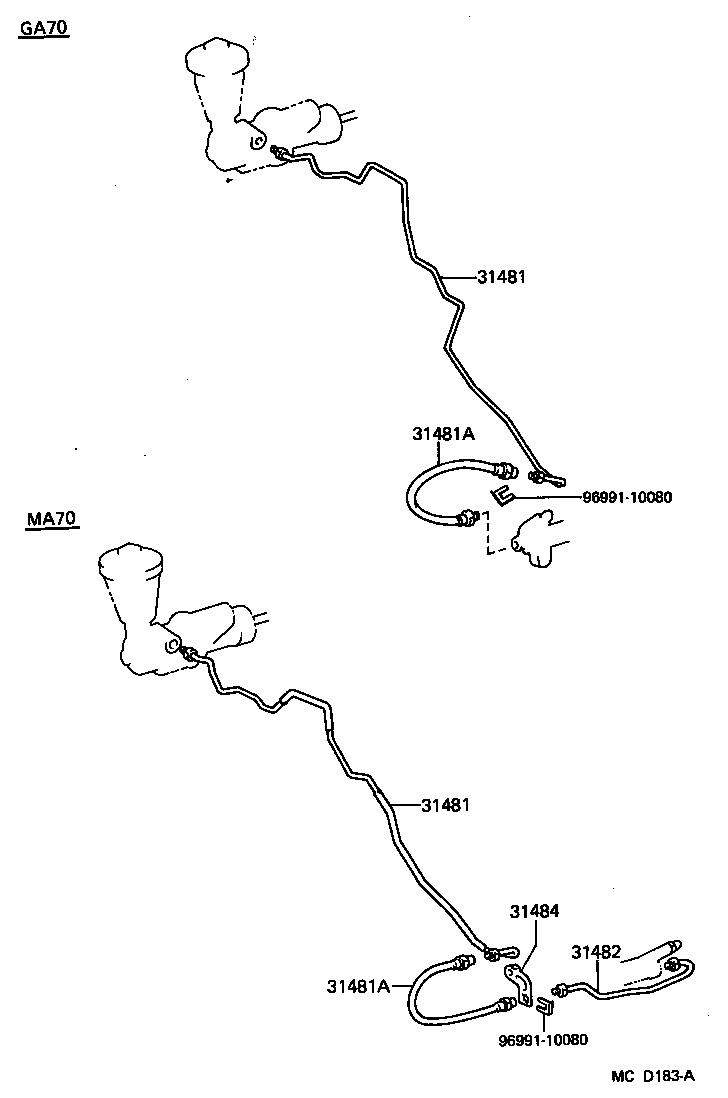

ILLUST NO. 2 OF 2(8602- )5F

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31484 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14210

GA70..5F..(G,S)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14210

GA70..5F..(G,S)

 1
31481A - HOSE, CLUTCH, NO.1
96812-50350

GA70..5F

 1
31481A - HOSE, CLUTCH, NO.1
96812-50350

GA70..5F

 1
Common parts
96991-10080
