GA70-BLMGE (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )G,GT,GTT,S

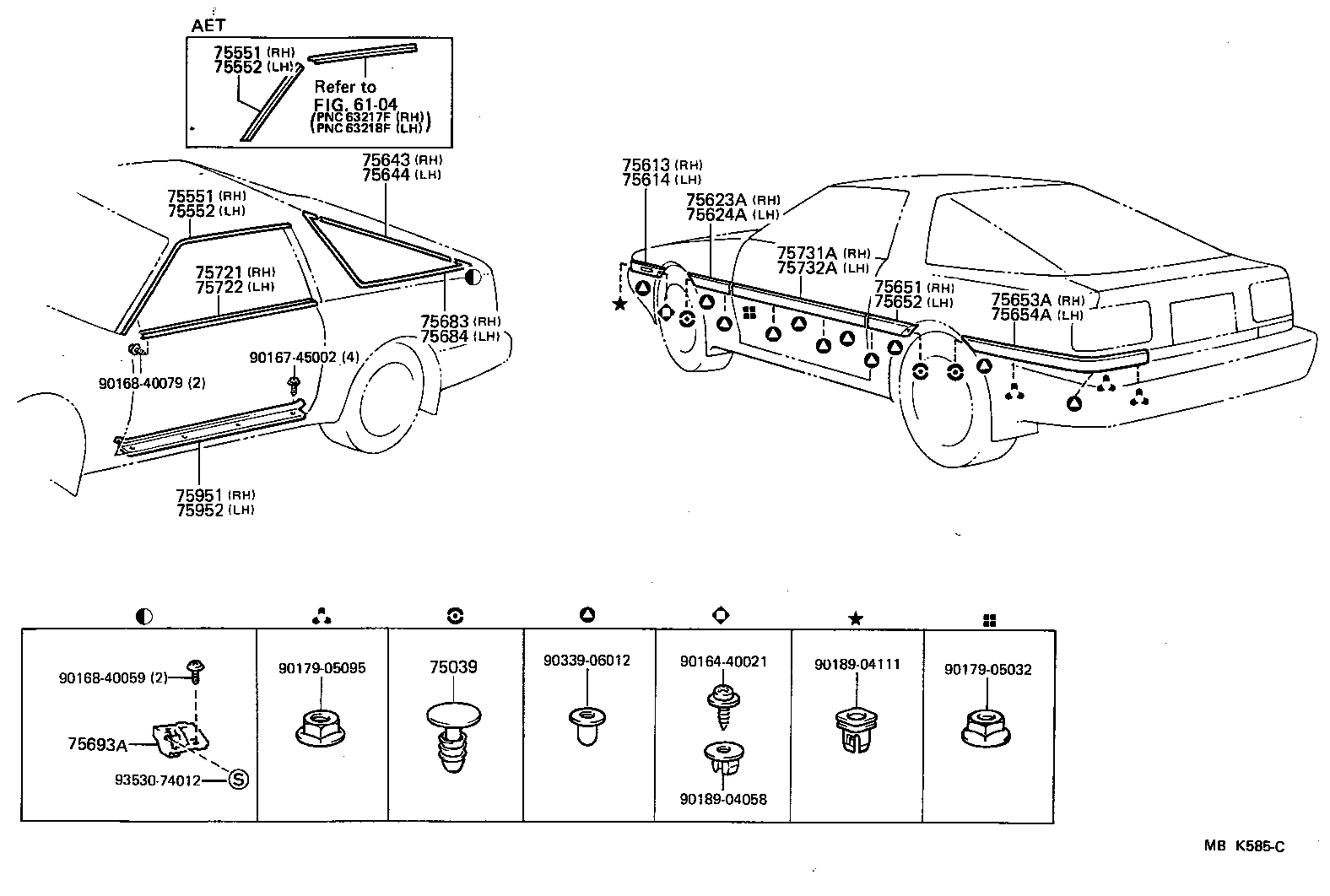

Click highlighted areas on diagram

diagram 6104 75039 75551 75551 75552 75552 75613 75614 75623A 75624A 75643 75644 75651 75652 75653A 75654A 75683 75684 75693A 75721 75722 75731A 75732A 75951 75952 9016440021 9016745002 9016840059 9016840079 9017905032 9017905095 9018904058 9018904111 9033906012 9353074012
Part # Description Qty Price
75039 - CLIP SUB-ASSY, OUTSIDE MOULDING
67869-12010

GA70,MA70

 6
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-14140

GA70,MA70..LB

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-14140

GA70,MA70..LB

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-14140

GA70,MA70..LB

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-14140

GA70,MA70..LB

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-14100

GA70

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-14070

GA70

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-14060

GA70

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-14060

GA70

 1
75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75643-14040

GA70,MA70

 1
75643-14041

GA70,MA70

 1
75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75644-14040

GA70,MA70

 1
75644-14041

GA70,MA70

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-14170

GA70

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-14140

GA70

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-14150

GA70

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-14140

GA70

 1
75683 - MOULDING, QUARTER BELT, REAR RH
75608-14010

GA70,MA70

 1
75684 - MOULDING, QUARTER BELT, REAR LH
75609-14010

GA70,MA70

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-14240

GA70,MA70

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-14240

GA70,MA70

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-14200

GA70

 1
75731-14201

GA70

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-14181

GA70

 1
75732-14180

GA70

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1412004

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
67913-1412005

GA70,MA70

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1412102

GA70,MA70

MAROON,MAROON,TRIM3#

 1
67913-1412104

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
67913-1412103

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
67913-1412002

GA70,MA70

MAROON,MAROON,TRIM3#

 1
67913-1412003

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-1412002

GA70,MA70

MAROON,MAROON,TRIM3#

 1
67913-1412005

GA70,MA70

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1412004

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
67913-1412102

GA70,MA70

MAROON,MAROON,TRIM3#

 1
67913-1412003

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
67913-1412103

GA70,MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
67913-1412104

GA70,MA70

BLUE,DEEP BLUE,TRIM8#

 1
Common parts
90164-40021
90167-45002
90168-40059
90168-40079
90179-05032
90179-05095
90189-04058
90189-04111
90339-06012
93530-74012
Linked diagrams
6104
