GA70-BJPVZ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1991
Engine
1GGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

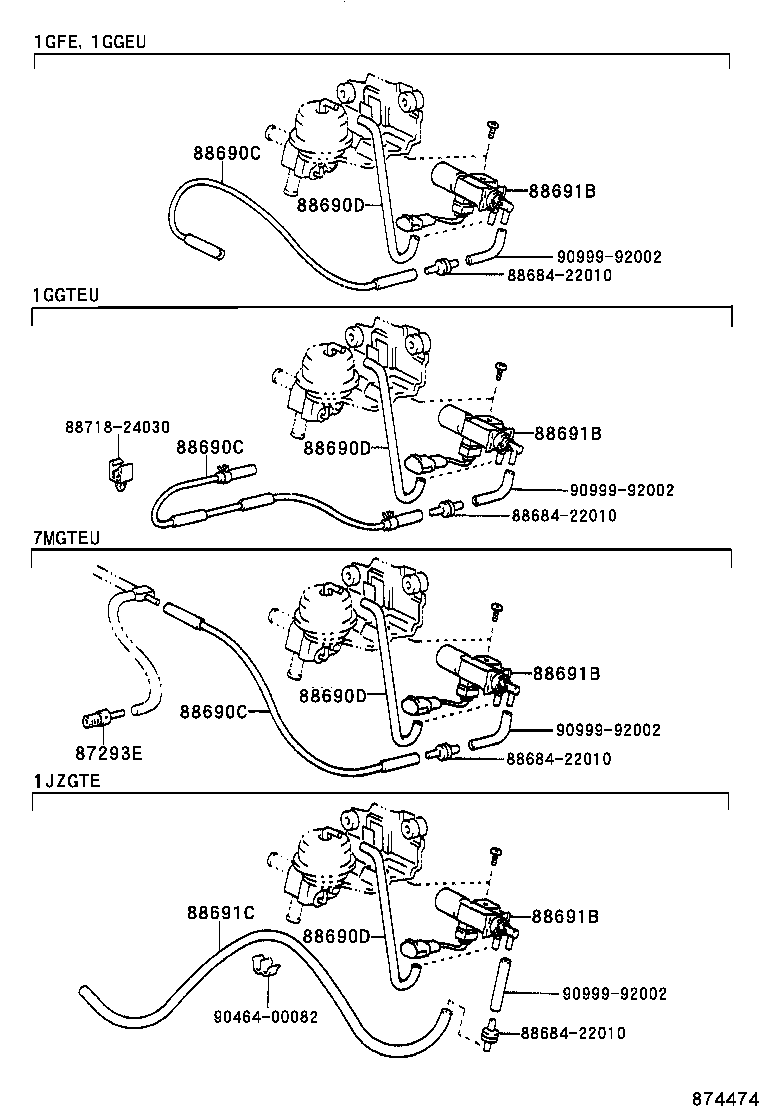

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
HEATER IDLE UP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-24010 |
GA70..GTT |
1 | ||
| 95413-40048 |
GA70..G,GT 長さ=480 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-24010 |
GA70..GTT |
1 | ||
| 95413-40048 |
GA70..G,GT 長さ=480 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-24010 |
GA70..GTT |
1 | ||
| 95413-40048 |
GA70..G,GT 長さ=480 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90999-92002 |
GA70,JZA70,MA70 *H,L=300 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90999-92002 |
GA70,JZA70,MA70 *H,L=300 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90999-92002 |
GA70,JZA70,MA70 *H,L=300 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90999-92002 |
GA70,JZA70,MA70 *H,L=300 |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-24050 |
GA70,JZA70,MA70 |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-24050 |
GA70,JZA70,MA70 |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-24050 |
GA70,JZA70,MA70 |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-24050 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 88684-22010 | ||||
| 88718-24030 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
ILLUST NO. 2 OF 2(8808-9008)G
Click highlighted areas on diagram
COOLER IDLE UP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88606B - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 88606-22070 |
GA70..G |
1 | ||
| 88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM | ||||
| 88689-22170 |
GA70..G |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22490 |
GA70..G |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
| 96132-30600 | ||||
