GA70-BJPVF (1988)
Toyota Supra

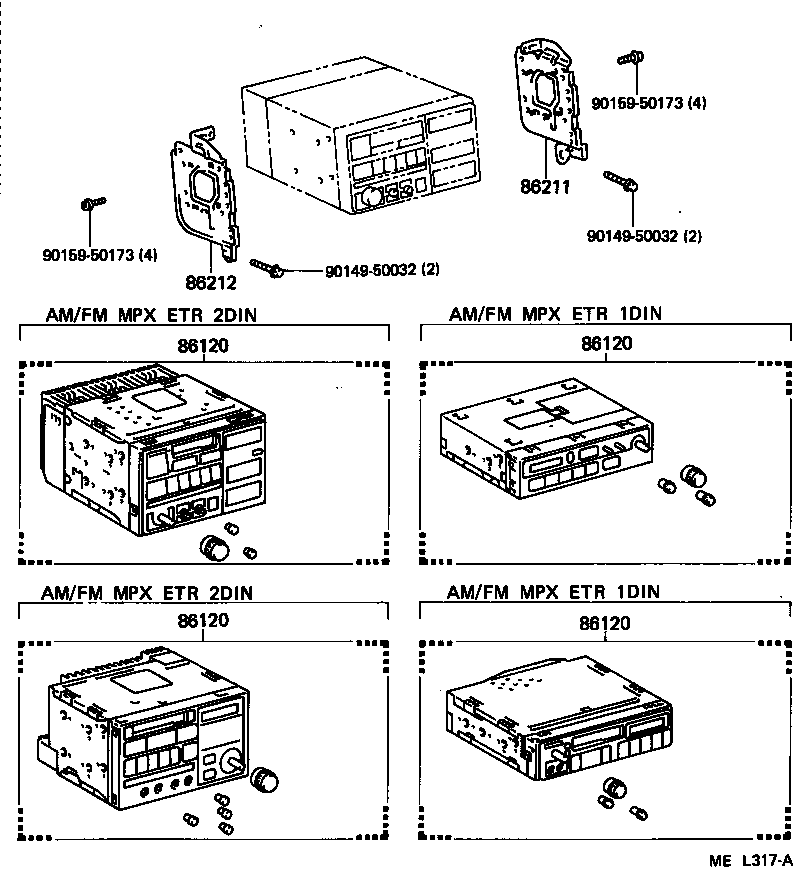

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14790 |
GA70 |
1 | ||
| 86120-32320 |
GA70..G,GT;GA70..AET..4FC..GTT |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120-14830 |
GA70..G,GT;GA70..AET..NOB..4FC..GTT |
1 | ||
| 86120-32310 |
GA70..NOB FUJITSU TEN,AM/FM MPX ETR,1DIN |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14790 |
GA70 |
1 | ||
| 86120-32320 |
GA70..G,GT;GA70..AET..4FC..GTT |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120-14830 |
GA70..G,GT;GA70..AET..NOB..4FC..GTT |
1 | ||
| 86120-32310 |
GA70..NOB FUJITSU TEN,AM/FM MPX ETR,1DIN |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14790 |
GA70 |
1 | ||
| 86120-32320 |
GA70..G,GT;GA70..AET..4FC..GTT |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120-14830 |
GA70..G,GT;GA70..AET..NOB..4FC..GTT |
1 | ||
| 86120-32310 |
GA70..NOB FUJITSU TEN,AM/FM MPX ETR,1DIN |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14790 |
GA70 |
1 | ||
| 86120-32320 |
GA70..G,GT;GA70..AET..4FC..GTT |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86120-14830 |
GA70..G,GT;GA70..AET..NOB..4FC..GTT |
1 | ||
| 86120-32310 |
GA70..NOB FUJITSU TEN,AM/FM MPX ETR,1DIN |
1 | ||
| 86120-14840 |
GA70..NOB |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-14220 |
GA70,JZA70,MA70 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-14190 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90159-50173 | ||||

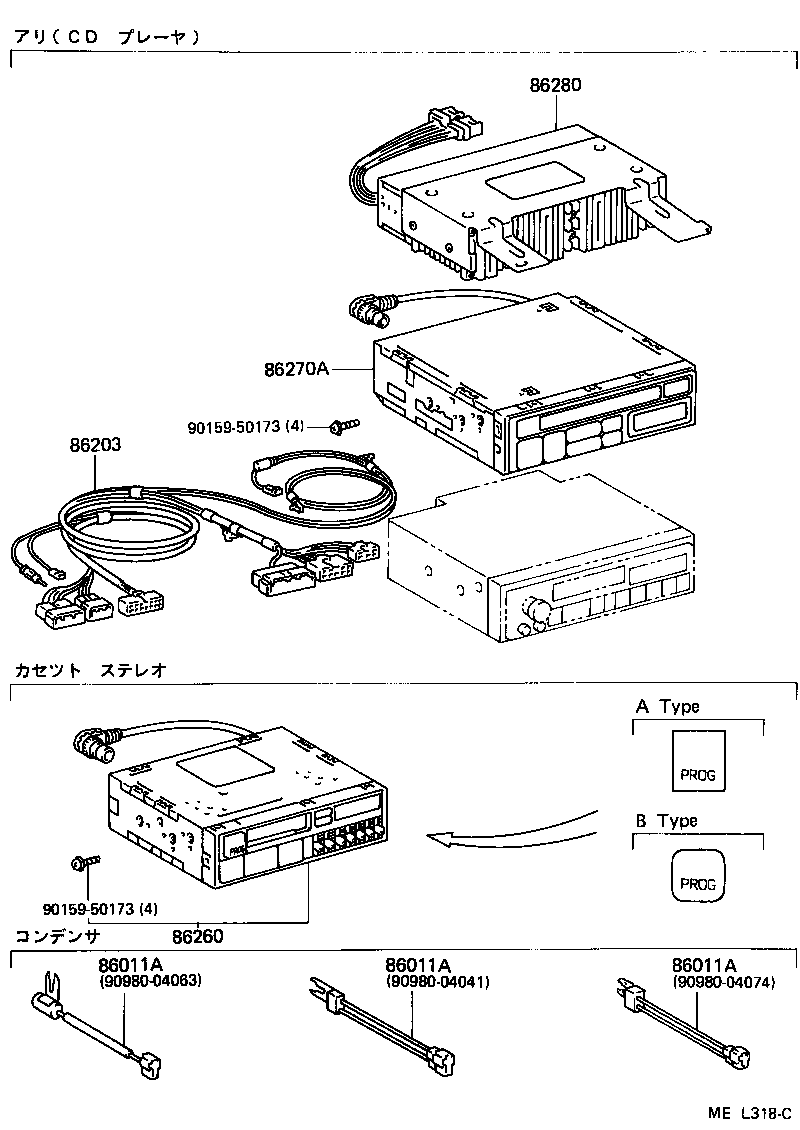

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04074 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04063 |
GA70,JZA70,MA70 DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04074 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04063 |
GA70,JZA70,MA70 DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04074 |
GA70,MA70 IGNITION COIL |
1 | ||
| 90980-04063 |
GA70,JZA70,MA70 DEFOGGER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-14110 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14280 |
GA70..NOB A TYPE |
1 | ||
| 86260-14310 |
GA70..NOB B TYPE |
1 | ||
| 86260-14300 |
GA70..NOB ｱﾘ(ｲｺﾗｲｻﾞ ﾂｷ ﾃ-ﾌﾟﾌﾟﾚ-ﾔ),B TYPE |
1 | ||
| 86260-14290 |
GA70..NOB ｱﾘ(ｲｺﾗｲｻﾞ ﾂｷ ﾃ-ﾌﾟﾌﾟﾚ-ﾔ),A TYPE |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-32020 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 86270-20040 |
GA70,JZA70,MA70 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-14230 |
GA70,MA70 |
1 | ||
| 86280-14231 |
GA70,JZA70 |
1 | ||
| Common parts | ||||
| 90159-50173 | ||||
| 90980-04041 | ||||
| 90980-04063 | ||||
| 90980-04074 | ||||
