GA70-BJPVF (1988)
Toyota Supra

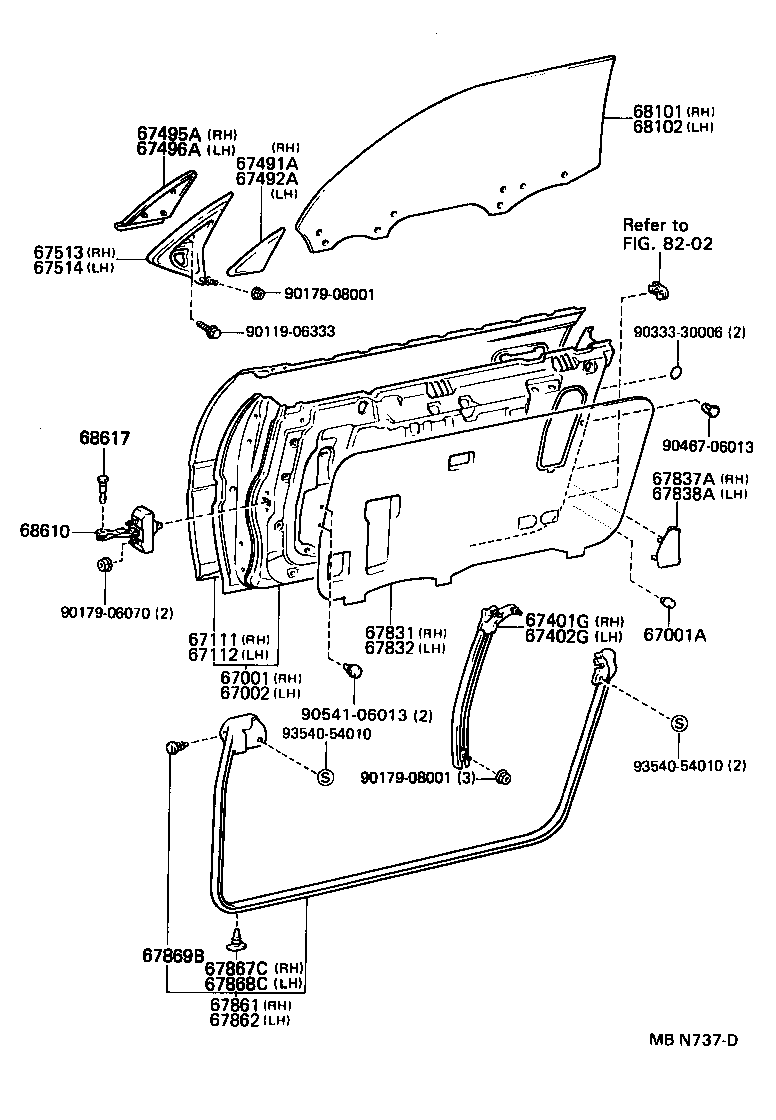

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-14310 |
GA70,JZA70,MA70..AET |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09051 |
GA70,JZA70,MA70 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-14340 |
GA70,JZA70,MA70..AET |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-14220 |
GA70,JZA70,MA70 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-14230 |
GA70,JZA70,MA70 |
1 | ||
| 67401G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-14230 |
GA70,JZA70,MA70 |
1 | ||
| 67402G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-14220 |
GA70,JZA70,MA70 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-14111 |
GA70,JZA70,MA70 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-14111 |
GA70,JZA70,MA70 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-14080 |
GA70,JZA70,MA70 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-14080 |
GA70,JZA70,MA70 |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-14012 |
GA70,JZA70,MA70 |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-14012 |
GA70,JZA70,MA70 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-14180 |
GA70,MA70 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-14090 |
GA70,MA70 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67847-14020 |
GA70,JZA70,MA70 |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67848-14010 |
GA70,JZA70,MA70 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-14300 |
GA70,JZA70,MA70 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-14300 |
GA70,JZA70,MA70 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
GA70,MA70 |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
GA70,MA70 |
22 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30020 |
GA70,JZA70,MA70 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-14330 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *TT,厚さ=5.0,ﾌﾞﾙ- ﾃｲﾝﾃﾂﾄﾞ |
1 | ||
| 68111-14340 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-14340 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *TT,厚さ=5.0,ﾌﾞﾙ- ﾃｲﾝﾃﾂﾄﾞ |
1 | ||
| 68112-14350 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-14060 |
GA70,JZA70,MA70 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
GA70,JZA70,MA70 |
2 | ||
| Common parts | ||||
| 90119-06333 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90333-30006 | ||||
| 90467-06013 | ||||
| 90541-06013 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

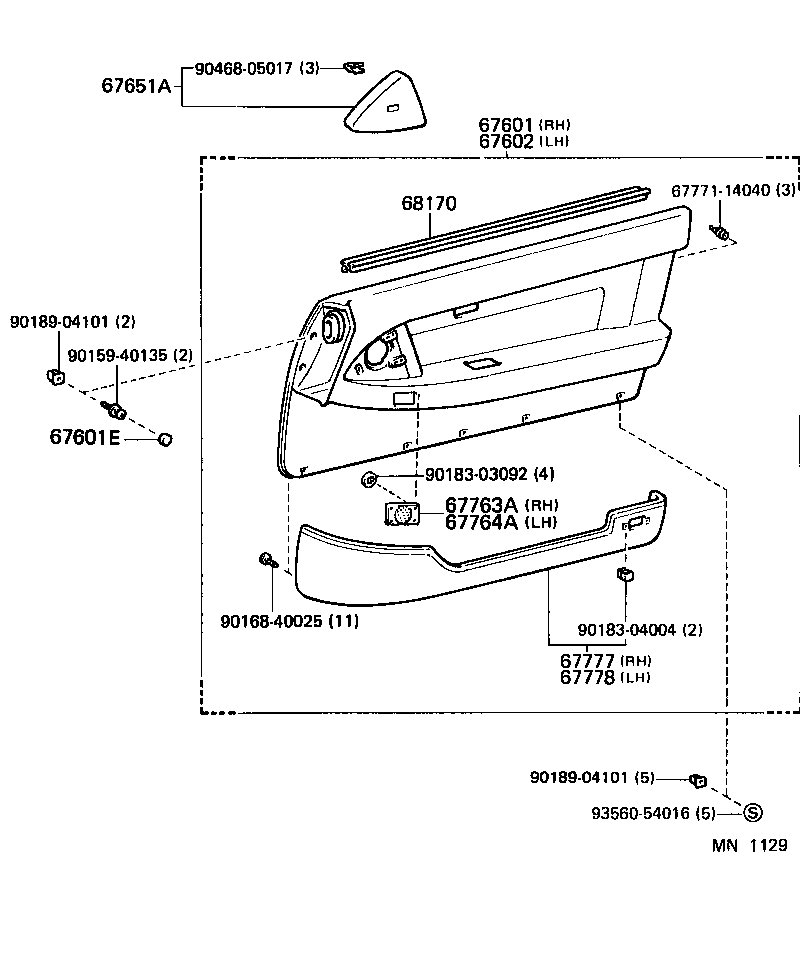

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1422103 |
GA70..G,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-1422104 |
GA70..G,GT DEEP BLUE,TRIM8# |
1 | ||
| 67650-1422102 |
GA70..G,GT MAROON,TRIM3# |
1 | ||
| 67650-1457003 |
GA70..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000114 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
4 | ||
| 90339-10001B2 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001D1 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B22102 |
GA70 MAROON,TRIM3# |
1 | ||
| 67620-1B22104 |
GA70 DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B22103 |
GA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-1D30003 |
GA70..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67652-1401103 |
GA70,MA70 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67652-1401102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3#,左側 |
1 | ||
| 67651-1401103 |
GA70,MA70 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67651-1401104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8#,右側 |
1 | ||
| 67652-1401104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8#,左側 |
1 | ||
| 67651-1401102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3#,右側 |
1 | ||
| 67763A - COVER, FRONT DOOR TRIM, LOWER RH | ||||
| 67763-1403003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67763-1403004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 67763-1403002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67764A - COVER, FRONT DOOR TRIM, LOWER LH | ||||
| 67764-1401004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 67764-1401003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67764-1401002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1405004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 67770-1405003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-1405012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-1402012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67780-1402004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 67780-1402003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-14190 |
GA70,JZA70,MA70 左側 |
1 | ||
| 68170-14220 |
GA70,JZA70,MA70 右側 |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 90159-40135 | ||||
| 90168-40025 | ||||
| 90183-03092 | ||||
| 90183-04004 | ||||
| 90189-04101 | ||||
| 90468-05017 | ||||
| 93560-54016 | ||||
