GA70-BJMVZ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1991
Engine
1GGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )1GGTEU

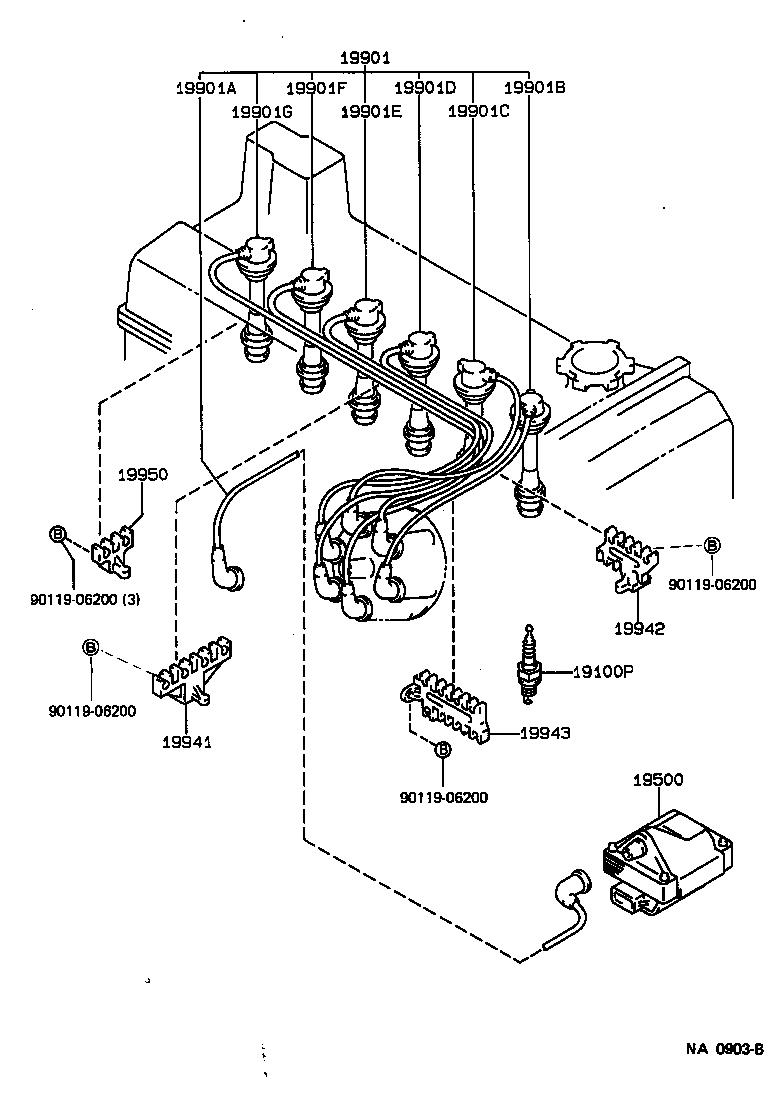

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01146 |
1GGTEU..GA70 BCPR6EP |
6 | ||
| 90919-01145 |
1GGTEU..GA70 PQ20R |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02146 |
1GGTEU..GA70 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21420 |
1GGTEU..GA70 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13291 |
1GGTEU..GA70 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12841 |
1GGTEU..GA70 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12842 |
1GGTEU..GA70 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12843 |
1GGTEU..GA70 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12844 |
1GGTEU..GA70 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12845 |
1GGTEU..GA70 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12846 |
1GGTEU..GA70 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01100 |
1GGTEU..GA70 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01143 |
1GGTEU..GA70 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 90929-01144 |
1GGTEU..GA70 |
1 | ||
| 19950 - CLAMP, RESISTIVE CORD, NO.6 | ||||
| 90929-01098 |
1GGTEU..GA70 |
2 | ||
| Common parts | ||||
| 90119-06200 | ||||
