GA70-BJMVF (1988)

Toyota Supra

Production Aug 1988 - Aug 1991
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GA70..5F

Click highlighted areas on diagram

W5#

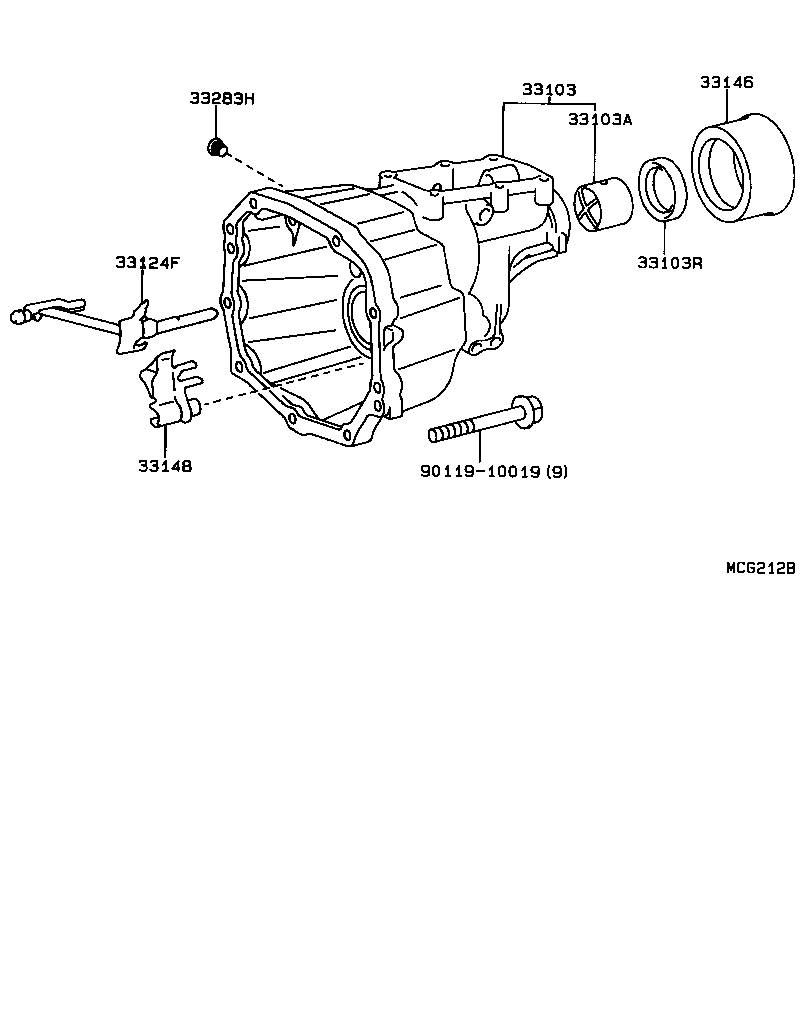

diagram 33103 33103A 33103R 33124F 33146 33148 33283H 9011910019
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22091

GA70..5F

 1
33103-14051

GA70..5F..(GT,GTT)

ｱﾘ(*66)

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73105

GA70..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

GA70..5F

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33106-22010

GA70..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

GA70,JZA70,MA70..5F

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

GA70..5F

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

GA70..5F

 2
90341-10007

GA70..5F..(GT,GTT)

ｱﾘ(*66)

 2
Common parts
90119-10019
