GA70-BJMVF (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1991
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

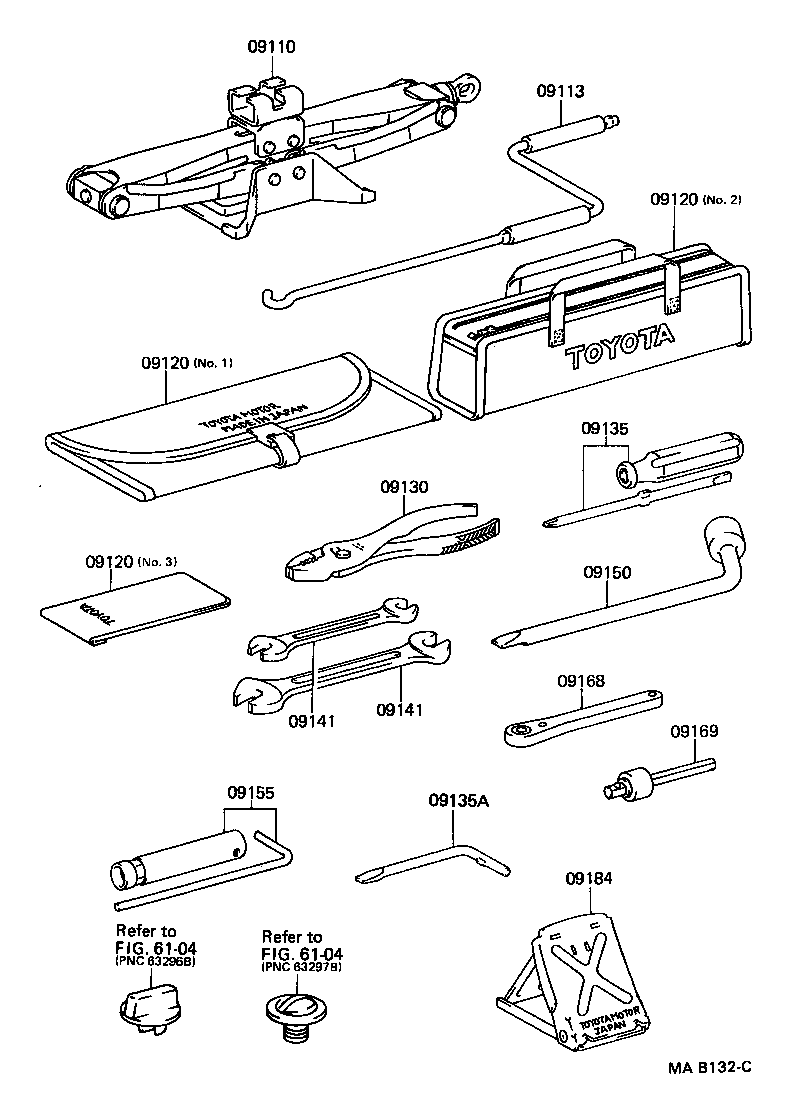

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-24030 |
GA70,JZA70,MA70 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-24020 |
GA70,JZA70,MA70 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 09120-14040 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 09120-14011 |
GA70,JZA70,MA70..AET NO.3 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 09120-14040 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 09120-14011 |
GA70,JZA70,MA70..AET NO.3 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 09120-14040 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 09120-14011 |
GA70,JZA70,MA70..AET NO.3 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
GA70,JZA70,MA70 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GA70,JZA70,MA70 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
GA70,JZA70,MA70 8 X 10 |
1 | ||
| 99914-11214 |
GA70,JZA70,MA70 12 X 14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
GA70,JZA70,MA70 8 X 10 |
1 | ||
| 99914-11214 |
GA70,JZA70,MA70 12 X 14 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
GA70,JZA70,MA70 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-00100 |
MA70;GA70..GT |
1 | ||
| 09155-74010 |
JZA70;GA70..G |
1 | ||
| 09168 - WRENCH, ROOF PANEL | ||||
| 09168-14010 |
GA70,JZA70,MA70..AET |
1 | ||
| 09169 - HANDLE, ROOF PANEL | ||||
| 09169-14010 |
GA70,JZA70,MA70..AET |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GA70,JZA70,MA70 |
1 | ||
| Linked diagrams | ||||
| 6104 | ||||
