RK111-JRP (1982)

Toyota Stout

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8507)TW

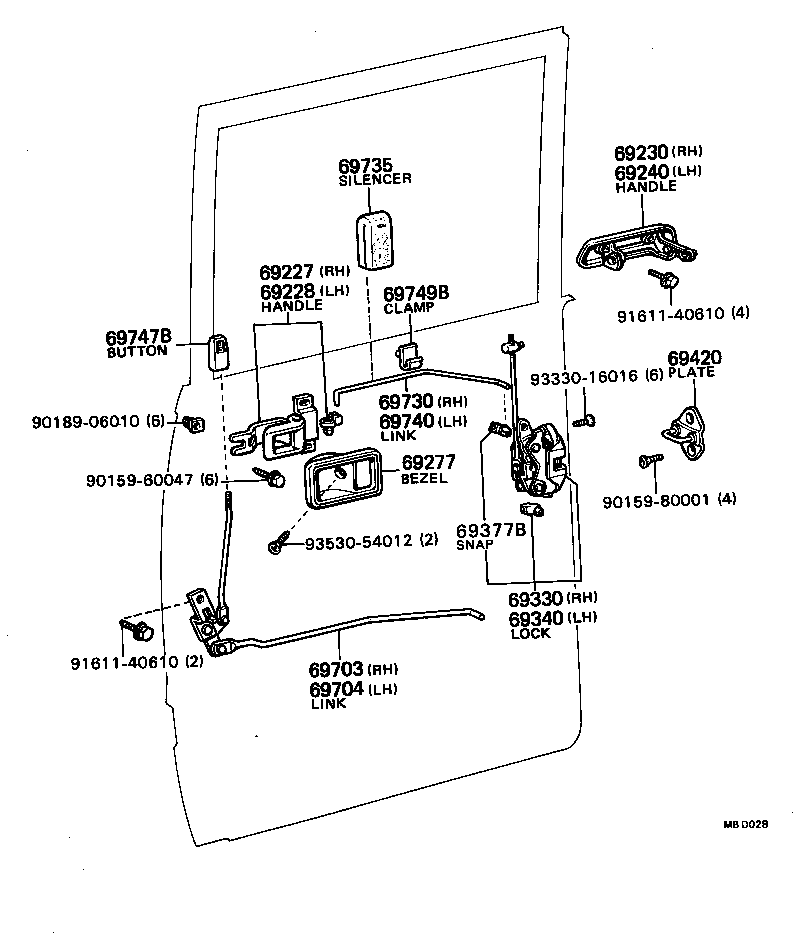

Click highlighted areas on diagram

diagram 69227 69228 69230 69240 69277 69330 69340 69377B 69420 69703 69704 69730 69735 69740 69747B 69749B 9015960047 9015980001 9018906010 9161140610 9161140610 9333016016 9353054012
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-8910305

RK111..TW

BEIGE,BEIGE

 1
69205-8910301

RK11#..TW

BLACK,BLACK

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-8910301

RK11#..TW

BLACK,BLACK

 1
69206-8910305

RK111..TW

BEIGE,BEIGE

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-89106

RK11#..TW

 1
69210-89107

RK111..TW

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-89106

RK11#..TW

 1
69220-89107

RK111..TW

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-8910301

RK11#..TW

BLACK,BLACK

 2
69276-1001205

RK111..TW

BEIGE,BEIGE

 2
69276-1001201

RK111..TW

BLACK,BLACK

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-89102

RK111..TW

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-89102

RK111..TW

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-89103

RK11#..TW

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69703-89101

RK11#..TW

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69704-89101

RK11#..TW

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-89101

RK11#..TW

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-95110

RK11#..TW

 4
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-89101

RK11#..TW

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-2002001

RK11#..TW

BLACK,BLACK

 2
69741-2002005

RK111..TW

BEIGE,BEIGE

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

RK11#..TW

 2
69749-30020

RK111..TW

 2
Common parts
90159-60047
90159-80001
90189-06010
91611-40610
93330-16016
93530-54012
