RK111-JRH (1982)

Toyota Stout

Production Jan 1982 - Mar 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8604)

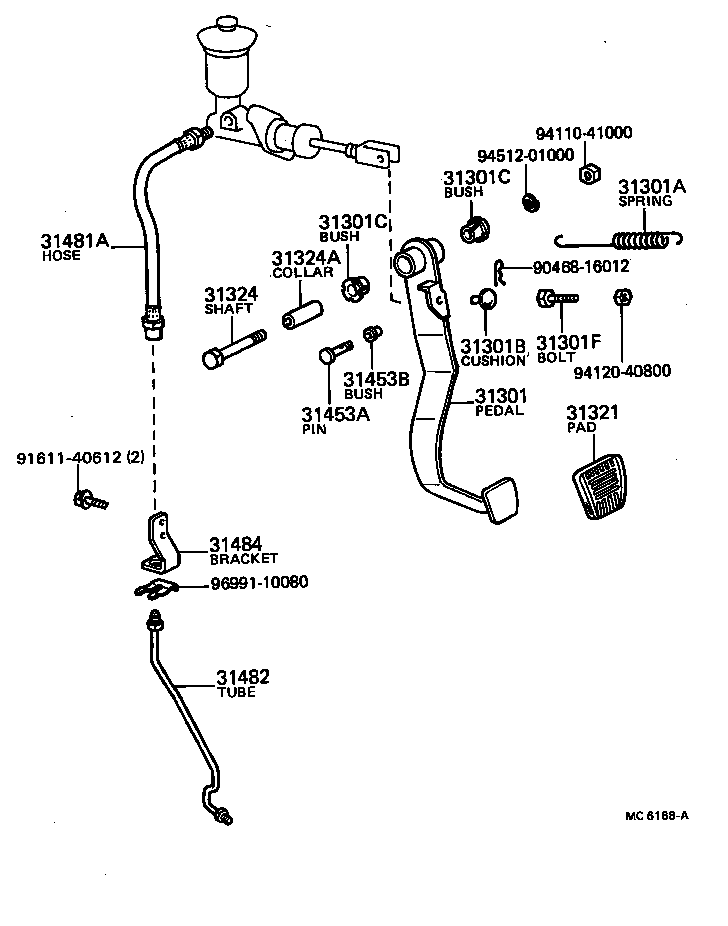

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 31481A 31482 31484 9046816012 9161140612 9411041000 9412040800 9451201000 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35100

RK11#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14019

RK11#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RK11#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RK11#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RK11#

 2
31321 - PAD, CLUTCH PEDAL
31321-14010

RK11#

 1
31321-14020

RK111

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

RK11#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

RK11#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

RK11#

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

RK11#

 1
31481A - HOSE, CLUTCH, NO.1
96910-33104

RK11#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25050

RK11#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35100

RK11#

 1
Common parts
90468-16012
91611-40612
94110-41000
94120-40800
94512-01000
96991-10080
