RK111-JR3 (1982)
Toyota Stout
Production
Jan 1982
-
Jul 1985
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8405)T1

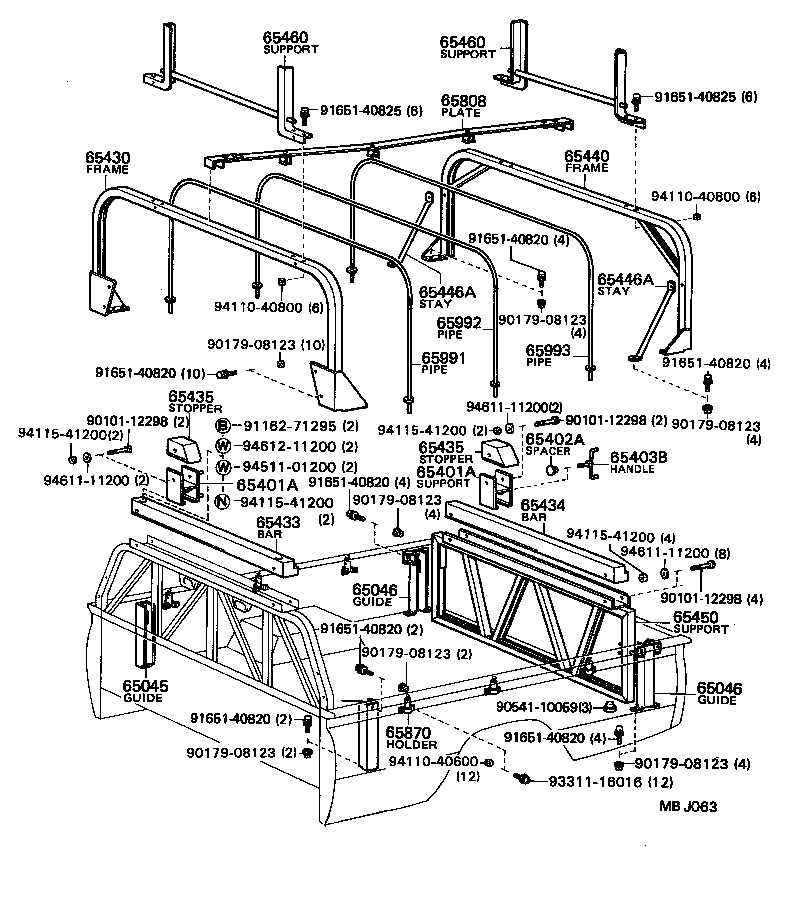

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65440 - FRAME ASSY, TOP & CURTAIN SUPPORT, REAR | ||||
| 65440-92300 |
RK111..TW;RK111..175 |
1 | ||
| Common parts | ||||
| 90101-12298 | ||||
| 90179-08123 | ||||
| 90541-10059 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93311-16016 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94611-11200 | ||||
(8405- )T1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65440 - FRAME ASSY, TOP & CURTAIN SUPPORT, REAR | ||||
| 65440-92300 |
RK111..TW;RK111..175 |
1 | ||
| Common parts | ||||
| 90101-12298 | ||||
| 90179-08123 | ||||
| 90541-10059 | ||||
| 91162-71295 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93311-16016 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||
| 94611-11200 | ||||
| 94612-11200 | ||||
