RK111-JR3 (1982)

Toyota Stout

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8507)TW ; (7903-8507)175

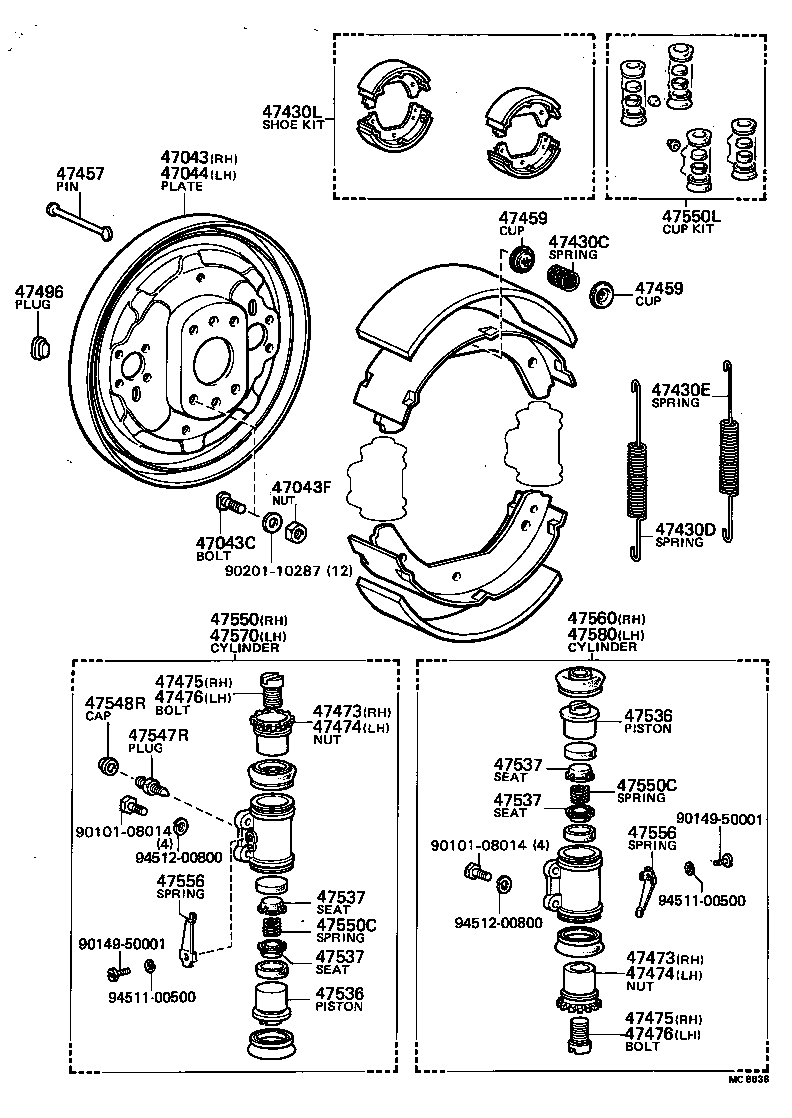

Click highlighted areas on diagram

diagram 47043 47043C 47043F 47044 47430C 47430D 47430E 47430L 47457 47459 47459 47473 47473 47474 47474 47475 47475 47476 47476 47496 47536 47536 47537 47537 47537 47537 47547R 47548R 47550 47550C 47550C 47550L 47556 47556 47560 47570 47580 9010108014 9010108014 9014950001 9014950001 9020110287 9451100500 9451100500 9451200800 9451200800
Part # Description Qty Price
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-25060

RK11#..TW;RK11#..175

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-35011

RK111..TW;RK111..175

*10−1.25PX23−13

 12
42184-35010

RK11#..TW;RK11#..175

 12
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94110-71000

RK11#

 12
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-25030

RK11#..TW;RK11#..175

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20756

RK11#..TW;RK11#..175

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26009

RK11#..TW;RK11#..175

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26009

RK11#..TW;RK11#..175

 2
47430L - SHOE KIT, REAR BRAKE
04496-25020

RK11#..TW;RK11#..175

REBUILT

 1
04494-25020

RK11#..TW;RK11#..175

 1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20010

RK11#..TW;RK11#..175

 4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

RK11#

 8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

RK11#

 8
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47551-36061

RK11#

LH SCREW

 2
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47551-36061

RK11#

LH SCREW

 2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47552-36061

RK11#

RH SCREW

 2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47552-36061

RK11#

RH SCREW

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-36021

RK11#

LH SCREW

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-36021

RK11#

LH SCREW

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-36021

RK11#

RH SCREW

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-36021

RK11#

RH SCREW

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-36010

RK11#

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-60010

RK11#..TW;RK11#..175

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-60010

RK11#..TW;RK11#..175

 4
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

RK11#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

RK11#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

RK11#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

RK11#

 8
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-12010

RK11#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

RK11#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-29156

RK11#..TW;RK11#..175

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-10759

RK11#

 4
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-10759

RK11#

 4
47550L - CUP KIT, REAR WHEEL CYLINDER
04906-36030

RK11#

 1
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020

RK11#

 4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020

RK11#

 4
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-29036

RK11#..TW;RK11#..175

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-29036

RK11#..TW;RK11#..175

 1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-29036

RK11#..TW;RK11#..175

 1
Common parts
90101-08014
90149-50001
90201-10287
94511-00500
94512-00800
